G’Day,

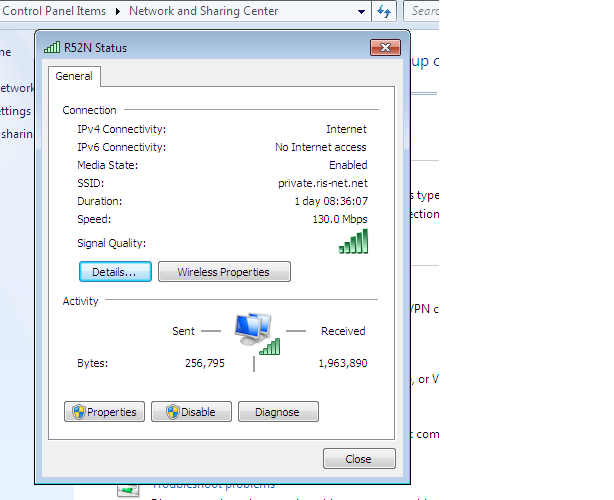

I have just purchased my first RB, and so far, its working great - the only issue is the WIFI connection speed that clients are seeing. The highest speed that anyone can seem to connect at is 130mbs. The test client system actually has a R52n in it, but have also tested with ASUS systems and a a belkin wifi router - so I know the client systems can connect at 300mbs - and the specs for the R52Hn say I should be able to achieve this setup.
If someone could please have a look over this config? With luck im just missing something simple. I have tried this at 5GHz N only, 2.4 N only and every other combination…
/interface wireless export
/interface wireless security-profiles
set default authentication-types=“” eap-methods=passthrough group-ciphers=“”
group-key-update=5m interim-update=0s management-protection=disabled
management-protection-key=“” mode=none name=default
radius-eap-accounting=no radius-mac-accounting=no
radius-mac-authentication=no radius-mac-caching=disabled
radius-mac-format=XX:XX:XX:XX:XX:XX radius-mac-mode=as-username
static-algo-0=none static-algo-1=none static-algo-2=none static-algo-3=
none static-key-0=“” static-key-1=“” static-key-2=“” static-key-3=“”
static-sta-private-algo=none static-sta-private-key=“”
static-transmit-key=key-0 supplicant-identity=MikroTik tls-certificate=
none tls-mode=no-certificates unicast-ciphers=“” wpa-pre-shared-key=“”
wpa2-pre-shared-key=“”
add authentication-types=wpa-psk,wpa2-psk group-ciphers=aes-ccm
group-key-update=5m interim-update=0s management-protection=allowed
management-protection-key=XXXXXXXXXXXXXXXXXX mode=dynamic-keys name=aesccm
radius-eap-accounting=no radius-mac-accounting=no
radius-mac-authentication=no radius-mac-caching=disabled
radius-mac-format=XX:XX:XX:XX:XX:XX radius-mac-mode=as-username
static-algo-0=none static-algo-1=none static-algo-2=none static-algo-3=
none static-key-0=“” static-key-1=“” static-key-2=“” static-key-3=“”
static-sta-private-algo=none static-sta-private-key=“”
static-transmit-key=key-0 supplicant-identity=“” tls-certificate=none
tls-mode=no-certificates unicast-ciphers=aes-ccm wpa-pre-shared-key=
XXXXXXXXXXXXXXXXXX wpa2-pre-shared-key=XXXXXXXXXXXXXXXXXXXXXXXXX
/interface wireless
set 0 ack-timeout=dynamic adaptive-noise-immunity=ap-and-client-mode
allow-sharedkey=no antenna-gain=0 area=“” arp=enabled band=2ghz-onlyn
basic-rates-a/g=54Mbps basic-rates-b=1Mbps,2Mbps,5.5Mbps,11Mbps comment=
“” compression=yes country=australia default-ap-tx-limit=0
default-authentication=yes default-client-tx-limit=0 default-forwarding=
yes dfs-mode=none disable-running-check=no disabled=no
disconnect-timeout=3s frame-lifetime=0 frequency=2442 frequency-mode=
manual-txpower hide-ssid=no ht-ampdu-priorities=0,1,2,3,4,5,6,7
ht-amsdu-limit=8192 ht-amsdu-threshold=8192 ht-basic-mcs=“mcs-0,mcs-1,mcs-
2,mcs-3,mcs-4,mcs-5,mcs-6,mcs-7,mcs-8,mcs-9,mcs-10,mcs-11,mcs-12,mcs-13,mc
s-14,mcs-15” ht-extension-channel=above-control ht-guard-interval=any
ht-rxchains=0,1 ht-supported-mcs=“mcs-0,mcs-1,mcs-2,mcs-3,mcs-4,mcs-5,mcs-
6,mcs-7,mcs-8,mcs-9,mcs-10,mcs-11,mcs-12,mcs-13,mcs-14,mcs-15”
ht-txchains=0,1 hw-fragmentation-threshold=disabled hw-protection-mode=
none hw-protection-threshold=0 hw-retries=15 l2mtu=2290 mac-address=
00:1D:0F:BB:8C:66 max-station-count=2007 mode=ap-bridge mtu=1500 name=
wlan1 on-fail-retry-time=100ms periodic-calibration=disabled
periodic-calibration-interval=60 preamble-mode=both
proprietary-extensions=post-2.9.25 radio-name=001D0FBB8C66 rate-set=
default scan-list=default security-profile=aesccm ssid=
private.ris-net.net station-bridge-clone-mac=00:00:00:00:00:00
supported-rates-a/g=6Mbps,9Mbps,12Mbps,18Mbps,24Mbps,36Mbps,48Mbps,54Mbps
supported-rates-b=1Mbps,2Mbps,5.5Mbps,11Mbps tx-power-mode=default
update-stats-interval=disabled wds-cost-range=50-150 wds-default-bridge=
none wds-default-cost=50 wds-ignore-ssid=no wds-mode=disabled
wmm-support=enabled
/interface wireless manual-tx-power-table
set wlan1 comment=“” manual-tx-powers=“1Mbps:17,2Mbps:17,5.5Mbps:17,11Mbps:17,
6Mbps:17,9Mbps:17,12Mbps:17,18Mbps:17,24Mbps:17,36Mbps:17,48Mbps:17,54Mbps
:17,HT20-0:0,HT20-1:0,HT20-2:0,HT20-3:0,HT20-4:0,HT20-5:0,HT20-6:0,HT20-7:
0,HT40-0:0,HT40-1:0,HT40-2:0,HT40-3:0,HT40-4:0,HT40-5:0,HT40-6:0,HT40-7:0”
/interface wireless nstreme
set wlan1 comment=“” disable-csma=no enable-nstreme=no enable-polling=no
framer-limit=3998 framer-policy=best-fit
/interface wireless align
set active-mode=yes audio-max=-20 audio-min=-100 audio-monitor=
00:00:00:00:00:00 filter-mac=00:00:00:00:00:00 frame-size=300
frames-per-second=25 receive-all=no ssid-all=no
/interface wireless sniffer
set channel-time=200ms file-limit=10 file-name=“” memory-limit=10
multiple-channels=no only-headers=no receive-errors=no streaming-enabled=
no streaming-max-rate=0 streaming-server=0.0.0.0
/interface wireless snooper
set channel-time=200ms multiple-channels=yes receive-errors=no
Any help would be greatly appreciated.
Regards,
Jake
