Hello, (after searching forum- sorry if covered already)
i have Hex working well, and am trying to add LTE Failover. Connecting LtAP mini i can see the LTE but can not manage in capsman, or missing routing over to working hex?? LTE is running.
LTE Failover… ? What other you have WAN?
Failover is setup in IP>Routes, not in capsman
Hello Sib,
i do not believe i have any other infrastructure on the wan except user devices. i removed the cAPsMan. It is now set to LTE AP.

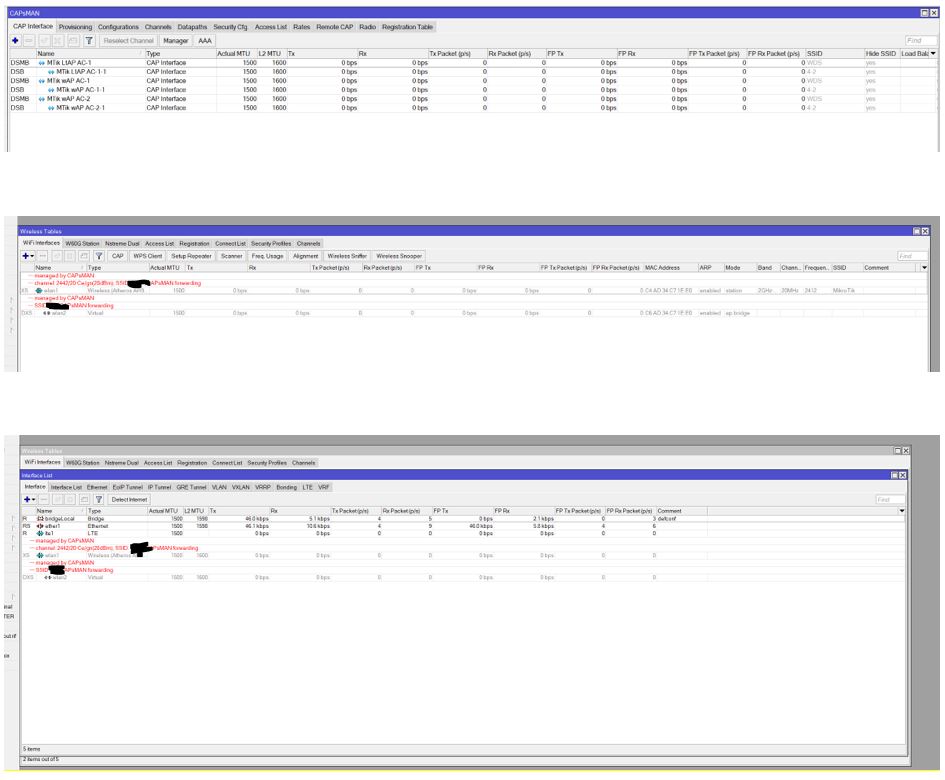

MTik-Hex(750G r3)—> MTik switch---->new Ltap Mini US kit.

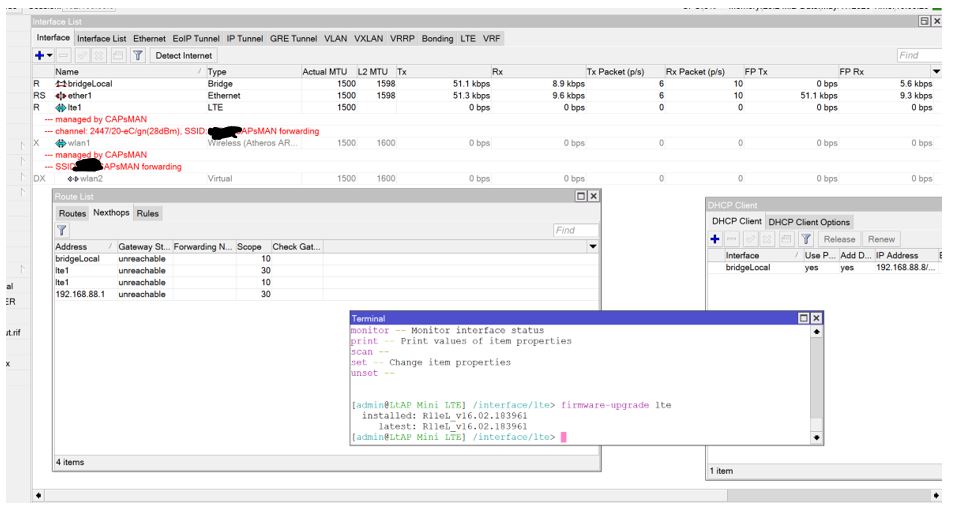

As of now i have hEX routes giving IP 192.168.88.8- over to LtAP mini. LtAP has IP, and gives out DHCP of 192.168.8.0/24. The LTE route is not “R” running. [i see you have already given options to fix, i’m working on those] and NAT out-interface masquerade of LTE. I have no other setups in LtAP.
Thank you for your help.
I understand you have that setup, like this:
LtAP WAN: lte1 who should be connected as Running and APN settigns should have “Add Defauld Route”. At NAT of course SNAT/Masquarade.
LtAP LAN: can be setup the dhcp-client but “Add Defauld Route”=no bcs the internet should be grab from lte1 interface
… cable switches poe etc…
Hex WAN=LAN: all ports are connected into one bridge with one big dhcp-server. You should make static IP to LtAP LAN IP and setup for you and all your dhcp clients that LtAP LAN IP is a default gateway.
That way it’s will be works.
Normal situation is like this:
LtAP wan: grab internet from lte1
LtAP lan: have dhcp-server with e.g. 192.168.88.0/24 and give this his internet to anyone who connect to him
… switch with vlan-wan to separate wan from lan … poe, cables. etc… …
hex wan: just receive internet from ltap as regular dhcp-client at dedicate wan port and do regular job at all other ports like ether2-5+wifi etc. to home devices…
I hope that idea schema will give you some clue about how to works.
Alright, thanks. Here is the current LtAP setup.----------------------------------------------------------------------------------------------------------------------------------
[admin@MTik LtAP LTE] > export compact hide-sensitive
may/22/2020 08:58:55 by RouterOS 6.47beta60
software id = 02W3-QHMD
model = RB912R-2nD
serial number = C477XXXXXXXX
/interface lte
set [ find ] name=lte1
/interface bridge
add name=bridge1
/interface wireless
managed by CAPsMAN
channel: 2442/20-Ce/gn(28dBm), SSID: WDS, CAPsMAN forwarding
set [ find default-name=wlan1 ] country="united states3" mode=ap-bridge ssid=MikroTik wireless-protocol=802.11
/interface ethernet
set [ find default-name=ether1 ] name=ether-LAN2
/interface list
add name=WAN2
add name=LAN
/interface lte apn
set [ find default=yes ] apn=h2g2 ip-type=ipv4-ipv6 name="Google FI"
/interface wireless security-profiles
set [ find default=yes ] supplicant-identity=MikroTik
add authentication-types=wpa-psk,wpa2-psk disable-pmkid=yes eap-methods="" management-protection=allowed mode=dynamic-keys name=
XXXX supplicant-identity=""
add authentication-types=wpa-psk,wpa2-psk disable-pmkid=yes eap-methods="" management-protection=allowed mode=dynamic-keys name=
XXXX supplicant-identity=""
/ip dhcp-server
add name=defconf
/ip hotspot profile
set [ find default=yes ] html-directory=flash/hotspot
/ip pool
add name=dhcp_pool1 ranges=10.10.11.0/30
/ip dhcp-server
add address-pool=dhcp_pool1 disabled=no interface=bridge1 lease-time=1d10m name=dhcp1
/user group
set full policy=local,telnet,ssh,ftp,reboot,read,write,policy,test,winbox,password,web,sniff,sensitive,api,romon,dude,tikapp
/interface bridge port
add bridge=bridge1 interface=ether-LAN2
add bridge=bridge1 interface=wlan1
/interface detect-internet
set detect-interface-list=all internet-interface-list=all lan-interface-list=all wan-interface-list=all
/interface list member
add interface=lte1 list=WAN2
add interface=bridge1 list=LAN
/interface wireless cap
set certificate=request discovery-interfaces=bridge1 enabled=yes interfaces=wlan1 lock-to-caps-man=yes
/ip address
add address=10.10.11.0/24 interface=lte1 network=10.10.11.0
/ip dhcp-client
add add-default-route=no disabled=no interface=bridge1
/ip dhcp-relay
add dhcp-server=192.168.88.1 disabled=no interface=wlan1 name=relay1
/ip dhcp-server network
add address=192.168.6.0/24 gateway=192.168.6.1
/ip dns
set servers=192.168.88.1
/ip firewall filter
add action=accept chain=input protocol=icmp
add action=accept chain=input connection-state=established
add action=accept chain=input connection-state=related
add action=drop chain=input in-interface-list=!LAN
/ip firewall nat
add action=masquerade chain=srcnat out-interface=lte1
set ftp disabled=yes
set www disabled=yes
set ssh disabled=yes
set api disabled=yes
set winbox port=XXXX
set api-ssl disabled=yes
/system clock
set time-zone-name=America/New_York
/system identity
set name="MTik LtAP LTE"
/system logging
add disabled=yes topics=lte
/system routerboard settings
set init-delay=5s
/tool mac-server
set allowed-interface-list=LAN
/tool mac-server mac-winbox
set allowed-interface-list=LAN
/tool romon
set enabled=yes
[admin@MTik LtAP LTE] >
\
The LTE is now running. I had to downgrade from 7.0vb to 6.47v60 for the LTE to "R" run. i was able to let cAPsMan run the single wifi, as i setup the LTE side.
LTE has no interface,
That part is to correction. This give us information that you try not standard / default configuration and you do a mix of few stuff.
You should reconfigure it.
DHCP server share pool with other IP address then dhcp-network.
You do a dhcp-client at cable and wifi by bridge.
You do a dhcp-relay.
You do a capsman at that bridge.
ReThink what and why you do that. Read again my prev. post.
The LTE is now running. I had to downgrade from 7.0vb to 6.47v60 for the LTE to "R" run. i was able to let cAPsMan run the single wifi, as i setup the LTE side.
LTE has no interface,
Start use ENTER key to separate one sentence from other.
Then LTE is running or not ? ReWrite that sentence.

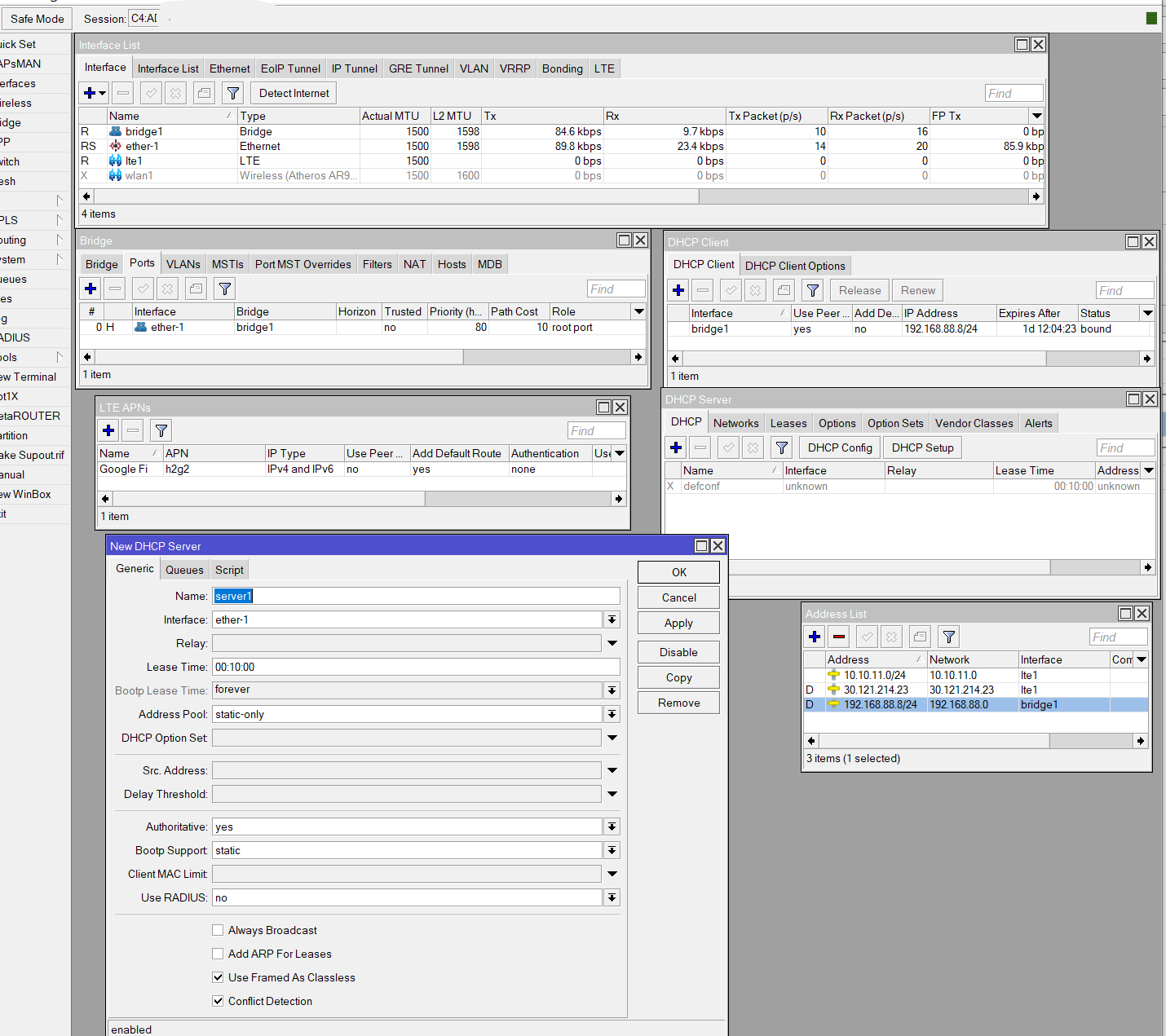

LTE is Running. Sorry. i am trying to setup the DHCP client and server. LTE interface does not come up. I have tried making VLAN’s or bridging to use LTE as dhcp server. Any bridging I change LTE with kills LTE. No longer running. This is the basic setup now.
Thanks,
Next screenshot after export not do any think.
I thinks I repeat that part with comments:
LtAP WAN:
/ip address add address=10.10.11.0/24 interface=lte1 network=10.10.11.0
This is ERROR, why you add that IP address at lte1 interface ? This should be receive from ISP automatical. Even if you have Public IP then you must receive it automatical, not just put it here.
LtAP LAN:
/interface bridge port
add bridge=bridge1 interface=ether-LAN2
add bridge=bridge1 interface=wlan1
Wlan1 and ether1 create you your LAN.
/ip dhcp-client add add-default-route=no disabled=no interface=bridge1
You grab network settings for LtAP and wifi clients from main router.
/ip pool add name=dhcp_pool1 ranges=10.10.11.0/30
/ip dhcp-relay add dhcp-server=192.168.88.1 disabled=no interface=wlan1 name=relay1
/ip dhcp-server network add address=192.168.6.0/24 gateway=192.168.6.1
Why you have a dhcp-server when he not should be used!
Why you use dhcp-relay when you bridge before two interface ?
That part is wrong.
And.
I write you two scenario - you not write any think about them, just give me export.
I write you comments to export - you give me a screenshot.
I don’t have idea how to speak with you.
Next screenshot after export not do any think.
I thinks I repeat that part with comments:
Yes, i was trying to understand the set up you were recommending. I am novice.
LtAP WAN:
/ip address add address=10.10.11.0/24 interface=lte1 network=10.10.11.0
This is ERROR, why you add that IP address at lte1 interface ? This should be receive from ISP automatical. Even if you have Public IP then you must receive it automatical, not just put it here.
I changed this, there is no address now, only the ISP
LtAP LAN:
/interface bridge port
add bridge=bridge1 interface=ether-LAN2
add bridge=bridge1 interface=wlan1
Wlan1 and ether1 create you your LAN.
This explained what i was doing wrong. I was attempting to set up 2 working mikrotik routers. It was a guess only.
/ip dhcp-client add add-default-route=no disabled=no interface=bridge1
You grab network settings for LtAP and wifi clients from main router.
This also allowed me to stop over thinking LTE AP, not mikrotik router. Just AP
/ip pool add name=dhcp_pool1 ranges=10.10.11.0/30
/ip dhcp-relay add dhcp-server=192.168.88.1 disabled=no interface=wlan1 name=relay1
/ip dhcp-server network add address=192.168.6.0/24 gateway=192.168.6.1
Why you have a dhcp-server when he not should be used!
Why you use dhcp-relay when you bridge before two interface ?
That part is wrong.
Removed all, and it now works. Thank you.
And.
I write you two scenario - you not write any think about them, just give me export.
Because i was attempting to understand your configuration and build another router. That was my mistake.
Only AP.
I write you comments to export - you give me a screenshot.
An attempt to clarify what i was seeing and attempting
I don’t have idea how to speak with you
. >
> Again, your help has fixed my issue. The LTE AP is now working on a failover. I can not say thank you enough. You cleared up my mix up.
It is working well now. Thank you for your help.
MikroTik ROS try do re-connect all time.
If your lte module support commands like “at+reset” then you can trigger reconnection.
Power off the USB power feature works longest.
Disable and Enable lte1 interface is a universal way.
I hope that helps.
It helps. Thank you for educating me on this!!
I may be back with other questions.
