MAC Authentication with external radius server

Hi,

When i device connects to my wifi, how do I get the router to check the MAC (as user and pwd) against my radius server.

I currently have a working hotpot system using HTTP PAP, with an external login page, redirected from login.html. But if the user is already setup in the radius server (for example a white listed MAC) it does not check against the radius when they connect, it sends them to the landing page, which at that point i have to use HTTP PAP to login them in. Then it works. I don’t want them to end up at the landing page if the radius server has the MAC already authorized.

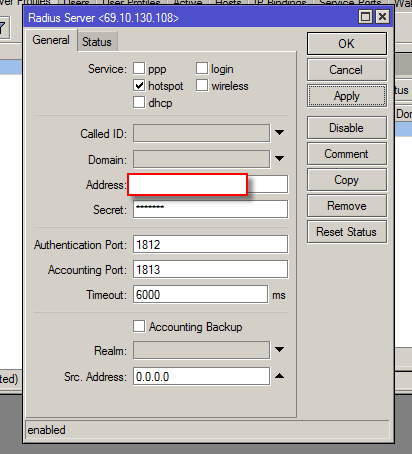

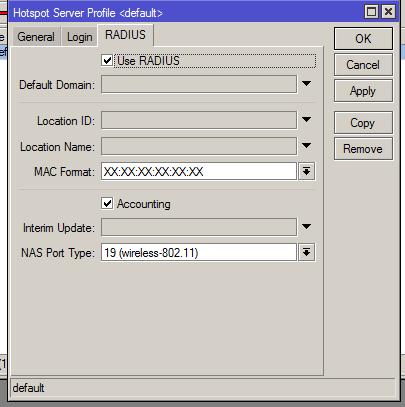

Below is my setup.

Any idea?

Kim

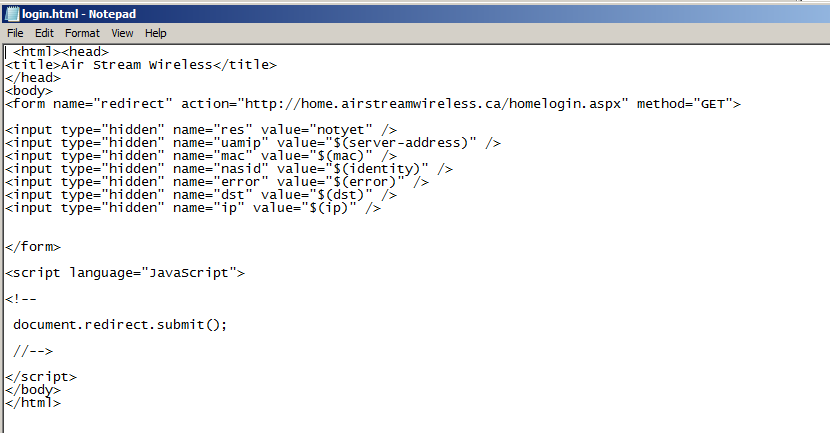

My login.html content.
