i have rb951ui-2hnd and i wanted to configure management protection on security profiles , the problem is when i choose ruqired and set the key , my windows laptop or my android device can’t connect to the network , my android devices and my windows already support protected management frames
can any body help me ??
Sorry never heard of management protection frames… Is that some setting?
Why is it required, no reasons provided.
Typically All smart devices are on a management subnet and usually in conjuction with vlans.
Vlans make sense when dealing with multiple wifi networks required even just two home and guest.

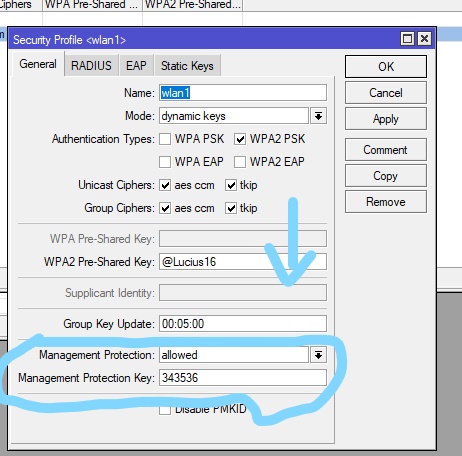

i attach an image
RouterOS wifi implementation has many features that are not fully documented.
In most cases reading the RFC’s (IEEE 802.11w-2009) or the big-player (eg Cisco) documentation has more information. Like: https://www.cisco.com/c/en/us/support/docs/smb/wireless/cisco-small-business-100-series-wireless-access-points/smb5302-configure-management-frame-protection-mfp-on-a-wireless-acce.html
Management frame protection is to protect the AP-client connection from disassociation by some (malicious) other device. https://en.wikipedia.org/wiki/Wi-Fi_deauthentication_attack
That forced disassociation gives denial of service and is sometimes used to have more associations that can then be sniffed and analysed.
On MT setting frame protection to allow works fine with all connections.
With frame protection set to required, some connections fail, if the secret is not set, but even if the shared secret is correct.
Just tested shortly between MT devices in PtP, and now the setting stays on ‘allowed’ until further need.

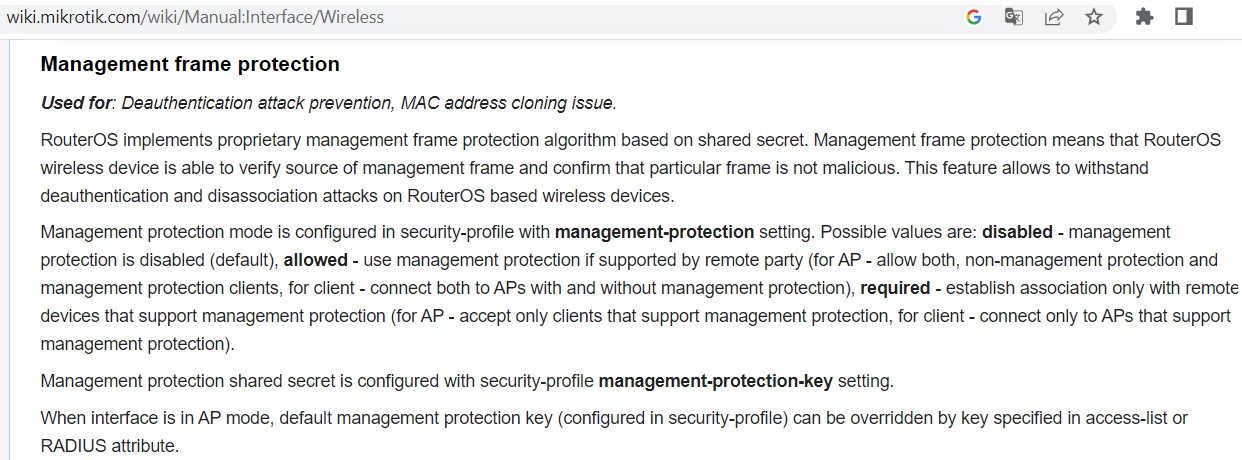

MT docs say …
I would also like to use the frame protection on a CAPsMAN environment.
Some devices are beeing attacked via a deauth device I guess and I want to use the frame protection on the HAPac devices beeing managed via CAPsMAN.
As the setting is not present in the capsman security profiles, I’d like to know how I can protect from this kind of attacks.
