Map2n boot firmware and various issues

Hardware MikroTik hardware general
1

normally the boot firmware is on routerboard.com, i don’t see it for the MAP?


activity indicators for the Lan ports are a joke, they are about 5 seconds behind, even on a link establishment

then blink 5 seconds behind at a steady pace

the wireless LED activity indicator does not have this problem

found another bug

6.19

make eth 1 master, eth 2 slave, only plug a cable into eth 2, and eth 1 lights up and show a link status in winbox 10 mbit

very weird, reversing does not do the same thing, eth 2 will not light up, supout sent to mikrotik



also can the poe out be used, when usb is supplying (2 amps behind) or does it not have a boost circuit?

also when attempting to use POE out for a picostation, forced on was required to boot the pico up, it was blinking weird on auto on, also showed no link

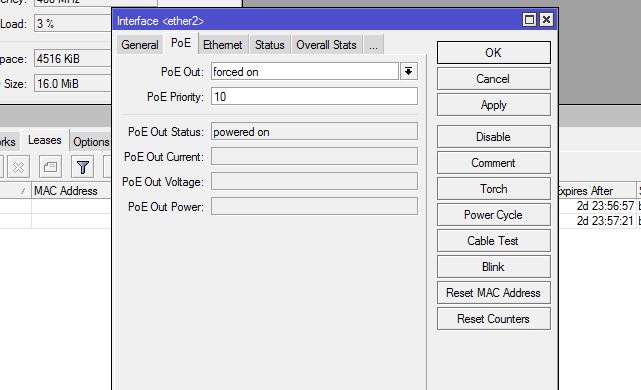

also should i be seeing values in the below picture or just powered on?

v6.19 released
2

CPU = Qualcomm Atheros AR9331 400 MHz

MIPS-BE - http://www.mikrotik.com/download

3

uh yea? im looking for the boot firmware, not the main code

4

RouterBOOT is always in the RouterOS “RouterBOARD” package. If you have an up to date RouterOS, simply run “/system RouterBOARD upgrade”.

The FWF file is only important to devices with COM ports (but they can also upgrade with the mentioned command)

5

ok an answer to any of the other questions?

6

via USB you can power only connected board, PoE-out is not available.

7

how about the missing POE values in the screen shot?

8

it is not capable of showing power consumption.

only option is status, where you can see if connected device is powered on, or other internal statuses of PoE-Out
