Master LHG 60G dish wont get ip from domain

RouterOS General
1

Hi,

I’m hoping someone can help me, please?
I have a pair of LHG 60G dishes preconfigured from MikroTik, one is the master set to bridge and the other is a slave set to station bridge.
The station bridge I could set address to automatic and it found an IP on my domain and then I could update the firmware.

However the bridge dish will not pick up an address, it just does nothing. So I tried changing the IP address in static and setting my gateway and dns servers but still no joy.

Hoping someone can help me please as they should both be on the same domain really.

Thanks
Ian

2

Are you sure there is a successfull connection between the antennas ?

3

Hi,

Why do you ask this, yes because I can connect to the bridge and see the signal and also I’m sat at our other factory and receiving broadband etc from the main factory over these dishes.

Also our data is stored at the main factory and I can see servers etc to.

Ian

4

I ask this because as you said the Antenna will not get an IP Address neither from your DHCP or even if set statically there it no communication with your LAN…
Since there is a connection as you said i would check for configuration mistakes in both the Antenna and your LAN…
Does the DHCP of the router for example offers a lease to the Antenna ? No ? Does the log say anything ?
Most likely there is a problem inside your local network and not the antenna itself…

5

But the master picked it up?

Do they have to be on your plan? All I want to do is to update the firmware?

Thanks

Ian

6

Did you try to debug this through the atenna?
Can you ping the router from the antenna ? If no do you get a timeout ? No route?
Can you Ping the Master antenna ?
Are both sides in the same Layer 2 network?
You have only 1 DHCP server in your network right ?

7

So my answers in order as below order of your questions.

  1. Sorry, do not understand.
  2. Cannot ping 192.168.160.100 which is the router, I get a timeout and no route to host.
    3 Same cannot ping 192.168.160.166 which is the slave antenna. The master is a the one not picking up the IP address.
  3. Do not know what you mean by the same layer 2 network? But I would assume so.
  4. Definitely only 1 DHCP server.

The master is set to bridge and the slave is set to station bridge? Is this correct?

Thanks

8

Cannot ping 192.168.160.100 which is the router, I get a timeout and no route to host.

Are you sure you have configured the IP Address correctly ?
Can you export the IP address and Routes config so i can see it ?

9

Hi,

These are screen shots, not sure how I export them?

Thanks.

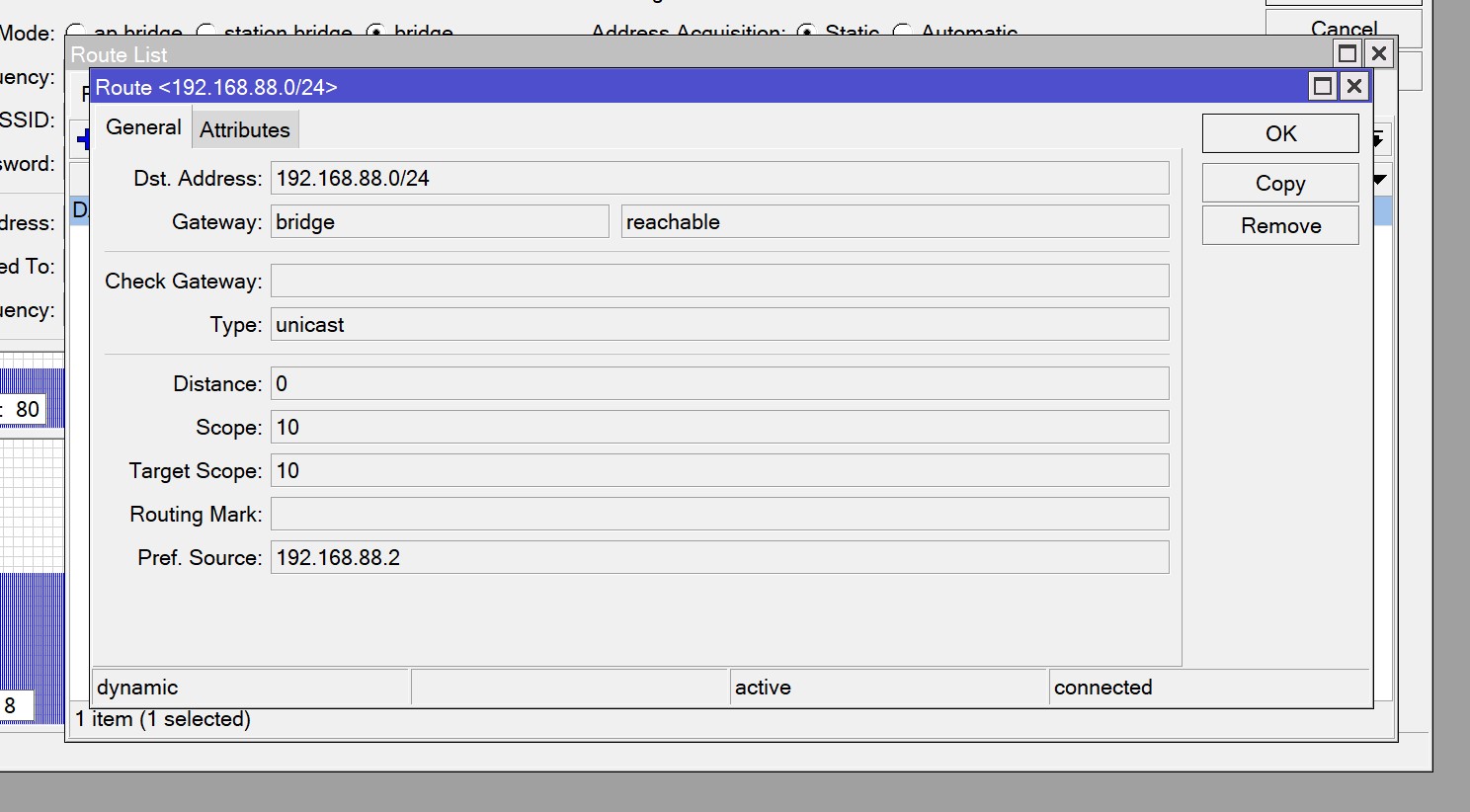

Annotation 2020-03-24 102400.jpg

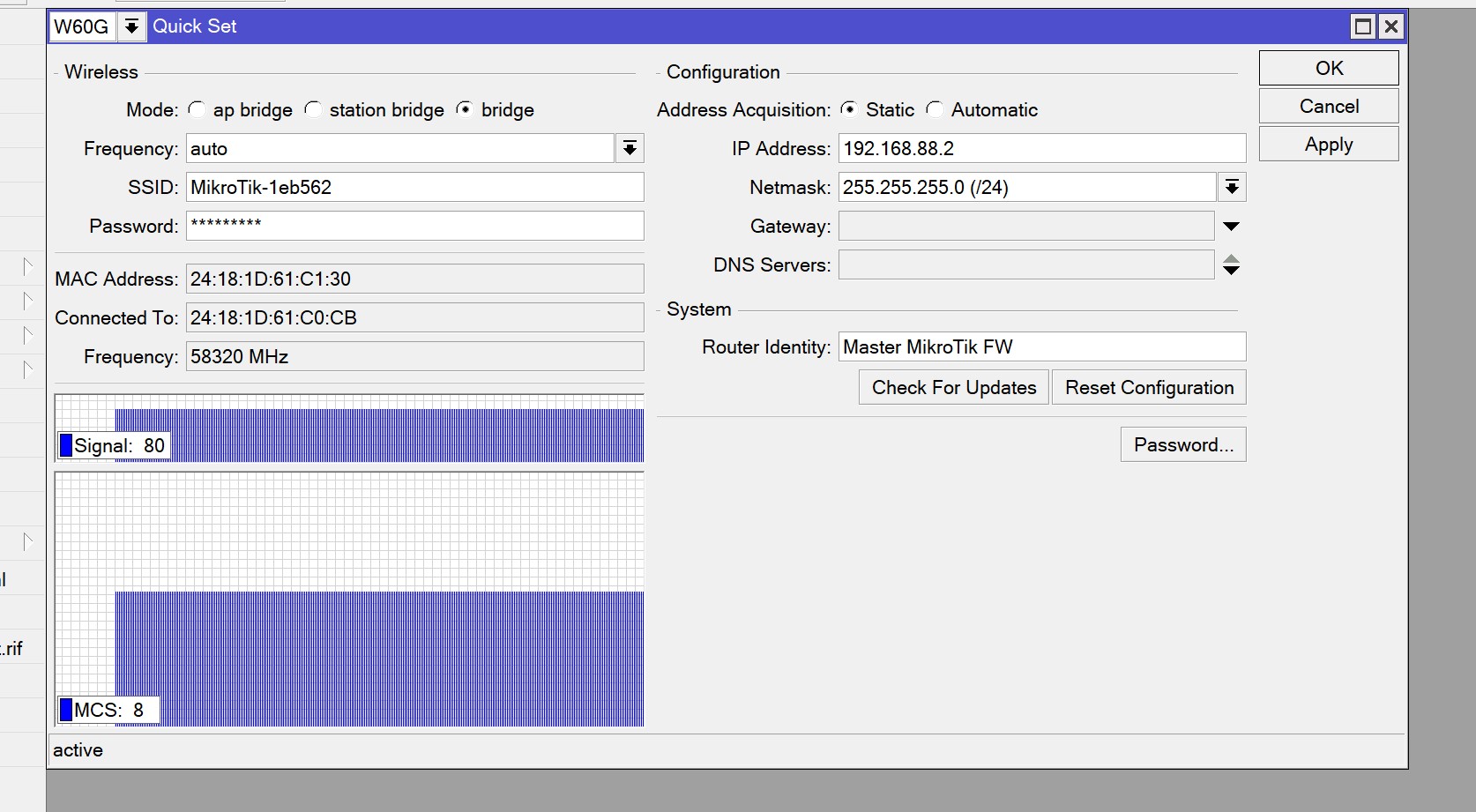

Annotation 2020-03-24 102428.jpg

10

How can you possibly ping 192.168.160.100 when your Antenna has the 192.168.88.2 address ?
Change it to 192.168.160.X , where X must not be used from another device in your network and add your Gateway/DNS 192.168.160.100…

11

HI,
That’s what I have been asking in my first original question.

It won’t let me change the IP. I am choosing auto and nothing and then I’m typing in myself and it changes back.

See my first original post, please.

Thanks

Ian

12

I read your first post again, you never say it changes back to 192.168.88.2… you dont use safe mode right ?
If you are familiar with winbox try to change the IP from there…

13

Im not in safe mode and I am trying to change in Winbox.

Thanks

14

Just to mention, it is not a good idea to use Quickset for an already configured Device…
It is wrong…
Also it is not that difficult to change an IP :smiley:

15

What you mean its not that difficult to change an IP, I know its not but its not letting me join my domain like the slave dish did? Now I have both my dishes on 2 different firmware?

Thanks

Ian
