hi
how many ap-wds (repeater) is supported by R52HNd?
i added only 4 ap in wds mode and then internal ping goes up to 2500 ms!!!
when only 1 ap is connected in wds mode ping is 2 ms
what is the problem?
(RB433AH-R52HNd-Sector ItElite 2.4ghz)
Every WDS interface cuts your throughput in half. So plan accordingly.
what device can i use that be powerfull in this case?
Vahid jonn, salam
First you need a network plan which means determine:
What do you want from this network?
How many users do you have?
How much is the coverage area for wireless network?
How many station do you have?
What kind of devices do you use?
How much bandwidth satisfy you for each WDS peer?
and so on
سلام برادر. از اینکه تو غربت به داد ما رسیدی ممنون
i want to share about 10mg internet to about 200 users in 2.4 and 5.8 g
there is no problem in 5.8 but in 2.4 i need to use some ap’s as wds repeater.
انگلیسی ام خوب نیست
i think that pci devices such xr2 or r52hn are not powerfull to process about 5-10 wds ap.
i am using RB433AH+XR2+Sectore itelite 15db (not mimo)
coverage is about 5 km. and there is no problem in signal
the other side device may be an outdoor ap or laptops internal wifi or mobile device or internal ap for repeating the signal
maximum aps that may connect to this sector is about 30.
That’s not even going to be usable.
Yes It is usable in IRAN
Haha, I guess I have never used the internet in Iran and it sounds like I don’t want to.
من اگه جای تو بودم از این روش استفاده نمی کردم چون تجربه خوبی ازش ندارم
به جاش نانو استیشن ام 2 بخر که دو تا پورت لن داره

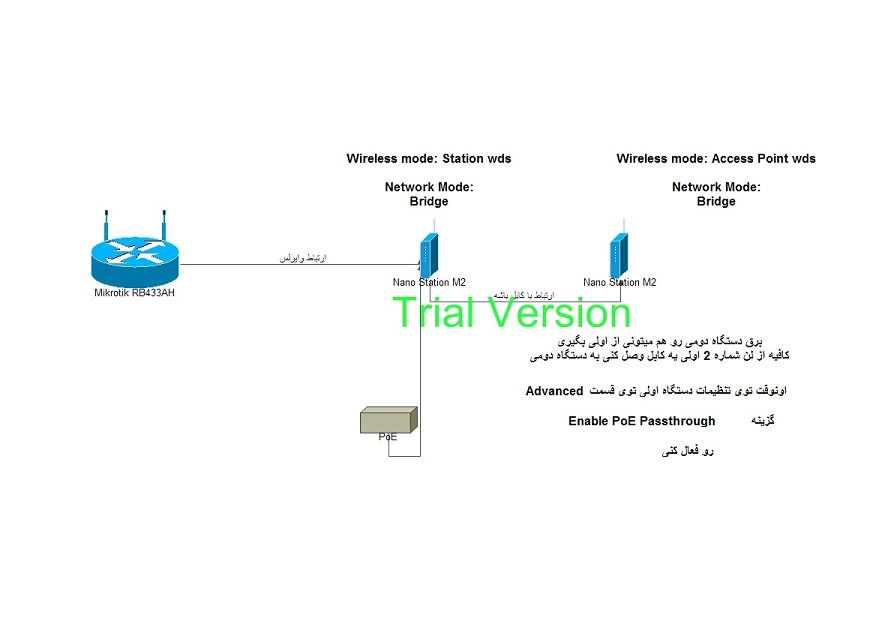

باقیشو از شکل زیر ببین
you may visit http://www.speedtests.net/world/
find Iran’s rank
Wow 0.60 down. That sucks. I thought our 6m down was bad.
oh iran!!!
this image is good but i dont want to use 2 ap.( one for station and one for ap )
i want to use wds to use only one ap that acts as ap and client
So… you can use Nano M2 as AP wds too.
yes.nano m2 is better.
but what the aplication of xr2+itelite sector ? (about 450000 tooman)
money!!!
If you already bought them, I think You can use them in other project not in wireless repeater. NSM2 is more cheaper solution.
