Hi guys
I am having some troubles in testing some routerOS x86_64 hardwares.
we have setup 2 dell servers R620 and R420..
setup R420 2 E5-2470v2 cpus.. for full capacity + mellanox MXC354-FCBT dual port 40GB (with firmwware upgradede and switched to ethernet mode)
setup2 R620 with 2 E5-2697v2 cpus + Mellanox MCX455-ECAT single port 100GB (with firmware upgraded latest available on nvidia site, and also in ethernet mode.
So i have tested with DAC 40GB cable.. with autonegotiation off.. it will not link 40GBps full-duplex.. so i removed the dac and placed 40gb gbic with cable and it linked full duplex 40gbps on both servers..

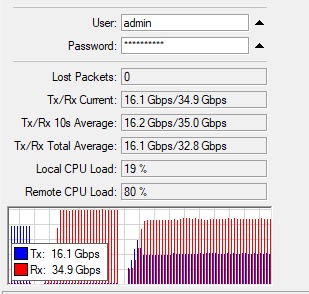

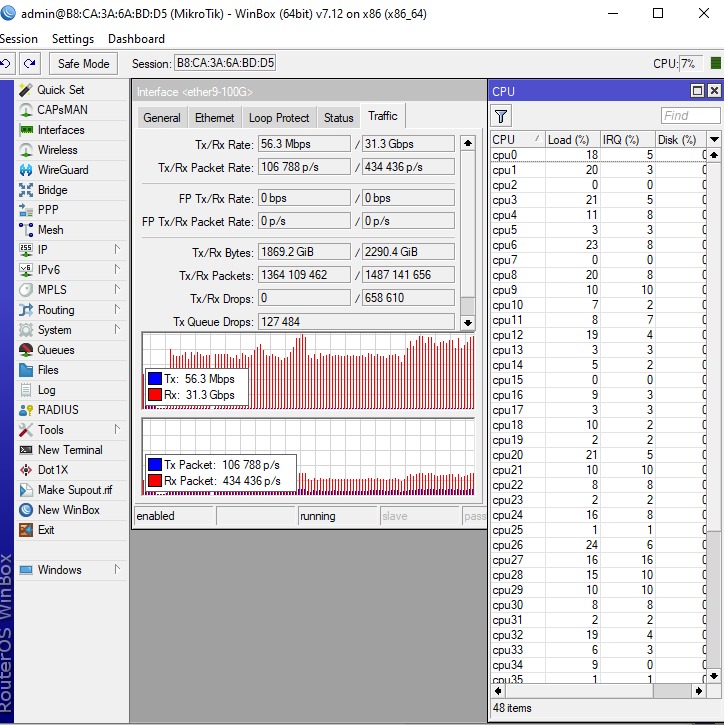

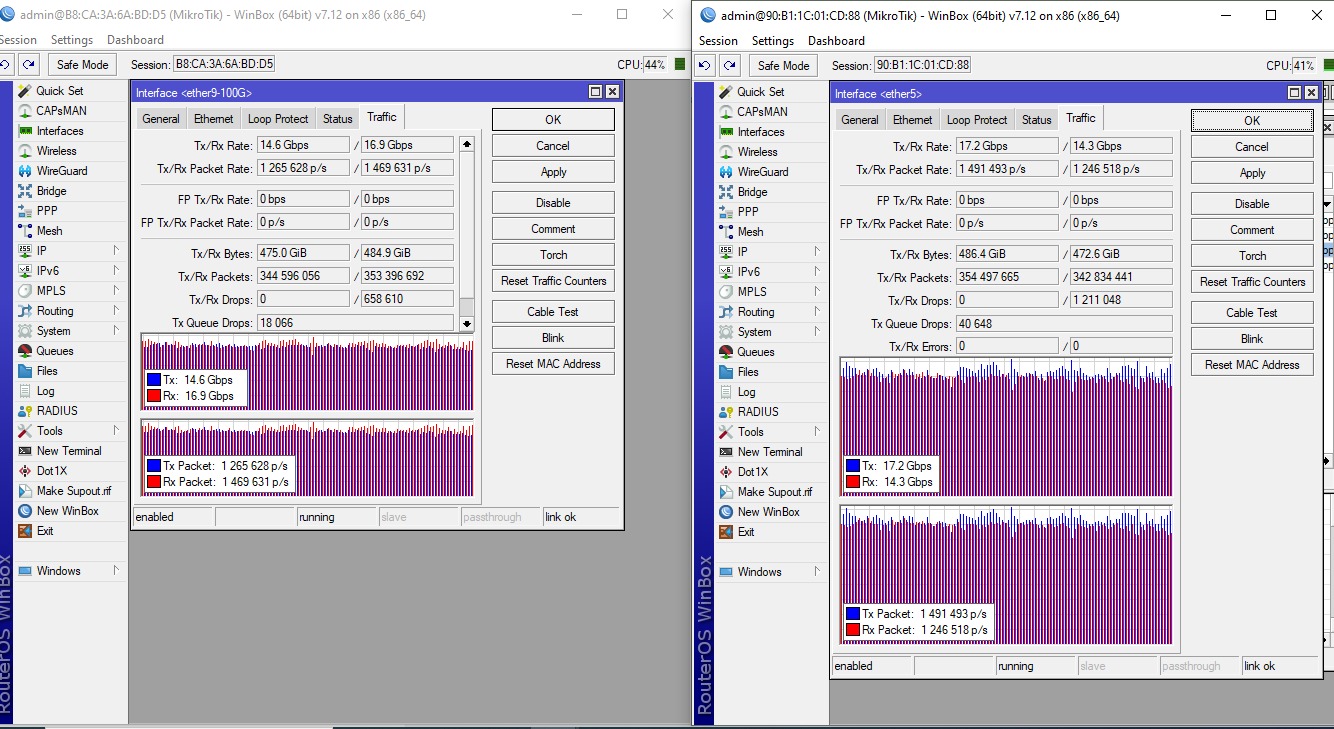

so i did some testing with bandwith test server.. and TCP running both sides.. i can only get 15Gbps aggregate traffic.. cpu wise running average 20% to 30% on both machines.. it seems to be something on the network side so i tried out.. jumbo frame set 9800 on both ethernet adapters as shown on pictures below.. but i cannot get past 15gbps..

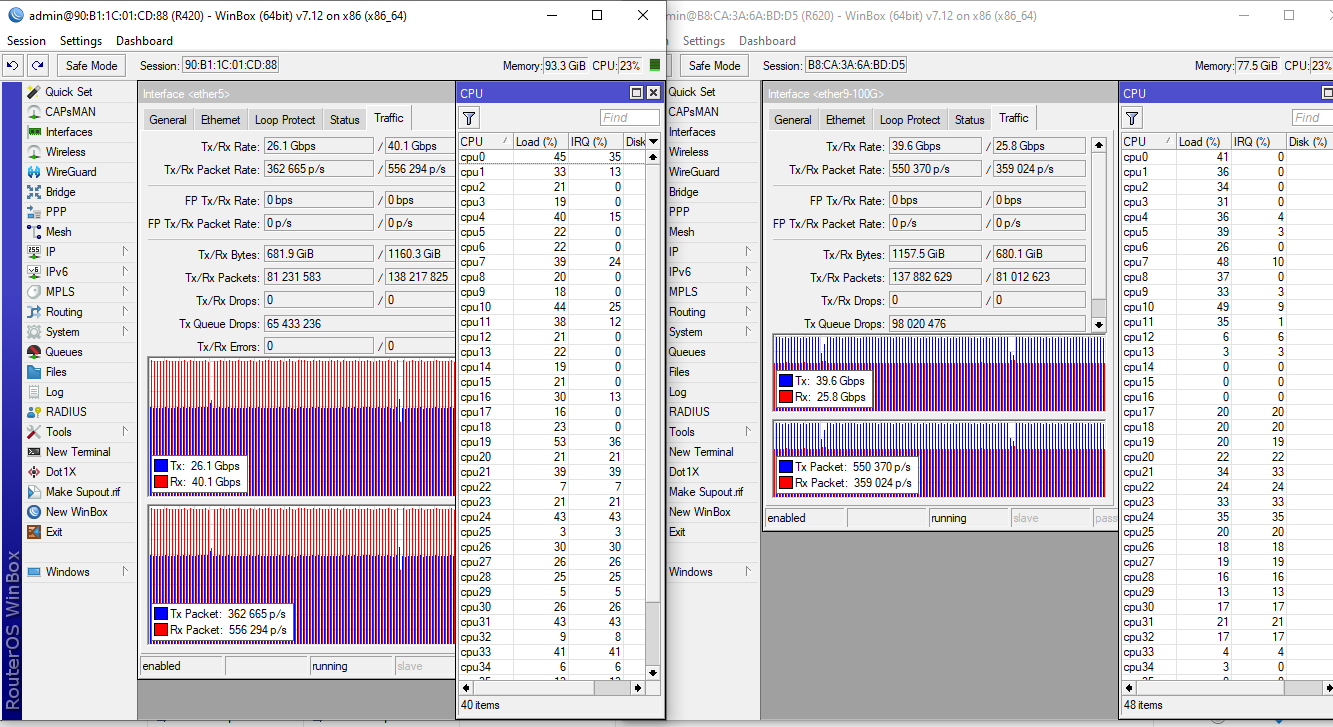

if i do internal core test local on the server i can get nearly over 60gbps internal on the cpus TCP packets.. but on the network interfaces cannot get past 15gbps aggregate.. wondering if its software wise or hardware wise on the servers?
also multi x86_64 is enabled on both servers..
Any ideas on what else i could try out?
Both servers are PCIe 3.0 slot cards.. so i am wondering if its hardware limitation.
Or could it be a limitation on the 24h trial license? as we are using trial 24h license to test the hardware.
