Hi, we are evaluating a Mikrotik CCR2116-12G-4s+ to replace our Cisco routers in an LNS role. One issue we have encountered is trying to place a PPP session’s routes into a VRF, based on a RADIUS reply attribute. Similar to this forum entry.
http://forum.mikrotik.com/t/put-pppoe-server-client-in-vrf/162536/1
It is understood that Mikrotik do not support an equivalent RADIUS attribute such as Cisco’s AV Pairs. But the Mikrotik-Group attribute can be sent in the RADIUS reply to override the default PPP profile for that user’s session.

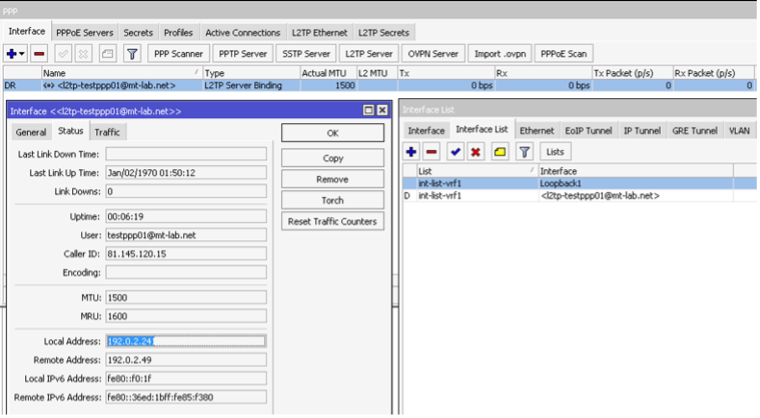

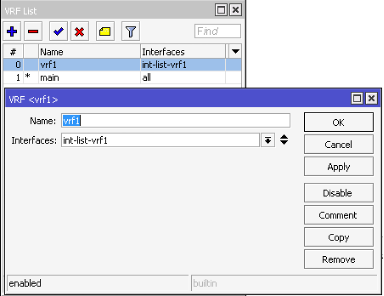

We have tried to use this feature to apply a non-default PPP profile (ppp-profile-vrf1) to a user. This non-default PPP profile has an associated interface-list which has been added to a VRF (vrf1). This seems to work as expected with the dynamic PPP interface being added to the interface-list.
Though we have noticed some of the PPP session’s routes on the LNS are added to the VRF and some are not. In our case the Framed-IP-Address and Delegated IPv6-Prefix routes have been added to the VRF, but the Framed-Route and the Framed-IPv6-Prefix have not.
See the diagram below showing the topology and the ip and ipv6 route print outputs.
Routes in purple in VRF as expected. Routes in red not in VRF.
The route print detail output is below. I have noticed the routes not present in the VRF are marked as inactive and have a missing immediate-gw.
[admin@lns3] > /ip/route/print det
Flags: D - dynamic; X - disabled, I - inactive, A - active; c - connect, s - static, r - rip, b - bgp, o - ospf, i - is-is, d - dhcp, v - vpn, m - modem, y - bgp-mpls-vpn; H - hw-offloaded; + - ecmp
DAb dst-address=81.145.120.14/32 routing-table=main gateway=192.0.2.34 immediate-gw=192.0.2.34%vlan1184 distance=20 scope=40 target-scope=10 suppress-hw-offload=no
DAb dst-address=81.145.120.15/32 routing-table=main gateway=192.0.2.34 immediate-gw=192.0.2.34%vlan1184 distance=20 scope=40 target-scope=10 suppress-hw-offload=no
DAb dst-address=91.151.11.253/32 routing-table=main gateway=192.0.2.34 immediate-gw=192.0.2.34%vlan1184 distance=20 scope=40 target-scope=10 suppress-hw-offload=no
DAb dst-address=91.151.11.254/32 routing-table=main gateway=192.0.2.34 immediate-gw=192.0.2.34%vlan1184 distance=20 scope=40 target-scope=10 suppress-hw-offload=no
DAc dst-address=192.0.2.0/28 routing-table=main gateway=sfp-sfpplus2 immediate-gw=sfp-sfpplus2 distance=0 scope=10 suppress-hw-offload=no local-address=192.0.2.5%sfp-sfpplus2
DAc dst-address=192.0.2.32/30 routing-table=main gateway=vlan1184 immediate-gw=vlan1184 distance=0 scope=10 suppress-hw-offload=no local-address=192.0.2.33%vlan1184
DAc dst-address=192.0.2.49/32 routing-table=vrf1 gateway=<l2tp-testppp01@mt-lab.net>@vrf1
immediate-gw=<l2tp-testppp01@mt-lab.net> distance=0 scope=10 suppress-hw-offload=no
local-address=192.0.2.241%<l2tp-testppp01@mt-lab.net>@vrf1
DIvH dst-address=192.0.2.64/28 routing-table=main pref-src="" gateway=<l2tp-testppp01@mt-lab.net>
immediate-gw="" distance=1 scope=30 target-scope=10 suppress-hw-offload=no
DAc dst-address=192.0.2.240/32 routing-table=main gateway=Loopback0 immediate-gw=Loopback0 distance=0 scope=10 suppress-hw-offload=no local-address=192.0.2.240%Loopback0
DIcH dst-address=192.168.88.0/24 routing-table=main gateway=ether13 distance=0 scope=10 suppress-hw-offload=no local-address=192.168.88.3%ether13
DAc dst-address=192.0.2.241/32 routing-table=vrf1 gateway=Loopback1@vrf1 immediate-gw=Loopback1 distance=0 scope=10 suppress-hw-offload=no local-address=192.0.2.241%Loopback1@vrf1
[admin@lns3] > /ipv6/route/print det
Flags: D - dynamic; X - disabled, I - inactive, A - active; c - connect, s - static, r - rip, b - bgp, o - ospf, d - dhcp, v - vpn, m - modem, g - slaac, y - bgp-mpls-vpn; H - hw-offloaded; + - ecmp
DAc dst-address=2001:db8:2:2::/64 routing-table=main gateway=sfp-sfpplus2 immediate-gw=sfp-sfpplus2 distance=0 scope=10
DIvH dst-address=2001:db8:8:4::/64 routing-table=main gateway=<l2tp-testppp01@mt-lab.net> immediate-gw=""
distance=1 scope=30 target-scope=10
DAd dst-address=2001:db8:100:300::/56 routing-table=vrf1 gateway=fe80::36ed:1bff:fe85:f380%<l2tp-testppp01@mt-lab.net>@vrf1
immediate-gw=fe80::36ed:1bff:fe85:f380%<l2tp-testppp01@mt-lab.net> distance=1 scope=30 target-scope=10
vrf-interface=<l2tp-testppp01@mt-lab.net>
DAc dst-address=fe80::%sfp-sfpplus2/64 routing-table=main gateway=sfp-sfpplus2 immediate-gw=sfp-sfpplus2 distance=0 scope=10
DAc dst-address=fe80::%sfp-sfpplus4/64 routing-table=main gateway=sfp-sfpplus4 immediate-gw=sfp-sfpplus4 distance=0 scope=10
DAc dst-address=fe80::%<l2tp-testppp01@mt-lab.net>/64 routing-table=vrf1 gateway=<l2tp-testppp01@mt-lab.net>@vrf1
immediate-gw=<l2tp-testppp01@mt-lab.net> distance=0 scope=10
DAc dst-address=fe80::%Loopback0/64 routing-table=main gateway=Loopback0 immediate-gw=Loopback0 distance=0 scope=10
DAc dst-address=fe80::%vlan1184/64 routing-table=main gateway=vlan1184 immediate-gw=vlan1184 distance=0 scope=10
DAc dst-address=fe80::%Loopback1/64 routing-table=vrf1 gateway=Loopback1@vrf1 immediate-gw=Loopback1 distance=0 scope=10
My questions are :-
- Is this a supported configuration - LNS server placing PPP session in a VRF ? I have not found a definitive response in the forums to confirm this can be achieved with the current software. It would be great to understand if this is or is not supported yet. If it is, could you point me in the right direction where I am going wrong in the supplied config below. I have raised a ticket with Mikrotik support but no response so far.
- Can this be made to work as intended. I have seen scripts being used in the forums during the ppp up and down stages to achieve specific goals. But am not sure if this can be achieved or what is required to add the missing routes into the VRF. I am relatively new to the Mikrotik platform.
From the following post it seems VRF traffic is not hardware offloaded currently, so even if this was working as expected this platform would not scale for this purpose. Though hardware offloaded VRF traffic is intended to be offered in a future release.
http://forum.mikrotik.com/t/unable-to-get-routing-on-multi-vrf-setup-working-routes-marked-as-inactive/156967/1
Any comments or pointers would be gratefully received.
Many thanks for your help.
Mikrotik CCR2116-12G-4s+ config. Tested with RouterOS 7.11.
lns3-config.txt (2.32 KB)
Cisco CPE config
cpe-config.txt (667 Bytes)
