I’m looking for some practical advice from those who have worked with the MikroTik cAP lite.
I’m not a network technician—I come from an electrical background—but I recently came across one of these units on site and liked how compact and discreet it is. It seems like a solid option for extending 2.4GHz coverage to areas like garages or gate motors where signal is usually poor.
Most of what we install runs on 2.4GHz—mainly IoT smart devices and dongles—so reliable coverage in those areas is important.
That said, the setup is not as straightforward as expected, especially around PoE compatibility and integrating into an existing network without causing issues.
For those with experience:
What’s your standard approach when adding one of these to an existing network?
Do you keep it as a simple access point/bridge, or is there a better way?
When a site already has an existing managed network in place, what’s the best way to introduce one of these without interfering with what’s already running?
Just trying to find a clean, repeatable way to use these in smaller installations without creating problems down the line.
But it doesn't change the terms of the problem, Mikrotik RouterOS is not straightforward and there is a rather steep initial learning process.
In the case of extending a (wired) network, the setup is however very simple, you want a "bridge" between the wire and the wireless, so no need for firewall and nat or for any other "fancy" settings, as long as you don't need/use VLAN's in the main network.
/interface bridge port
add bridge=bridge1 interface=all
instead of adding to the bridge the interfaces one by one.
That configuration is for version 6.x, the v7 version would be essentially identical but for its use as a network extender, there are no issues in using the previous ROS version (that will also be a little bit faster on these small, low-power devices.
It is up to you to not even assign an IP to the device (in which case it will only be connectable via Winbox MAC) or use instead of the static address a DHCP client.
With this kind of configuration the device will be as transparent as possible.

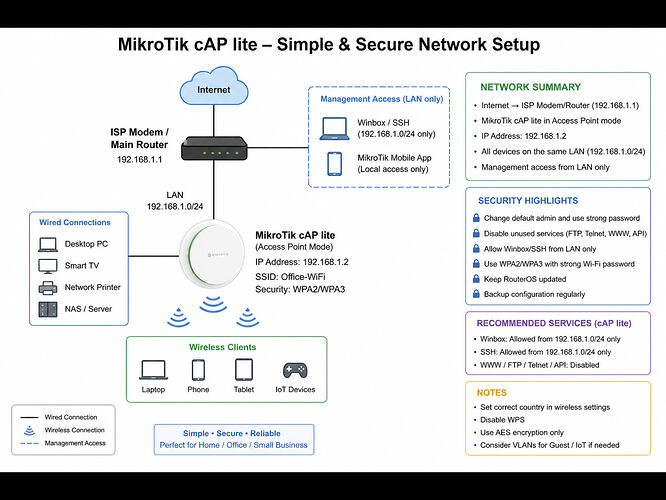

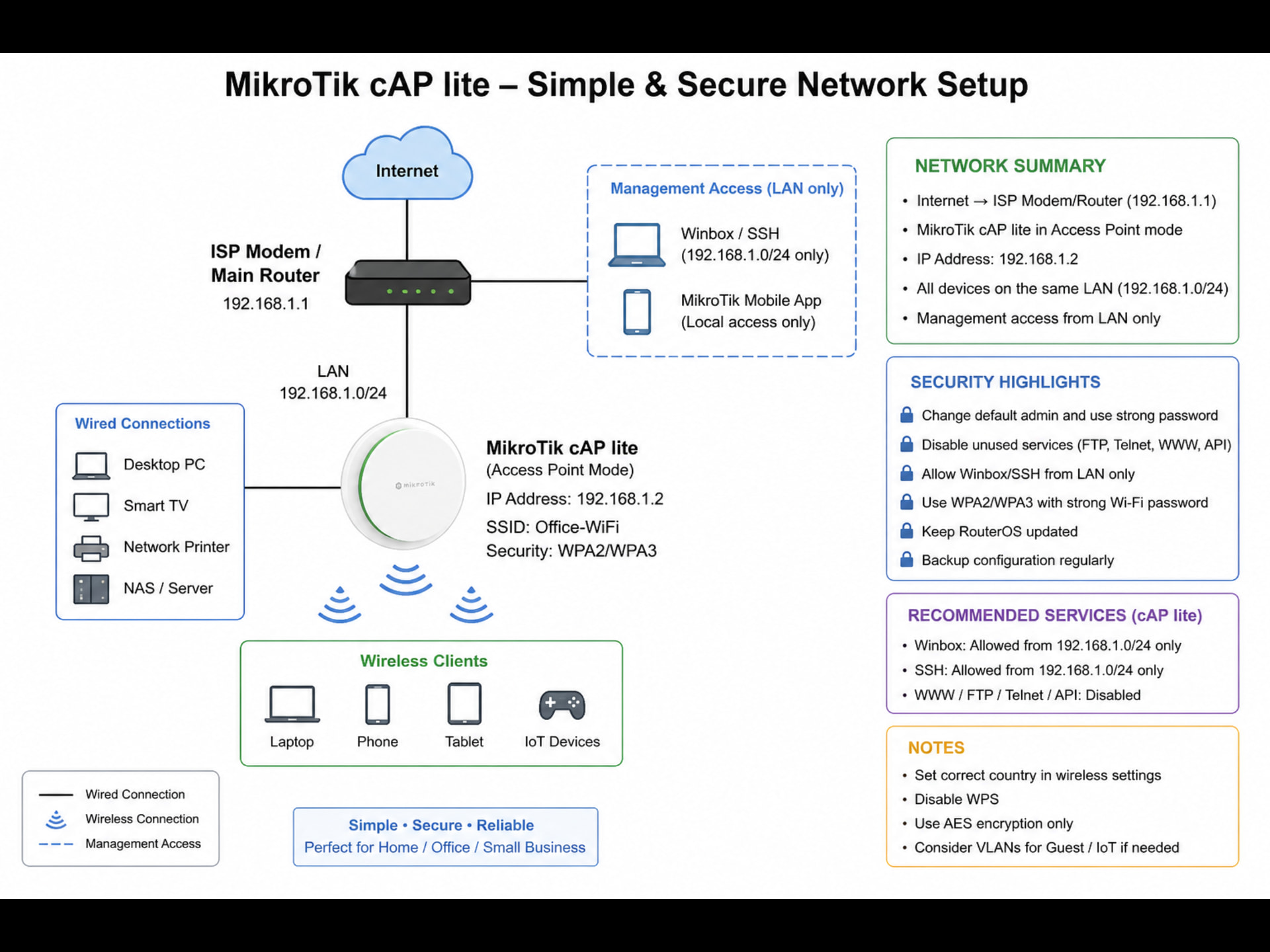

The first one shows that you need AI to properly formulate your own needs.
The second is a wishlist, not even the checklist for newbies as it does not say how to do these things and some "advices" are not correlated to others.
Please feel free to correct me or point me in the right direction if anything I’ve said is off or not appropriate for this community.
I’m still finding my way around the forum, and in hindsight, my first post probably should have gone in the beginners section.
My goal here is to build a solid basic understanding—enough to ask the right questions when dealing with sites where customers have MikroTik routers installed. I’m not aiming to become a network specialist, but I do want to be competent enough to engage with technicians and understand what’s happening on-site.
I’m also looking at setting up basic access points like the MikroTik cAP Lite and mAP for IoT devices, which seems like a practical starting point.
No need for flooding the forum with unchecked "something" that pretends to be help for others. You can find a lot of topics on this forum covering the problem you have. Just do search.
My advice is to write these "cheatsheets" by yourself as preparing such a document forces you to double check the real effects before releasing (I hope as I'm a little old schooled) for others.
Do not expect commenting that AI generated bull.....t.
Thanks for your input, I will check out the links you shared and scratch around and see what i can find.
The Ai prompts are generally nice to look at, but found then to be inacurate, especially with wiring schematic, which makes it extremely dangerous, especially when working on 1500 amp circuit breaker @400V. Thanks for pointing out the issues, I was hoping someonewould guide me in the right direction.
The next option is to do what i do with some of my supplier who offer really good tech support, find someone who has the technical backround, to team view and few clicks later a small cover charge and its happy days.
I have a few companies i deal with who do IT customer support and a few people who do computer repairs for me, I will chat to them today.
