Dear Users,

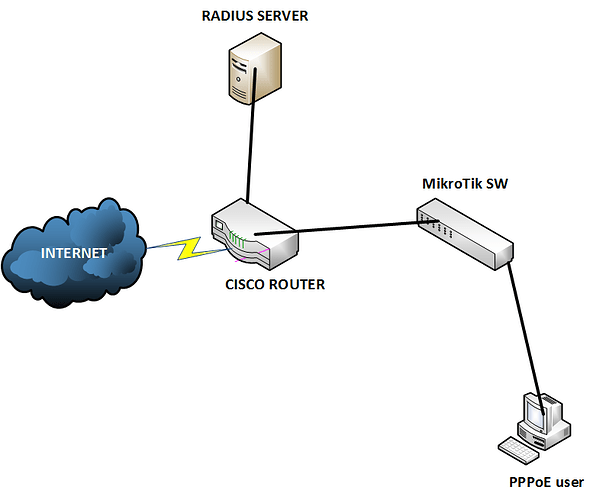

The basic scenario:
a. user to use pppoe protocol to internet
b. cisco router: pppoe server, dhcp server and main bandwidth manager
c. radisu server: the user account and user bandwidth template
- The user would like to connct the internet. The user start pppoe request: Who is a PPPoE server?
- Cisco answer and ask: I am the PPPoE server. Do you have username and password?
- The user send the your username and password.
- Cisco get the username and password from user and it send request to Radius Server: Are these username and password valid?
- Radius answer to Cisco and send bandwidth template to Cisco: Yes, these datas are valid and I send the user bandwidh template.
- Then Cisco gives IP address for the user, It provides the way for the user to internet and It controls the bandwidth.
But I would like to configure bandwidth control on the MikroTik CRS switch ports, too. I would like to use different bandwidth limit on the different ports. This is the config:
Interface and vlans:
Flags: X - disabled, R - running, S - slave
NAME MTU ARP VLAN-ID INTERFACE
0 R vlan10 1500 enabled 10 ether1-master
1 R vlan1610 1500 enabled 1610 ether1-master
2 R vlan3260 1500 enabled 3260 ether1-master
Flags: D - dynamic, X - disabled, R - running, S - slave
NAME TYPE ACTUAL-MTU L2MTU MAX-L2MTU MAC-ADDRESS
0 R ether1-master ether 1500 1588 4064 D4:CA:6D:FD:9A:77
25 R bridge1610 bridge 1500 1584 D4:CA:6D:FD:9A:78
26 R vlan10 vlan 1500 1584 D4:CA:6D:FD:9A:77
27 RS vlan1610 vlan 1500 1584 D4:CA:6D:FD:9A:77
28 R vlan3260 vlan 1500 1584 D4:CA:6D:FD:9A:77
Bridge:
[admin@MikroTik] /interface bridge port> print
Flags: X - disabled, I - inactive, D - dynamic
INTERFACE BRIDGE PRIORITY PATH-COST HORIZON
0 vlan1610 bridge1610 0x80 10 none
1 I ether2 bridge1610
Queues:
Flags: X - disabled, I - invalid, D - dynamic
0 name="TEST-QUEUE" target=ether2 parent=none packet-marks="" priority=8/8 queue=default-small/default-small limit-at=0/0 max-limit=5M/10M burst-limit=0/0
burst-threshold=0/0 burst-time=0s/0s bucket-size=0.1/0.1
Ether1 is trunk port. Ether2 and vlan1610 is in the bridge1610, this ports are in same lan. I would like to use the bandwidth limit on ether2.
Please help me in the bandwidth control setting.
Thank you!!!
