Hi,
I want to use a RB951G-2Hnd
But it is not working and drives me grazy.
I want 3 Virtual Access Points.
3 bridges
3 vlans
each vlan his own accesspoint
use on one vlan a hotspot.
This all I get working but I cant get good internet connection.
I can upload my configuration if that is a good thing
Bridge the wireless LAN to the vlan. You’ll create three vlan interfaces like E1-V10, E1-V11, etc then create a bridge for each network. Add each vlan and wireless LAN to that bridge. This will take non-vlan traffic and tag it when it crosses from the wireless lab to the vlan interface. Hopefully that helps.
Hi,
The problem is in the hotspot I think
I have three VLANS
The bridges I created and I create 3 Virtual AP’s
That all is ok
On one bridge I have the hotspot running
There is the problem
IF I connnect to a normal bridge and try to internet it is going fast and good
But if I login on the hotspot than the PAIN starts.
Internet is not working.
Or I only can reach http://www.google.nl
What can it be?
This is my config
If someone can help I will really like that
/system identity set name=SW01
/interface ethernet set 0 name=ether1-public
/interface ethernet set 1 name=ether2-local
/interface ethernet set 2 name=ether3-local
/interface ethernet set 3 name=ether4-local
/interface ethernet set 4 name=ether5-local
/interface bridge add name=BR-LAN
/interface bridge add name=BR-MOBILE
/interface bridge add name=BR-GAST
/interface vlan add name=VLAN-MOBILE vlan-id=10 interface=ether5-local disabled=no
/interface vlan add name=VLAN-GAST vlan-id=20 interface=ether5-local disabled=no
/interface wireless security-profile add name=TNW.LOCAL authentication-type=wpa2-psk unicast-ciphers=aes-ccm group-ciphers=aes-ccm wpa2-pre-shared-key=“PASSWORD” mode=dynamic-keys
/interface wireless security-profile add name=GAST authentication-type=wpa2-psk unicast-ciphers=aes-ccm group-ciphers=aes-ccm wpa2-pre-shared-key=“GUEST_PASSWORD” mode=dynamic-keys
/interface wireless security-profile add name=MOBILE authentication-type=wpa2-psk unicast-ciphers=aes-ccm group-ciphers=aes-ccm wpa2-pre-shared-key=“MOBILE_PASSWORD” mode=dynamic-keys
/interface wireless add master-interface=wlan1 ssid=TNW.LOCAL security-profile=TNW.LOCAL name=VAP-LAN wmm-support=enabled disabled=no
/interface wireless add master-interface=wlan1 ssid=GAST security-profile=GAST name=VAP-GAST wmm-support=enabled disabled=no
/interface wireless add master-interface=wlan1 ssid=MOBIL security-profile=MOBILE name=VAP-MOBILE wmm-support=enabled disabled=no
/interface bridge port add interface=ether2-local bridge=BR-LAN disabled=no
/interface bridge port add interface=VAP-LAN bridge=BR-LAN disabled=no
/interface bridge port add interface=VAP-GAST bridge=BR-GAST disabled=no
/interface bridge port add interface=VLAN-GAST bridge=BR-GAST disabled=no
/interface bridge port add interface=VAP-MOBILE bridge=BR-MOBILE disabled=no
/interface bridge port add interface=VLAN-MOBILE bridge=BR-MOBILE disabled=no
/interface ethernet set ether3-local master-port=ether2-local
/interface ethernet set ether4-local master-port=ether2-local
/interface ethernet set ether5-local master-port=ether2-local
/ip address add address=192.168.1.1/24 disabled=no interface=ether1-public
/ip address add address=192.168.201.245/24 disabled=no interface=BR-LAN
/ip address add address=192.168.10.1/24 disabled=no interface=BR-GAST
/ip address add address=192.168.20.1/24 disabled=no interface=BR-MOBILE
/ip route add dst-address=0.0.0.0/0 gateway=192.168.1.254 scope=30 target-scope=10 disabled=no distance=1
/ip firewall nat add action=masquerade chain=srcnat disabled=no out-interface=ether1-public
/ip dns set allow-remote-requests=yes cache-max-ttl=1w cache-size=2048KiB max-udp-packet-size=64 server=194.109.6.66
/interface wireless enable wlan1
/interface wireless set wlan1 hide-ssid=yes
/interface wireless set mode=ap-bridge wlan1 band=2ghz-b/g/n ht-txchains=0,1 ht-rxchains=0,1 wmm-support=enabled
/interface wireless set wlan1 channel-width=20/40mhz-ht-above
/interface wireless set wlan1 wireless-protocol=any
/system ntp client set primary-ntp=192.168.201.5 mode=unicast enabled=yes
#/ip pool add name=“DHCP-MOBILE” ranges=192.168.202.2-192.168.220.253
/ip dhcp-server add name=“DHCP-MOBILE” interface=BR-MOBILE lease-time=1h address-pool=static-only authoritative=after-2sec-delay bootp-support=none disabled=no
/ip dhcp-server network add address=192.168.20.0/24 gateway=192.168.20.1
/ip dhcp-server lease add address=192.168.20.2 mac-address=00:00:00:00:00:01 server=DHCP-MOBILE
/ip pool add name=“DHCP-POOL-GAST” ranges=192.168.10.2-192.168.10.253
/ip dhcp-server add name=“DHCP-GAST” interface=BR-GAST lease-time=1h address-pool=“DHCP-POOL-GAST” authoritative=after-2sec-delay bootp-support=static disabled=no
/ip dhcp-server network add address=192.168.10.0/24 gateway=192.168.10.1
#############################################################################################################################
/ip hotspot profile add name=“GAST-PROFILE” hotspot-address=192.168.10.1 dns-name=“” html-directory=hotspot http-proxy=0.0.0.0:0 login-by=http-chap,cookie use-radius=yes radius-accounting=yes
\
/ip hotspot add name=“HOTSPOT-GAST” interface=BR-GAST address-pool=“DHCP-POOL-GAST” profile=“GAST-PROFILE” disabled=no
/radius add service=hotspot address=127.0.0.1 secret=123456
/ip hotspot user add name=admin password=HOTSPOT
/tool graphing interface add interface=BR-LAN
/tool graphing interface add interface=BR-GAST
/tool graphing interface add interface=BR-MOBILE
/user set admin password=password
/interface ethernet set ether1 speed=1Gbps
/interface ethernet set ether2 speed=1Gbps
/interface ethernet set ether3 speed=1Gbps
/interface ethernet set ether4 speed=1Gbps
/interface ethernet set ether5 speed=1Gbps
Can you remove the hotspot or disable it to confirm that your bridge config & routing is in good shape?
Hi,
When I disable the Hotspot and connect to the GAST network (where the hotspot was running at) I have internet.
It works fast and good.
I’ve not done much with the hotspot… However if you want to post your hotspot config I can give it a shot.
/ip hotspot profile add name=“GAST-PROFILE” hotspot-address=192.168.10.1 dns-name=“” html-directory=hotspot http-proxy=0.0.0.0:0 login-by=http-chap,cookie use-radius=yes radius-accounting=yes
/ip hotspot add name=“HOTSPOT-GAST” interface=BR-GAST address-pool=“DHCP-POOL-GAST” profile=“GAST-PROFILE” disabled=no
/radius add service=hotspot address=127.0.0.1 secret=123456
/ip hotspot user add name=admin password=HOTSPOT
No one any idea why my hotspot is not working?
Maybe your hotspot address need to be 192.168.10.1/24
No that is not the reason.
There it expects an IP address so if you add /24 you get an error.

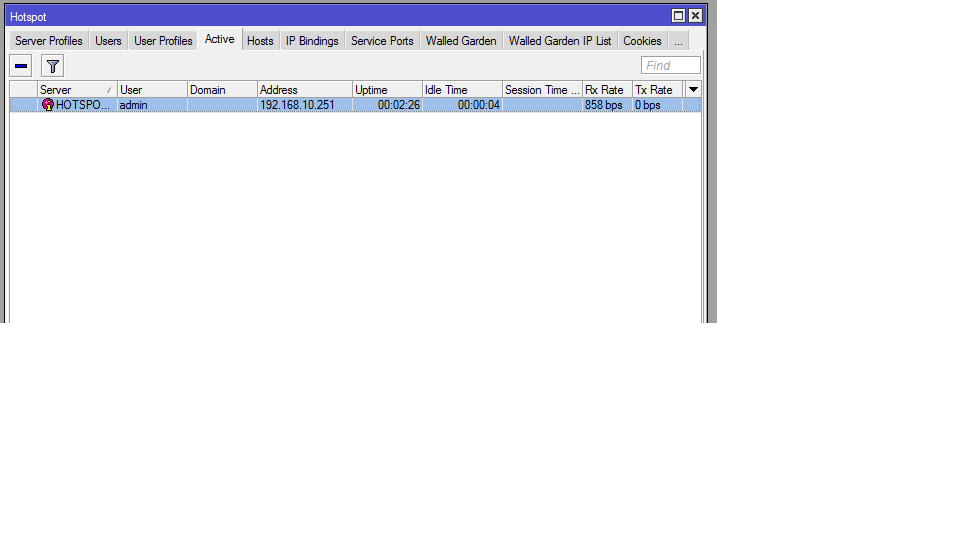

But I see I have RX traffic but no TX traffic.
See the picture.
Is that the problem???

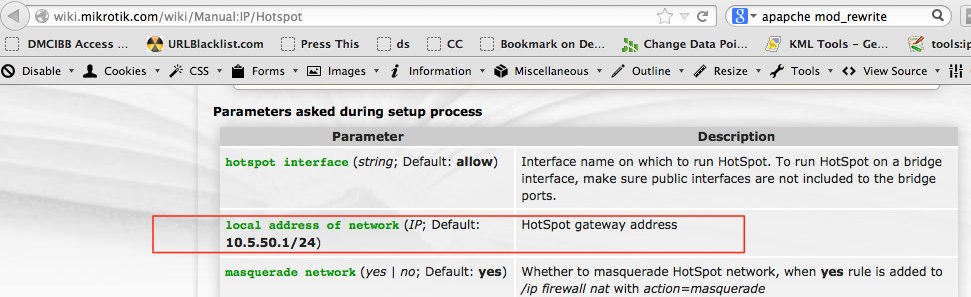

I’m surprised that specifying the size of your subnet on hotspot gateway address is giving you an error. Having a hotspot gateway address that is a /32 wouldn’t work which is what I am concerned that might be happeing. I am not sure that I am reading the config correctly. I have not configured many hotspots so I’ll have to build your config or as close as I can on a machine here in order to be sure. I won’t however have time to get to that for a few days. I hope you can figure things out before that however if you cannot I will be willing to help.
Hi,
It is still not working.
I have done a complete new setup for a few times.
I allso take a new RB751U and newly set it up.
The same problem.
Setup DHCP Network
/ip dhcp-server network add address=192.168.10.0/24 gateway=192.168.10.1
There is no dns server setting in the dhcp network. That could be a problem.
