Dear all
I just received MikroTik Fiber-to-Copper converter FTC11XG and I spent more than three hours trying to figur out to configure it with DFP-34X-2C2 stick it is little bet complicated device at least for me because i also have to configure vlan10 for internet and PPPoE
any help on hear or http://forum.mikrotik.com/t/hotspot-without-username/174841/1
FTC11XG is a SwOS device so it provides very little management possibilities by itself. Since your SFP module is ONU, it needs quite some configuration (and that can’t be done via SwOS). The only thing that SwOS can do is adjust SFP+ port speed to what ONT module expects/requires.
Many of those SFP ONT modules have in-band configuration and you can access it’s management interface from another device (e.g. a PC), connected to same switch (e.g. RJ45 port of FTC11XG) but accessing ONT’s management IP address. Which obviously only works after FTC11XG and ONT module start to communicate.

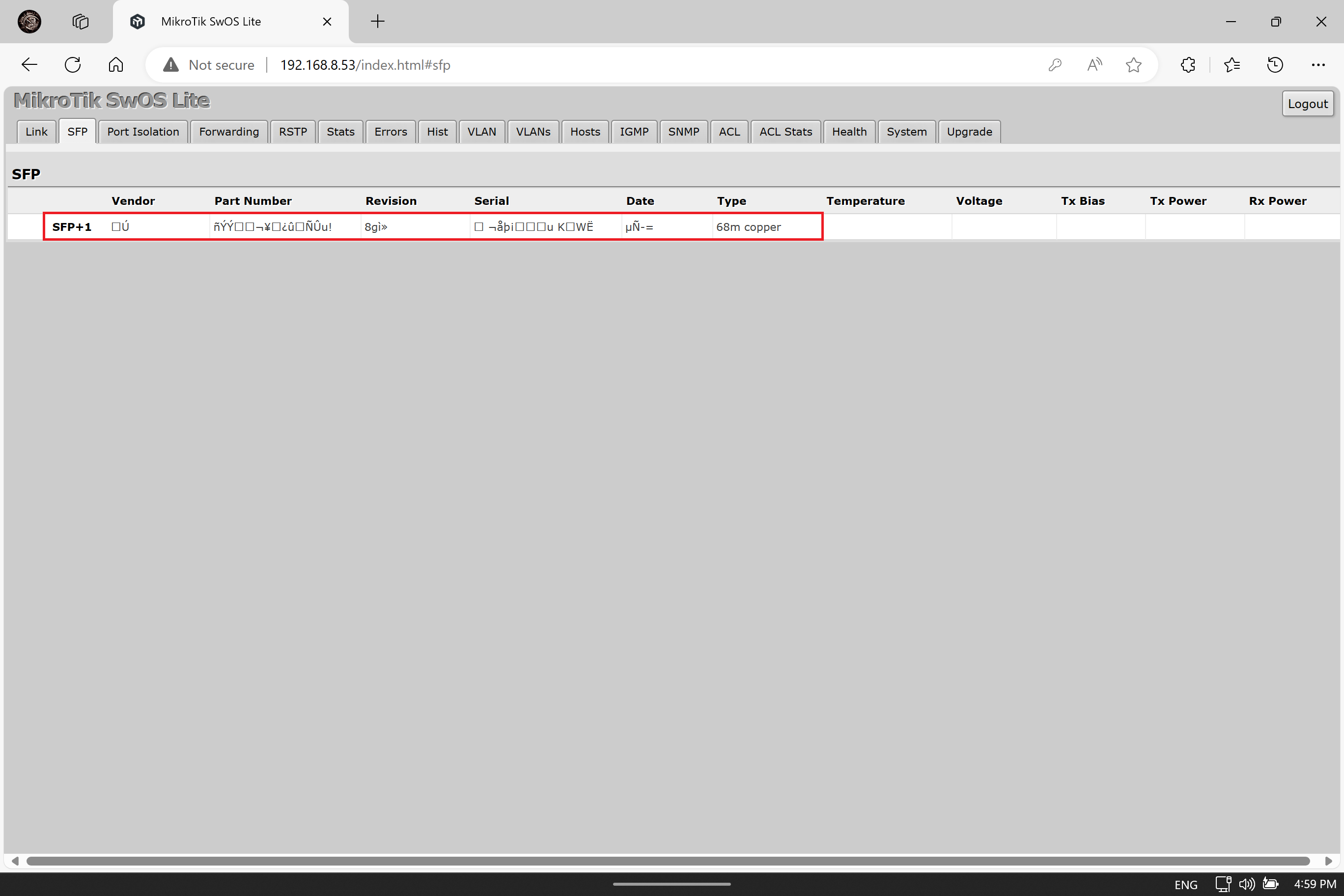

when i use Mikrotik FTC11XG media converter with XGS-ONU-25-20NI this is how Mikrotik FTC11XG media converter converter read it
