Mikrotik IPSEC connection to Fortigate 100F

RouterOS General
1

Hi guys,

I have a Mikrotik RB4011 as an IPSEC client. The IPSEC server is a Fortigate 100F.
I would like to create a site-to-site connection, the Mikrotik is the client.

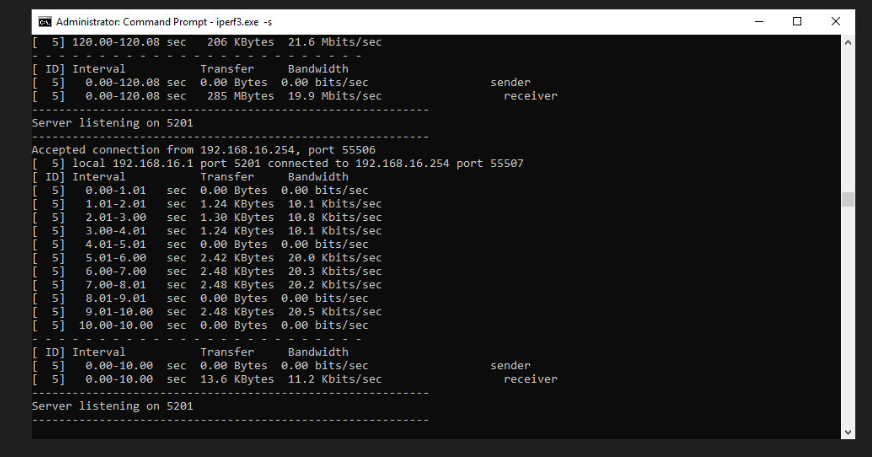

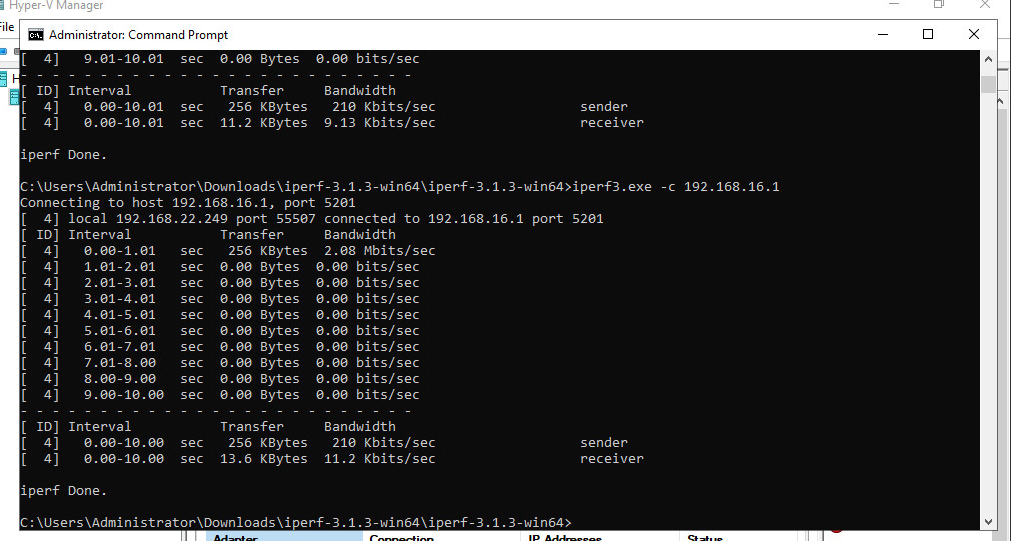

The IPSEC connection is fine and reliable. However I can not get more more thane 11 kbit.
However with the same settings, from a cisco rv340 I can max the internet connection with 20mbit.
Mikrotik settings:


 /ip ipsec profile> print
Flags: * - default
 0 * name="default" hash-algorithm=sha1 enc-algorithm=aes-128,3des
     dh-group=modp2048,modp1024 lifetime=1d proposal-check=obey
     nat-traversal=yes dpd-interval=2m dpd-maximum-failures=5

 1   name="Fortigate_profile" hash-algorithm=sha1 enc-algorithm=aes-128
     dh-group=modp2048 lifetime=1d proposal-check=obey nat-traversal=yes
     dpd-interval=2m dpd-maximum-failures=5

 /ip ipsec> policy print
Flags: T - template, B - backup, X - disabled, D - dynamic, I - invalid, A - active, * - default
 #      PEER TUN SRC-ADDRESS                                    DST-ADDRESS
 1   A  Fortigate.. yes x.x.x.x                                y.y.y.y

 /ip ipsec> proposal print
 1    name="Fortigate" auth-algorithms=sha1 enc-algorithms=aes-128-cbc lifetime=30m pfs-group=modp2048
 /ip ipsec> peer print
Flags: X - disabled, D - dynamic, R - responder
 0     name="Fortigate" address=a.a.a.a local-address=b.b.b.b profile=Fortigate_profile
       exchange-mode=main send-initial-contact=yes
/ip ipsec> identity print
Flags: D - dynamic, X - disabled
 0    peer=Fortigate auth-method=pre-shared-key secret="somekey" generate-policy=no

/ip ipsec> profile print
Flags: * - default
 1   name="Fortigate_profile" hash-algorithm=sha1 enc-algorithm=aes-128 dh-group=modp2048 lifetime=1d
     proposal-check=obey nat-traversal=yes dpd-interval=2m dpd-maximum-failures=5

Do you have any idea? Fortinet support does not have any solution…

Thanks,

2

Do you perhaps have fasttrack in your firewall?

3

Some things you can try to narrow down the issue:

Go to Tools > Profiler, are any processes using high CPU during your test?
When running the speed test, use Tools > Torch to see what TX/RX is going through the WAN interface, only 11kbit?
Turn off encryption, run the test again, still slow?
If both sides have a public IP on their wan interfaces, turn off NAT-Traversal.
Turn on additional logging under System > Logging, Topics: IPSec

4

I believe some of the ipsec prints (active-peer?) can show whether encryption is hardware offloaded.


If both sides have a public IP on their wan interfaces, turn off NAT-Traversal.

I wonder how that can affect performance. That’s just 2 extra payloads on a phase 1 handshake.

5

With NAT-T enabled, all IPSec packets will be wrapped in a UDP packet. A packet capture would show if fragmenting is happening. Although I would not expect fragmenting to cause such a drastic performance penalty.

6

Yes I do have fasttrack connection. Does it matter?

7

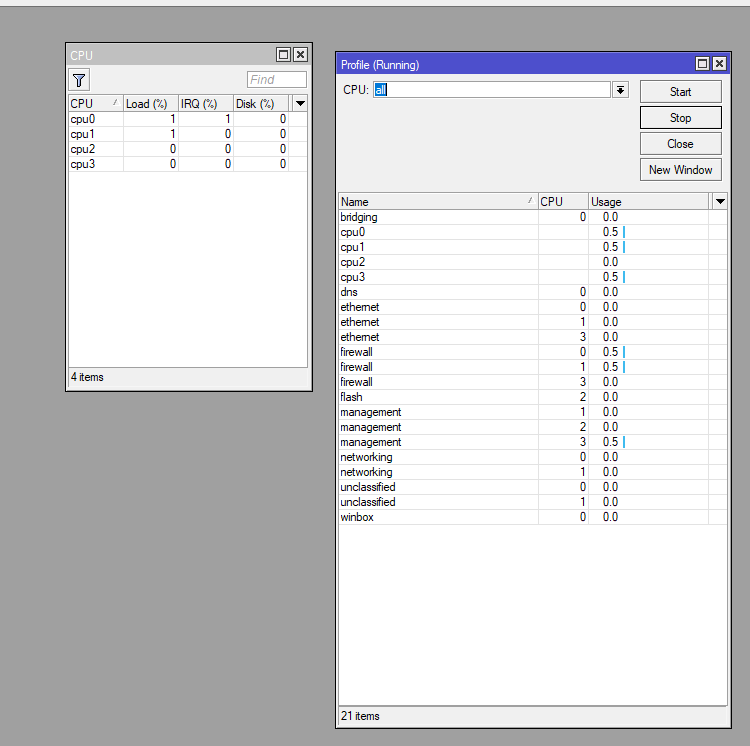

I don’t think this is a CPU issue:
I already turned on logging, but nothing is there, just it’s a good connection and no errors…

8

Yes NAT Traversal is turned on, but I don’t think that cause the problem.

 /ip ipsec> active-peer print
Flags: R - responder, N - natt-peer
 #    ID                   STATE              UPTIME          PH2-TOTAL
 0 R                       established        45m54s                  2
9

You may have other firewall rules that exclude IPSec traffic from FastTrack, but if you temporarily disable the rule, it’s the quick and simple test.

10

Thank you, the mikrotik support team answered the same. I’m gonna try this: https://help.mikrotik.com/docs/display/ROS/IPsec#IPsec-NATandFasttrackBypass
