I’m trying to follow these https://category5.tv/shows/clips_tech/episode/652-mikrotik-guest-wifi/ instructions to set up guest wifi, but instead of having wireless access on the router, I have the Ubiquiti U6 Lite access point. I’ve managed to set up the AP such that it provides standard wifi access for 2.4Ghz and 5Ghz. The AP has address 192.168.88.251 (static lease), the gateway 192.168.88.1.
I run into trouble when trying to add a VLAN under Wireless → WiFi Interfaces (in WinBox) because “Master Interface” is red, says “unknown” and I cannot select anything.
Any pointers would be much appreciated. Thank you. Super excited to have a MikroTik router and I only learned about MikroTik 5 weeks ago. One more note, FWIW: In the future, I intend to replace the Ubiquiti AP with a CAPsMAN-compatible unit as soon as MIkroTik comes out with a good Wifi6 access point.
First of all WISE move on waiting for a capac6 product! You should get a prize for such astuteness!
If you cant wait, there are alternatives, and it would be good for MT to at least provide a quarter by quarter road map that is reasonably accurate so resellers and clients can efffing plan their lives.
Caveat - during covid supply lines are disrupted beyond reasonable for anyone to be accurate, but the principle remains.
The best thing to do is to provide us with your current config to review
/export hide-sensitive file=anynameyouwish
Note; Just ensure no public IPs are shown.
A network diagram would help so we know
which port ethernet comes in on (what type of ISP connection you have as well)
where each port goes to ( noting if its a smart device (managed switch or AP that can handle vlans) or dumb device (unmanaged switch, printer, pc).
Hi there, I have a similar setup and I am new to both Mirkotik and Ubiquiti devices.
The goals are to
Setup a guest network with Wifi internet access only. That is, no access to other devices/ networks
Setup Wifi and wired network for those computers connected to HPE OfficeConnect 1920 switch with access to Internet, the LaserJet Pro, Samba sharing at TrueNAS and some selected VMs/ Containers at the Proxmox Server only
Setup a Wifi network for the surveillance cameras. NVR application runs at the TrueNAS server. This network should not have internet access.
Setup an Admin network to maintain these devices: RB5009, USW-Lite-16-poe, Unifi U6 LR AP, HP OfficeConnect 1920 switch, TrueNAS, Proxmox Server, Surveillance cameras & HP LaserJet Pro
I’ve been playing with the Unifi new and old UIs back and forth. So far so good and here are some ref links

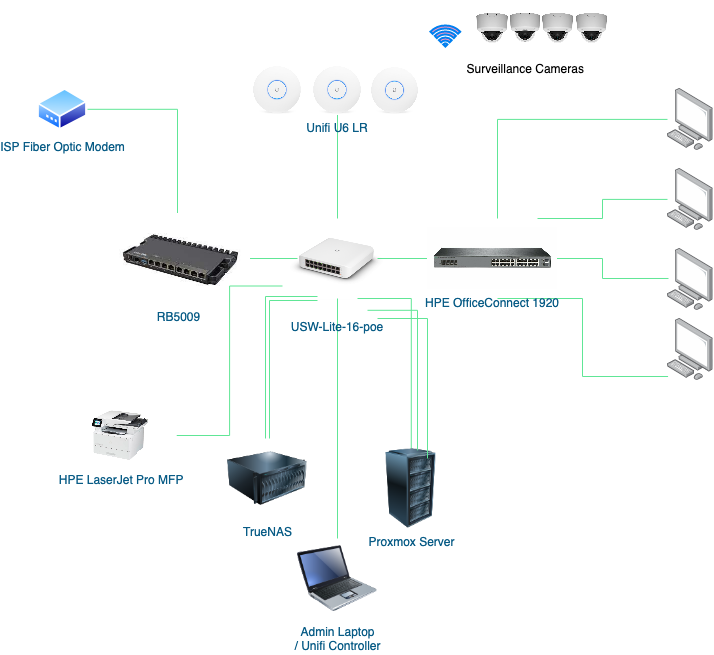

Do Bridge VLAN filtering or VLAN at mikrotik build-in switch chip? Still very confusing. As shown in the diagram below, I use RB5009’s port 1 to connect to ISP modem and port 2 as the trunk port for collecting the USW-Lite-16-poe switch. This should be what they call router on a stick.
mkx suggests bridge vlan is not necessary for router on a stick → http://forum.mikrotik.com/t/vlans-on-rb750gr3-im-stuck/154656/1
But, a bridge with all ports as the members is created out of the box as the default config of RB5009. I think i miss something and need to study again…
Add guest network that is completely separated from my main LAN
Make sure firewall is secure
Also isolate the website I’m hosting on the Raspberry Pi. Implement a service that automatically updates my domain DNS settings based on my dynamic IP (so that the web server is always accessible with a domain name even if my IP changes)
Custom DNS servers (?) - yet to figure out why and how…
Add QoS so that the Windows PC always gets priority
(Added, based on @MTL7’s post): Add security cameras, e.g. Wyze
Great, thanks for the tips and links. I enabled Mikrotik IP Cloud (and while doing it I realized it was a smart idea to take out the router serial number from the settings export I linked to earlier!). However, still haven’t got it to work. I can access my router’s webfig using the domain name provided by the router (IP cloud). However, I might have not configured cloudflare DNS settings properly as I don’t fully understand the relationship and meaning of all the different record types. Here’s a screenshot:
