Mikrotik SXT 2 light

RouterOS Beginner Basics
1

Hi all,

Please help me with this strange problem.
i am new to mikrotik and the sxt series.
trying to make an connection over 400/700 mtr.
on side 1 i have a internet connection a router and the mikrotik.
on side 2 is where the internet most go to.
i did follow this help guide https://www.google.nl/url?sa=t&rct=j&q=&esrc=s&source=web&cd=2&cad=rja&ved=0CD8QFjAB&url=http%3A%2F%2Fwww.ispsupplies.com%2Fcontent%2Fresources%2FQuick%2520MikroTik%2520SXT%2520Bridge.pdf&ei=PKilUpuyGLCT0QWVkoHADw&usg=AFQjCNFybZrZ5Qigq9HlfRwmBb-RM_Zozg&sig2=fGomOO37weQCS9KH9lOg4A&bvm=bv.57752919,d.d2k but didn’t seem to work at all !!

I already got the link between the two sxt 2’s but no internet att all !!

now i hope that you guys can explain how it most be done !!

sorry for my english ! i am from the netherlands

kind regards Martin Weijers

2

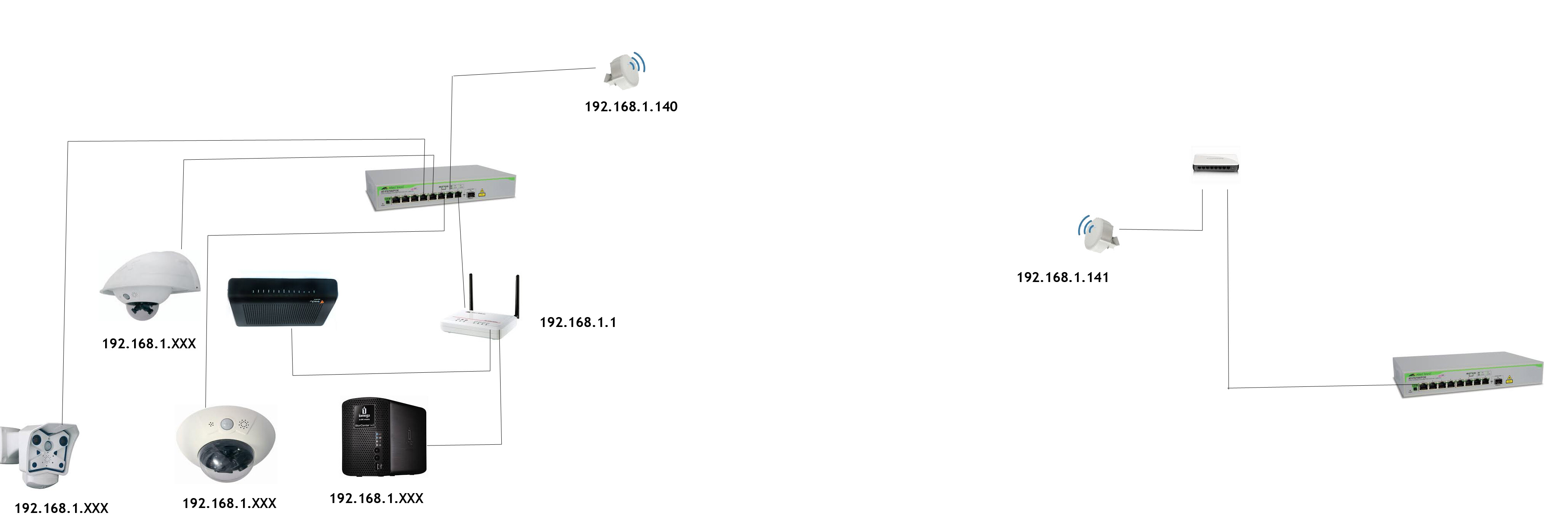

this is the setup

3

Look here and try this
http://www.wirelessinfo.be/index.php/mikrotik/pages/groovebridge

4

thank you i’ve got it working !!!

but my i have a -72 db and a download speed that gives me about 1400kb thats all.
my internet connection is 150mbit !
it doesn’t matter if i use 802.11 or nv2.

Settings are:

Frequency 2412 MHz
Band 2GHz-only-N
Channel width 20/40MHz HT above
Country Netherlands

5

Go to “wireless” klik on “advanced settings” by distance stood “dynamic” fill 1 km to both sites.
Vul 1 km distance in zowel op kant A als kant B
Channel width 20 Mhz give you a stabiler link.
Have you a line of site between point A and point B?
If you want give me your email adres and i help you further in dutch
If i help you give me karma pleace

6

Is the problem solved?
