Hello all,
I have struggled for so long so I have decided to create my own post, because I can’t figure it out.
current situation:
I have AppleTV, connected to the mikrotik, the Apple TV uses the mikrotik as DNS and GW.
I have 2 mikrotiks one with public ip “server” and second one hidden behind isp router “client”.
I run there pptp VPN and successfully managed my “client” to divert request for Czech content to run through VPN, mangle, prerouting, routing mark.
also I have static DNS to avoid DNS leaks
so I can have Czech free tv apps for kids working here in Australia.
after upgrade to ROS7, pptp shows, and protocol, not secured etc. so I did some research and find out that wireguard is the best and fast for streaming in compare to ipsec,l2tp etc.
so i have decided to go this way, create new tunnel and move everything from pptp to WG.
I also have there a bridge created that everything on port 3 is going to the pptp, but don’t worry about that for this instant (I would like to keep the pptp disabled, but functional.) there is also script in scheduler to fill the address-list - works like a charm.
so now:
“server” public IP, port 13231 open, peer created, UPDATED: now I have handshakebut it just doesn’t handshake. configured as roadwarrior from this post:
https://help.mikrotik.com/docs/display/ROS/WireGuard
wanted result:
I would kindly ask for help to: have active and working WG VPN with all marked as CZ_VPN packets goes through it, and also for all static DNS request defined below.
I read a lot of mducharme’s and anav posts pod none of them kind of helped me to success
I am attaching the client (roadwarior config)
# 2023-10-15 10:57:01 by RouterOS 7.11.2
# software id = xxxx--xxxx
#
# model = RB750Gr3
# serial number = xxxxxxxx
/interface pptp-client
add connect-to=81.xx.xxx.xxx max-mtu=1400 name=VPN_CZ user=xyz
/interface bridge
add name=bridge1
add name=bridge2
/interface wireguard
add listen-port=13231 mtu=1420 name=wireguard-client
/interface list
add name=WAN
add name=LAN
/interface lte apn
set [ find default=yes ] ip-type=ipv4 use-network-apn=no
/interface wireless security-profiles
set [ find default=yes ] supplicant-identity=MikroTik
/ip ipsec peer
add address=81.xx.xxx.xxx/32 disabled=yes exchange-mode=ike2 name=hub port=500
/ip ipsec profile
set [ find default=yes ] dh-group=modp1024 enc-algorithm=aes-256,aes-128
/ip ipsec proposal
set [ find default=yes ] auth-algorithms=sha256,sha1 enc-algorithms=\
aes-256-cbc pfs-group=none
/ip pool
add name=dhcp_pool0 ranges=192.168.2.2-192.168.2.254
/ip dhcp-server
add address-pool=dhcp_pool0 interface=bridge2 lease-time=10m name=dhcp1
/port
set 0 name=serial0
/ppp profile
add change-tcp-mss=yes name=IPsecVPN use-encryption=yes
/interface l2tp-client
add comment="new l2tp 12.10.23" connect-to=81.xx.xxx.xxx name=VPN_CZ_L2TP \
profile=IPsecVPN use-ipsec=yes user=xxx
/routing bgp template
set default disabled=no output.network=bgp-networks
/routing ospf instance
add disabled=no name=default-v2
/routing ospf area
add disabled=yes instance=default-v2 name=backbone-v2
/routing table
add fib name=CZ_VPN
add disabled=yes fib name=CT
/interface bridge nat
add action=accept chain=srcnat out-bridge=bridge2
/interface bridge port
add bridge=bridge1 ingress-filtering=no interface=ether1
add bridge=bridge1 ingress-filtering=no interface=ether2
add bridge=bridge2 ingress-filtering=no interface=ether3
add bridge=bridge1 ingress-filtering=no interface=ether4
add bridge=bridge1 ingress-filtering=no interface=ether5
add bridge=bridge2 ingress-filtering=no interface=WAN
/ip neighbor discovery-settings
set discover-interface-list=!dynamic
/ipv6 settings
set disable-ipv6=yes max-neighbor-entries=8192
/interface detect-internet
set detect-interface-list=all
/interface list member
add interface=ether1 list=LAN
add interface=ether2 list=LAN
add interface=ether3 list=LAN
add interface=ether4 list=LAN
add interface=ether5 list=LAN
add interface=VPN_CZ list=WAN
add interface=VPN_CZ_L2TP list=WAN
add interface=wireguard-client list=WAN
/interface ovpn-server server
set auth=sha1,md5
/interface wireguard peers
add allowed-address=0.0.0.0/0 endpoint-address=81.xx.xxx.xxx endpoint-port=\
13231 interface=wireguard-client public-key=\
"servers public xxxxxxxxxxxxxxxxxxxxxxxxxxx="
/ip address
add address=192.168.2.1/24 interface=bridge2 network=192.168.2.0
add address=192.168.110.33 disabled=yes interface=*A network=192.168.110.33
add address=192.168.100.2/24 interface=wireguard-client network=192.168.100.0
/ip dhcp-client
add interface=bridge1 use-peer-dns=no
/ip dhcp-server lease
add address=192.168.2.253 client-id=1:f0:b3:ec:16:76:4e mac-address=\
F0:B3:EC:16:76:4E server=dhcp1
add address=192.168.2.254 client-id=1:a8:51:ab:91:43:3d mac-address=\
A8:51:AB:91:43:3D server=dhcp1
/ip dhcp-server network
add address=192.168.2.0/24 dns-server=192.168.2.1 gateway=192.168.2.1 \
netmask=24
/ip dns
set allow-remote-requests=yes cache-size=4096KiB servers=8.8.4.4,8.8.8.8
/ip dns static
add disabled=yes forward-to=192.168.103.1 regexp=".*\\.o2tv\\.cz\$" type=FWD
add forward-to=192.168.100.1 regexp=".*\\.o2tv\\.cz\$" type=FWD
add disabled=yes forward-to=192.168.103.1 regexp=".*\\.iol\\.cz\$" type=FWD
add forward-to=192.168.100.1 regexp=".*\\.iol\\.cz\$" type=FWD
add disabled=yes forward-to=192.168.103.1 regexp=".*\\.ceskatelevize\\.cz\$" \
type=FWD
add forward-to=192.168.100.1 regexp=".*\\.ceskatelevize\\.cz\$" type=FWD
add disabled=yes forward-to=192.168.103.1 regexp=".*\\.czech-tv\\.cz\$" type=\
FWD
add forward-to=192.168.100.1 regexp=".*\\.czech-tv\\.cz\$" type=FWD
/ip firewall mangle
add action=mark-routing chain=prerouting new-routing-mark=CZ_VPN passthrough=\
yes src-address=192.168.2.254
add action=mark-routing chain=prerouting disabled=yes new-routing-mark=main \
passthrough=yes src-address=192.168.4.173
add action=mark-routing chain=prerouting comment="Sortie Voyo" \
dst-address-list=voyo new-routing-mark=CZ_VPN passthrough=yes \
src-address=192.168.4.36
add action=mark-routing chain=prerouting comment=ct dst-address-list=ct \
new-routing-mark=CZ_VPN passthrough=yes src-address=192.168.4.36
/ip firewall nat
add action=masquerade chain=srcnat disabled=yes out-interface=VPN_CZ
add action=masquerade chain=srcnat out-interface=wireguard-client
add action=masquerade chain=srcnat comment=L2TP disabled=yes out-interface=\
VPN_CZ_L2TP
add action=accept chain=srcnat disabled=yes dst-address=192.168.110.32/27 \
src-address=192.168.110.0/27
/ip ipsec identity
add my-id=fqdn:peer1.vpn.network peer=hub remote-id=fqdn:hub.vpn.network
/ip ipsec policy
add disabled=yes dst-address=192.168.110.0/27 peer=hub src-address=\
192.168.110.32/27 tunnel=yes
add disabled=yes dst-address=81.xx.xxx.xxx/32 peer=hub src-address=\
192.168.4.36/32 tunnel=yes
/ip route
add comment="PPTP routa pro voyo a CT" disabled=yes distance=1 dst-address=\
0.0.0.0/0 gateway=VPN_CZ pref-src="" routing-table=CZ_VPN scope=30 \
suppress-hw-offload=no target-scope=10
add disabled=yes dst-address=0.0.0.0/0 gateway=192.168.103.1 routing-table=CT
add disabled=yes distance=1 dst-address=0.0.0.0/0 gateway=VPN_CZ_L2TP \
pref-src="" routing-table=CZ_VPN scope=30 suppress-hw-offload=no \
target-scope=10
add comment="WG routa pro voyo a CT" disabled=no distance=1 dst-address=\
0.0.0.0/0 gateway=192.168.100.1 pref-src="" routing-table=CZ_VPN scope=30 \
suppress-hw-offload=no target-scope=10
add disabled=no dst-address=0.0.0.0/0 gateway=192.168.4.1 routing-table=main \
suppress-hw-offload=no
/ip smb
set enabled=yes interfaces=ether1
/ip smb shares
add directory=share1 name=share1
/ip smb users
add name=honza read-only=no
/routing bfd configuration
add disabled=no interfaces=all min-rx=200ms min-tx=200ms multiplier=5
/system clock
set time-zone-name=Europe/Prague
/system logging
add prefix=WG topics=wireguard
/system note
set show-at-login=no
/system routerboard settings
# Firmware upgraded successfully, please reboot for changes to take effect!
set auto-upgrade=yes
/system scheduler
add interval=10s name=ct on-event=":global ajouteIP do={\r\
\n :if ([:len [/ip firewall address-list find address=\"\$nouvelleIP\" an\
d list=\"ct\"]] = 0) do={\r\
\n /ip firewall address-list add list=\"ct\" address=\$nouvelleIP timeo\
ut=05:00:00\r\
\n }\r\
\n}\r\
\n\r\
\n:local myServers { \"ivysilani\";\"ceskatelevize\";\"seznam\";\"stream\"\
;\"o2tv\";\"czech-tv\";\"iol\"}\r\
\n/ip dns cache all {\r\
\n :foreach i in=\$myServers do={\r\
\n :foreach j in=[find where (name~\$i)] do={\r\
\n :local myName [get \$j name]\r\
\n :local myType [get \$j type]\r\
\n :local myData [get \$j data]\r\
\n :if (\$myType = \"A\") do={\r\
\n \$ajouteIP nouvelleIP=\$myData\r\
\n }\r\
\n\r\
\n :if (\$myType = \"CNAME\") do={\r\
\n :local ipResolue [:resolve \"\$myData\"];\r\
\n \$ajouteIP nouvelleIP=\$ipResolue\r\
\n }\r\
\n }\r\
\n }\r\
\n}" policy=\
ftp,reboot,read,write,policy,test,password,sniff,sensitive,romon \
start-time=startup
add interval=10s name=voyo on-event=":global ajouteIP do={\r\
\n :if ([:len [/ip firewall address-list find address=\"\$nouvelleIP\" an\
d list=\"voyo\"]] = 0) do={\r\
\n /ip firewall address-list add list=\"voyo\" address=\$nouvelleIP tim\
eout=05:00:00\r\
\n }\r\
\n}\r\
\n\r\
\n:local myServers { \"voyo\";\"cra\";\"nova\";\"sledovanitv\";\"imedia\";\
\"sdn\"}\r\
\n/ip dns cache all {\r\
\n :foreach i in=\$myServers do={\r\
\n :foreach j in=[find where (name~\$i)] do={\r\
\n :local myName [get \$j name]\r\
\n :local myType [get \$j type]\r\
\n :local myData [get \$j data]\r\
\n :if (\$myType = \"A\") do={\r\
\n \$ajouteIP nouvelleIP=\$myData\r\
\n }\r\
\n\r\
\n :if (\$myType = \"CNAME\") do={\r\
\n :local ipResolue [:resolve \"\$myData\"];\r\
\n \$ajouteIP nouvelleIP=\$ipResolue\r\
\n }\r\
\n }\r\
\n }\r\
\n}" policy=\
ftp,reboot,read,write,policy,test,password,sniff,sensitive,romon \
start-time=startup
add interval=45m name=cloudns on-event="/tool fetch url=\"https://ipv4.cloudns\
.net/api/dynamicURL/\?q=NTE5MjU5NDozNDI5MTQxODY6MWMzMGFiYTZiMjI3ZWIwOTllNj\
dkOTRjMTM5ZmVkMjlhYjk4NjAwYzQ5MWRiZTRjNzk0YTA3MjIzZDdiMWQ3Mg\" mode=https" \
policy=ftp,reboot,read,write,policy,test,password,sniff,sensitive,romon \
start-time=startup
/system script
add dont-require-permissions=no name=voyo owner=admin policy=\
ftp,reboot,read,write,policy,test,password,sniff,sensitive,romon source=":\
global ajouteIP do={\r\
\n :if ([:len [/ip firewall address-list find address=\"\$nouvelleIP\" an\
d list=\"voyo\"]] = 0) do={\r\
\n /ip firewall address-list add list=\"voyo\" address=\$nouvelleIP tim\
eout=02:00:00\r\
\n }\r\
\n}\r\
\n\r\
\n:local myServers { \"voyo\";\"cra\";\"nova\"}\r\
\n/ip dns cache all {\r\
\n :foreach i in=\$myServers do={\r\
\n :foreach j in=[find where (name~\$i)] do={\r\
\n :local myName [get \$j name]\r\
\n :local myType [get \$j type]\r\
\n :local myData [get \$j data]\r\
\n :if (\$myType = \"A\") do={\r\
\n \$ajouteIP nouvelleIP=\$myData\r\
\n }\r\
\n\r\
\n :if (\$myType = \"CNAME\") do={\r\
\n :local ipResolue [:resolve \"\$myData\"];\r\
\n \$ajouteIP nouvelleIP=\$ipResolue\r\
\n }\r\
\n }\r\
\n }\r\
\n}"
add dont-require-permissions=no name=cloudns owner=admin policy=\
ftp,reboot,read,write,policy,test,password,sniff,sensitive,romon source="/\
tool fetch url=\"https://ipv4.cloudns.net/api/dynamicURL/\?q=xxxxxxxxNTE5MjU5NDozN\
DI5Mg\" mode=https"
/tool sniffer
set file-limit=20000KiB file-name=mac filter-interface=ether4 memory-limit=\
2000KiB
thank you very much, I wish so I could crack it by myself, as I did with the packets marking, sending through pptp vpn only what needed. but This costed me 3 days and 3 nighters and still no results…
UPDATE: I managed to have a handshake, and ping through the tunnel, and it looks like some the data goes through it as well, there was GW for default internet missing, added to config above
now I need to send the static DNS and question is, can I make it faster? the pptp looks much faster than wireguard at this stage. I guess somewhere might be an user error in filtering or data going through
thank you very much to everyone for help…

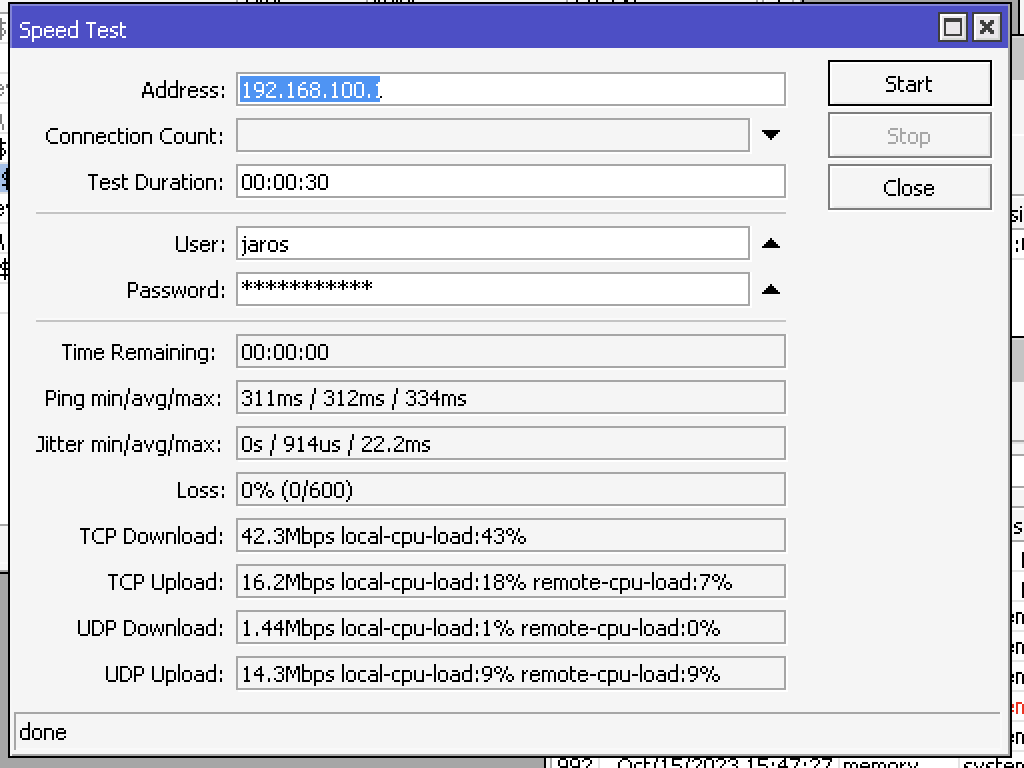

and also was able to compare the tunnel capabilities (I have 50Mbps connection)
