MikroTik v7, CAPsMAN and CAPs, WiFi users through CAPs cannot obtain IP address from CAPsMAN

RouterOS General
1

Problem is: MikroTik with CAPsMAN can see wifi interfaces from CAPs but users who try to join to wifi network cannot obtain IP addresses from CAPsMAN device.

Hi,

I have very simple network with one MikroTik device and CAPsMAN on it and three other MikroTik devices with CAP setup on them.

MikroTik with CAPsMan has the following configuration
wanInterface: DHCP client
lanInterface: Bridge1, DHCP server1
wifiInterfacesFromCAPs: Bridge2, DHCP server2

MikroTik’s with CAP on them has the following configuration
wanInterface: DHCP client
lanInterface: Bridge1, DHCP server1
wifiInterface: CAP mode

and nothing else.


All MikroTik devices have RouterOS latest version on them v.7.15.1, and all CAPs are directly connected to MikroTik CAPsMAN, each on separated physical port of CAPsMAN device.
It is very simple network with very simple configuration.
CAPsMAN can see all wifi interfaces from CAP and thay are grouped in the bridge on capsman side (Bridge2). Bridge2 has its own address and I created dhcp server2 on bridge2.
When users want to join on WiFi network through CAPs they cannot obtain IP address from CAPsMAN.

Where I get wrong?
Can anyone could help me to solve this problem?

2

Were the CAP devices reset to CAPS mode ?
If not, can you already do that ?

If that doesn’t help, you may want to provide config for both capsman manager and 1 of the caps devices.
Terminal
/export file=anynameyouwish
Got to Files and move export of config to your PC
Edit export and obfuscate serial, wanip, … any sensitive info.
Repeat for caps device
Copy/paste both exports here between [__code] quotes for easier readability (each export in separate block).

3

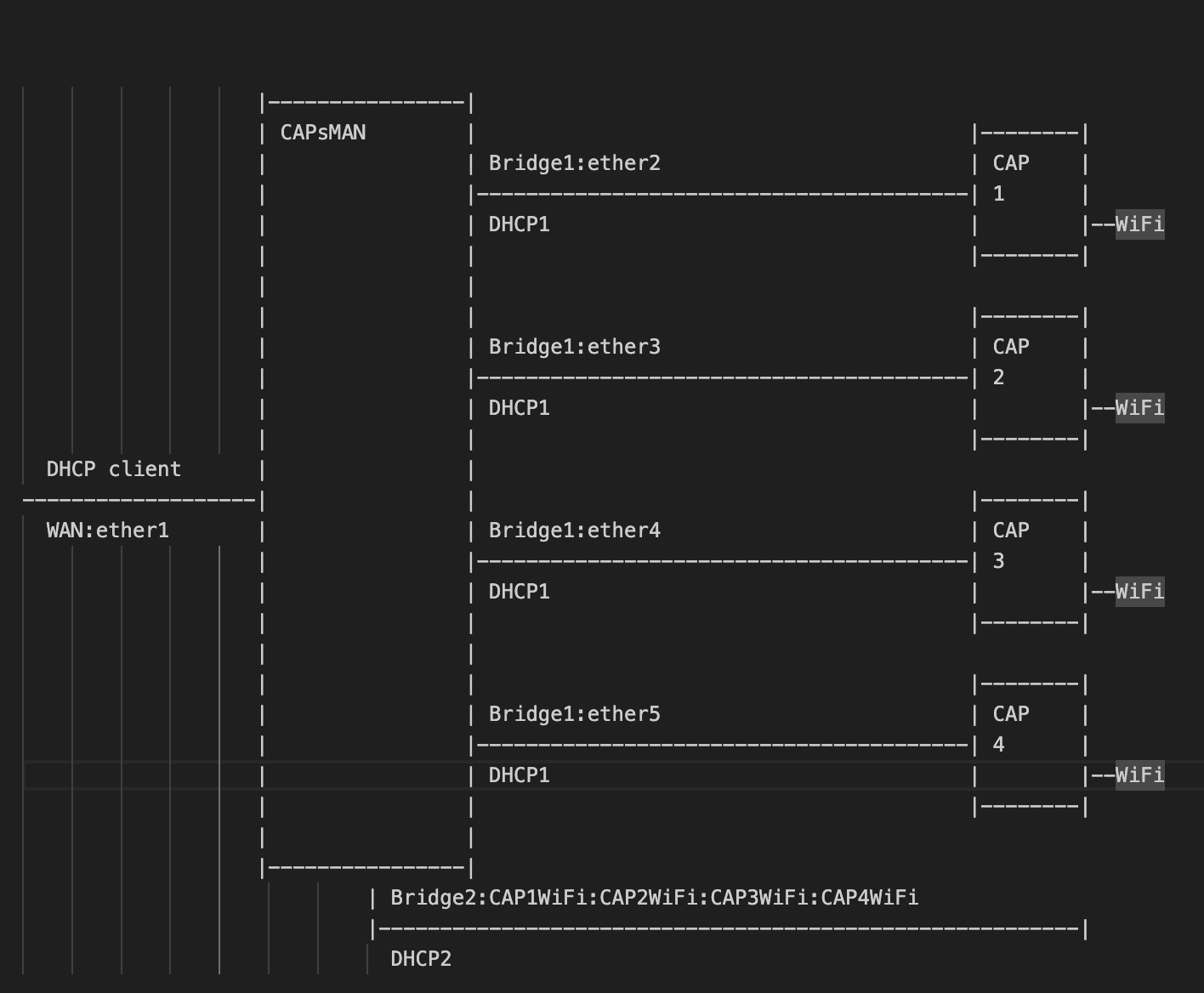

This is my Network schema.
See picture in attachment.
Screenshot 2024-06-26 at 11.52.16 AM.png

4

From that screenshot I can already see we NEED the exports of your config (controller and caps).
You should not need 2 bridges…

You also may have to clarify why you think 2 bridges are needed ? What are you trying to do there ?

5

Hi, I will prepare export file for few minutes.

I want to separate WiFi users from LAN users.

6

################################################################################################
This is configuration from CAPsMAN:

# 2024-06-26 12:44:18 by RouterOS 7.15.1
# model = CCR2004-16G-2S+

/interface bridge
                add name=bridge2
                add name=bridge1 port-cost-mode=short

/interface list
                add comment=wan name=wan
                add comment=lan name=lan

/interface wifi configuration
                add disabled=no mode=ap name=cfg-cap security.authentication-types="" connect-priority=0 .ft=yes .ft-over-ds=yes ssid="PMF WiFi"

/interface wifi
                add configuration=cfg-cap configuration.mode=ap disabled=no name=cap-wifi1 radio-mac=78:9A:18:5B:6B:D9
                add configuration=cfg-cap configuration.mode=ap disabled=no name=cap-wifi2 radio-mac=78:9A:18:5B:6F:7D
                add configuration=cfg-cap configuration.mode=ap disabled=no name=cap-wifi3 radio-mac=78:9A:18:5B:6F:51 security.connect-priority=0
                add configuration=cfg-cap configuration.mode=ap disabled=no name=cap-wifi4 radio-mac=78:9A:18:5B:6A:D1 security.connect-priority=0

/ip pool
                add name=dhcp_pool1 ranges=10.1.1.2-10.1.1.254
                add name=dhcp_pool2 ranges=10.1.2.2-10.1.2.254

/ip dhcp-server
                add address-pool=dhcp_pool1 interface=bridge1 lease-time=10m name=dhcp1
                add address-pool=dhcp_pool2 interface=bridge2 lease-time=10m name=dhcp2

/interface bridge port
                add bridge=bridge1 interface=ether2
                add bridge=bridge1 interface=ether3
                add bridge=bridge1 interface=ether4
                add bridge=bridge1 interface=ether5
                add bridge=bridge1 interface=ether6
                add bridge=bridge1 interface=ether7
                add bridge=bridge1 interface=ether8
                add bridge=bridge1 interface=ether9
                add bridge=bridge1 interface=ether10
                add bridge=bridge1 interface=ether11
                add bridge=bridge1 interface=ether12
                add bridge=bridge1 interface=ether13
                add bridge=bridge1 interface=ether14
                add bridge=bridge1 interface=ether15
                add bridge=bridge1 interface=ether16

                add bridge=bridge2 interface=cap-wifi1
                add bridge=bridge2 interface=cap-wifi2
                add bridge=bridge2 interface=cap-wifi3
                add bridge=bridge2 interface=cap-wifi4

/ip firewall connection tracking
                set udp-timeout=10s

/interface list member
                add comment=wan interface=ether1 list=wan

                add interface=ether2 list=lan
                add interface=ether3 list=lan
                add interface=ether4 list=lan
                add interface=ether5 list=lan
                add interface=ether6 list=lan
                add interface=ether7 list=lan
                add interface=ether8 list=lan
                add interface=ether9 list=lan
                add interface=ether10 list=lan
                add interface=ether11 list=lan
                add interface=ether12 list=lan
                add interface=ether13 list=lan
                add interface=ether14 list=lan
                add interface=ether15 list=lan
                add interface=ether16 list=lan

                add comment=lan interface=bridge1 list=lan

                add comment=lan interface=bridge2 list=lan

                add comment=lan interface=cap-wifi1 list=lan
                add comment=lan interface=cap-wifi2 list=lan
                add comment=lan interface=cap-wifi3 list=lan

/interface wifi capsman
                set enabled=yes interfaces=lan package-path="" require-peer-certificate=no upgrade-policy=none

/interface wifi provisioning
                add action=create-dynamic-enabled disabled=no master-configuration=cfg-cap radio-mac=00:00:00:00:00:00

/ip address
                add address=10.1.1.1/24 interface=bridge1 network=10.1.1.0
                add address=10.1.2.1/24 comment=CAPsMAN interface=bridge2 network=10.1.2.0

/ip dhcp-client
                add interface=ether1

/ip dhcp-server lease
                add address=10.1.1.15 client-id=1:78:9a:18:5b:6f:48 comment=MkTk-R-5 lease-time=30m mac-address=78:9A:18:5B:6F:48 server=dhcp1
                add address=10.1.1.14 client-id=1:78:9a:18:5b:6f:74 comment=MkTk-R-4 lease-time=30m mac-address=78:9A:18:5B:6F:74 server=dhcp1
                add address=10.1.1.13 client-id=1:78:9a:18:5b:6b:d0 comment=MkTk-R-3 lease-time=30m mac-address=78:9A:18:5B:6B:D0 server=dhcp1
                add address=10.1.1.11 client-id=1:4c:5e:c:e0:e1:9d  comment=MkTk-R-2 lease-time=30m mac-address=4C:5E:0C:E0:E1:9D server=dhcp1
                add address=10.1.1.2  client-id=ff:58:fb:b4:aa:0:2  comment=SRV-AAAA lease-time=30m mac-address=00:24:81:E4:8D:36 server=dhcp1
                add address=10.1.1.12 client-id=1:78:9a:18:5b:6a:c8 comment=MkTk-R-6 lease-time=30m mac-address=78:9A:18:5B:6A:C8 server=dhcp1

/ip dhcp-server network
                add address=10.1.1.0/24 dns-server=185.228.168.10,185.228.169.11 gateway=10.1.1.1
                add address=10.1.2.0/24 dns-server=185.228.168.10,185.228.169.11 gateway=10.1.2.1

/ip dns
                set allow-remote-requests=yes servers=185.228.168.10,185.228.169.11

/ip firewall filter
                add action=drop chain=input dst-port=53 in-interface=ether1 protocol=tcp
                add action=drop chain=input dst-port=53 in-interface=ether1 protocol=udp

/ip firewall nat
                add action=masquerade chain=srcnat out-interface=ether1

/ip route
                add disabled=no dst-address=0.0.0.0/0 gateway=ether1 routing-table=main suppress-hw-offload=no

/system identity
                set name=MkTk-R-1

/system note
                set show-at-login=no

/system routerboard settings
                set enter-setup-on=delete-key

################################################################################################
This is configuration for CAP:

# 2024-06-26 12:44:39 by RouterOS 7.15.1
# model = L009UiGS-2HaxD

/interface bridge
                    add name=bridge1

/interface wifi
                    # managed by CAPsMAN
                    # mode: AP, SSID: PMF WiFi, channel: 2467/ax/eC
                    set [ find default-name=wifi1 ] configuration.manager=capsman .mode=ap .ssid=MkTk-AP-2/5G-R-3 disabled=no security.connect-priority=0

/interface list
                    add name=wan
                    add name=lan
                    add comment=cap-wifi name=cap-wifi

/ip pool
                    add name=dhcp_pool_bridge1 ranges=10.3.1.2-10.3.1.254

/ip dhcp-server
                    add address-pool=dhcp_pool_bridge1 interface=bridge1 name=dhcp_bridge1

/port
                    set 0 name=serial0

/interface bridge port
                    add bridge=bridge1 interface=ether2
                    add bridge=bridge1 interface=ether3
                    add bridge=bridge1 interface=ether4
                    add bridge=bridge1 interface=ether5
                    add bridge=bridge1 interface=ether6
                    add bridge=bridge1 interface=ether7
                    add bridge=bridge1 interface=ether8

/interface list member
                    add interface=ether1 list=wan

                    add interface=bridge1 list=lan

                    add interface=ether2 list=lan
                    add interface=ether3 list=lan
                    add interface=ether4 list=lan
                    add interface=ether5 list=lan
                    add interface=ether6 list=lan
                    add interface=ether7 list=lan
                    add interface=ether8 list=lan

                    add interface=wifi1 list=lan

/interface wifi cap
                    set caps-man-addresses=10.1.1.1 discovery-interfaces=ether1 enabled=yes

/ip address
                    add address=10.3.1.1/24 interface=bridge1 network=10.3.1.0

/ip dhcp-client
                    add interface=ether1 use-peer-dns=no

/ip dhcp-server lease
                    add address=10.3.1.250 client-id=1:94:57:a5:16:9e:76 mac-address=94:57:A5:16:9E:76 server=dhcp_bridge1

/ip dhcp-server network
                    add address=10.3.1.0/24 gateway=10.3.1.1

/ip dns
                    set allow-remote-requests=yes servers=185.228.168.10,185.228.169.11

/ip firewall filter
                    add action=drop chain=input dst-port=53 protocol=tcp
                    add action=drop chain=input dst-port=53 protocol=udp

/ip firewall nat
                    add action=masquerade chain=srcnat out-interface=ether1

/system identity
                    set name=MkTk-R-3

/system note
                    set show-at-login=no

/system routerboard settings
                    set enter-setup-on=delete-key
7

Added code quotes, makes it much easier to read.
Comment: This is edited config !? Is it complete ?

Your cap device is L009 ? Are they all the same ?

Again:
why 2 bridges on capsman controller ? Still no explanation … but I think I know why. Waiting for your explanation.

Basic problem you have:
your wifi interfaces are not part of the bridge on cap device. So DHCP request can not get to the controller or back to wireless clients.
Reset to caps mode … or add those interfaces manually on caps device (you can add them to bridge using “dynamic”, then whatever capsman comes up with, it will be added to bridge)

Also, you may want to read this tutorial, looks to me you may have to implement VLANs.
https://help.mikrotik.com/docs/display/ROS/WiFi#WiFi-CAPsMAN-CAPVLANconfigurationexample:

8

Hi,

This is original config file but I deleted some part of code which is not important for this kind of problem such as l2tp service and similar but everything else is original.

Yes, all CAPs devices are the same.

2 bridges on capsman controller? Because I want separate wifi users from lan users. As you can see, my CAPsMAN has 16 lan interfaces but only 4 were singled out for CAPs.

9

Use VLAN.
And your problems will be solved.

10

Hi, can you explain me what you mean by that? Not to explain me how to create vlan but how to organize network in this scenario.

11

I’M HAVING A SIMILAR ISSUE TO YOU, SINCE UPDATING TO 7.12 OR LATER, MY CAP CAN’T GET DHCP ADDRESSES FROM CAPSMAN
