HI
We designed a MiniWisp with two Mikrotik CCR 1036, one from PPPoE Server MTU 1480 and the other from Load Balancing PCC 5 WAN ISP.
We have 5 ubiquitous M5 Titanium antennas where our 280 users connect. User CPEs consist of Ubiquiti NanoBeam M5 and TPLINK router PPPoE MTU 1480
In the Mikrotik PPPoE Server with RADIUS Authentication (freeradius) we have 5 profiles and we use Queues pcq-default-download, the total limit is automatically set to default-small queue size 100.
The ethernet have the queue set to multi-queue-ethernet-default queue size 100.
We have problems freezing at peak hours and it gets smaller in the day, it looks like a band problem but we are not sure.
We have about 280 users and not everyone is browsing at the same time, following the cuts in VDSL connectivity:
WAN1 is 50 mega / 10 mega
WAN2 is 50 mega / 10 mega
WAN3 is 50 mega / 10 mega
WAN4 is 50 mega / 10 mega
WAN5 is 50 mega / 10 mega
Radius Services:
Service of 10 mega / 2 mega
Service of 20 mega / 4 mega
Service of 30 mega / 6 mega

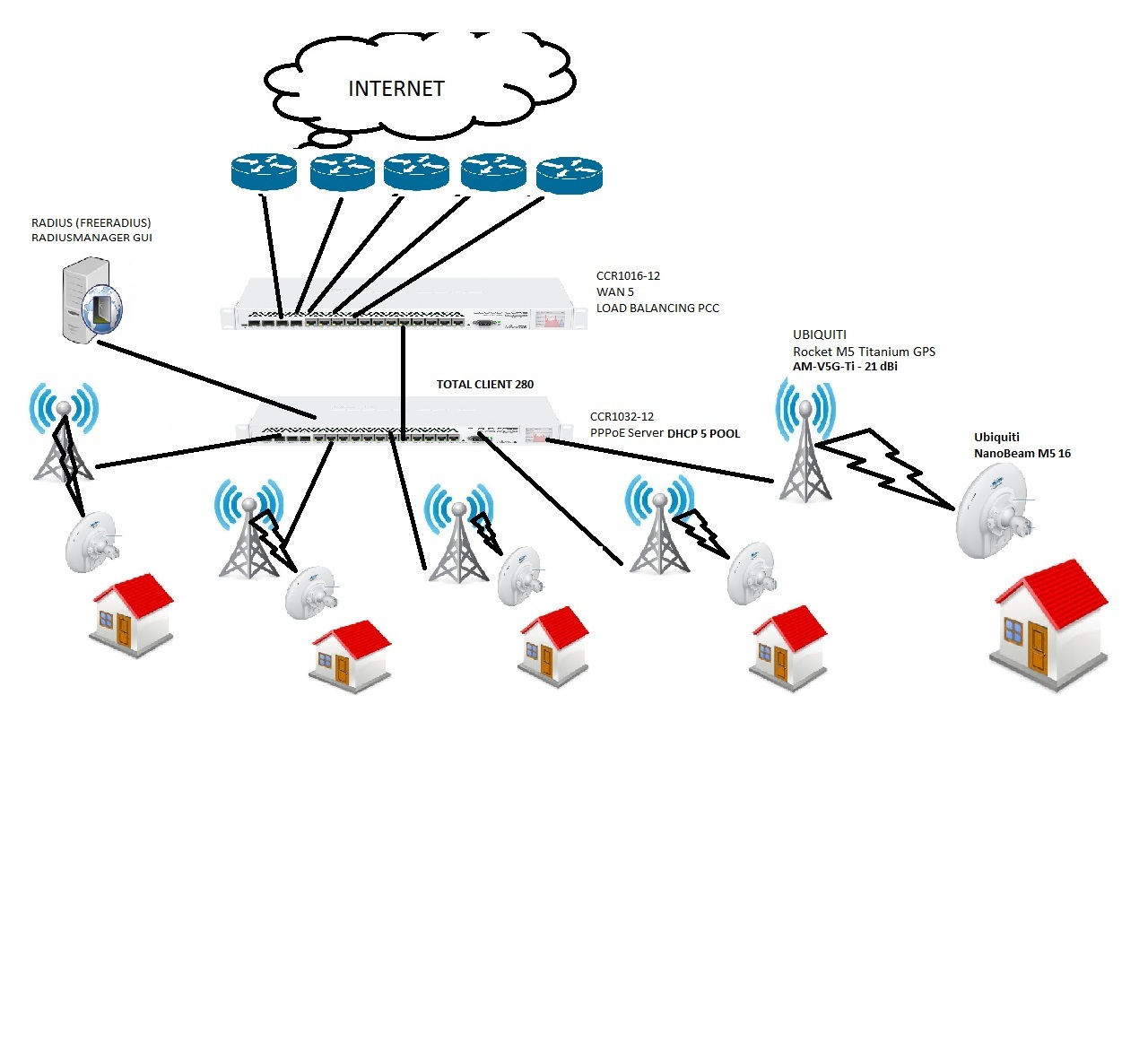

We attach microcontroller configuration and an architecture scheme.
HELP ME
Thanks!
Gaetano
CCR 1032-12 PPPoE Server.txt (9.27 KB)
CCR 1016-12 LoadBalancing PCC.txt (15.3 KB)
