Missing OSPF route

RouterOS Forwarding Protocols
1

Good Day,

I am receiving a route from an external peer which I am injecting into OSPF for our other routers to use.

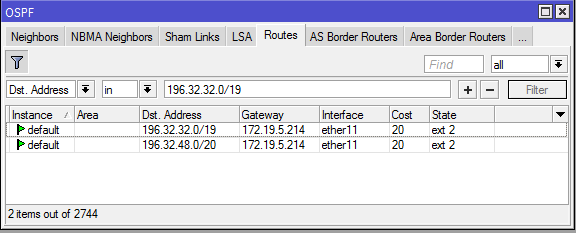

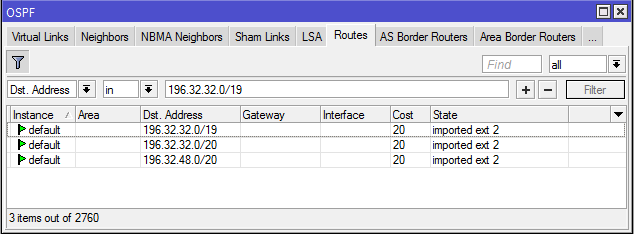

For one specific route it is being injected successfully but OSPF seems to be rejecting it (IXP is the source of the route for our network, AGZ is one of the routers OSPF peered with it).

Most routes are getting through fine specifically 196.32.32.0/20 is not accepted by the other routers connected to it.

IXP OSPF config:

/routing ospf instance
set [ find default=yes ] in-filter="" out-filter="" redistribute-bgp=as-type-2 redistribute-connected=as-type-1 router-id=172.18.0.150
/routing ospf network
add area=backbone comment=IXP>LAV network=172.19.0.232/29
add area=backbone comment=IXP>AGZ network=172.19.5.208/29

Any way to debug this?

  • David
2

I’m getting http errors posting the second supout.

Is there any other information that would be applicable?
not-redistributing-196.32.32.0-19-IXP.zip (1020 KB)
