Missing routing options (routeros 7.1rc4)

RouterOS RouterOS beta
1

I actually want to use my Mikrotik router as a router. But the “type” option has been omitted for the routes as an example.
How do I set a network block to be unreachable?

#      DST-ADDRESS              GATEWAY                  DISTANCE
 0 A SU xxxx:xxxx:xxx::/48                                        1

 /ipv6 route
add distance=1 dst-address=xxxx:xxxx:xxx::/48 type=unreachable

Options 6.x:

bgp-as-path  bgp-atomic-aggregate  bgp-communities  bgp-local-pref  bgp-med  bgp-origin  bgp-prepend  check-gateway  comment  copy-from  disabled  distance  dst-address  gateway  route-tag  scope  target-scope  type
[admin@MikroTik] /ipv6 route> add

Options 7.1rc4:

blackhole  check-gateway  comment  copy-from  disabled  distance  dst-address  gateway  pref-src  routing-table  scope  suppress-hw-offload  target-scope  vrf-interface
[admin@MikroTik] /ipv6/route> add

A function that I used very intensively no longer exists:

/ip(v6) route check

In addition, in many places (or everywhere?) it no longer works by entering a question mark to display the available options. Does it work differently now?
6.x:
7.1rc4:

2

  • Routes are for fast traffic black-holing. If you want to return specific ICMP messages then you will have to use firewall.

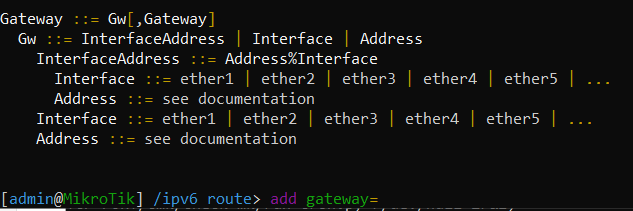

  • Use F1 instead of ?

3

Sorry for my maybe stupid question.
But how can i mimic this behaviour as simply as possible as a firewall rule?

Flags: X - disabled, A - active, D - dynamic, C - connect, S - static, r - rip, o - ospf, b - bgp, U - unreachable
 #      DST-ADDRESS              GATEWAY                  DISTANCE
 0 A S  2000::/3                 fe80::333:8400:fb0e:7...        1
 1 A SU 2001:db8::/32                                                    1
 2 A S  2001:db8:bec0::/48       ether2                            1
 3 A S  2001:db8:bec1::/48       ether3                            1
 4 A SU 2001:db8:bec2::/48                                   1
 3 A S  2001:db8:bec2:beef::/64       ether4                            1

 /ipv6 route
add distance=1 dst-address=2000::/3 gateway=fe80::333:8400:fb0e:7c0%ether1
add distance=1 dst-address=2001:db8::/32 type=unreachable
add distance=1 dst-address=2001:db8:bec0::/48 gateway=ether2
add distance=1 dst-address=2001:db8:bec1::/48 gateway=ether3
add distance=1 dst-address=2001:db8:bec2::/48 type=unreachable
add distance=1 dst-address=2001:db8:bec2:beef::/64 gateway=ether4

I know how I would do it, but that would inflate my firewall further.

Thanks

4

There is a good option here (and discussion below it)
it’s for ipv4, presumably similar is applicable to v6

http://forum.mikrotik.com/t/v7-1beta5-development-is-released/147722/1

5

Thank you for your answer, but using a bridge looks like a bloody hack/ugly workaround to me.
I can’t understand why mikrotik removes a working solution…
I am upset

6

The reasons are also mentioned in the topic linked above.

7

The question “Is blackhole or unreachable better?” cannot be answered clearly for all users. My concern is that the DECISION whether you WANT blackhole or unreachable should be in the hands of the respective network administrator. There are certainly legitimate reasons for both.

I don’t see any reason to delete features that were already implemented in the substructure (Linux kernel / Netfilter / IPRoute2).

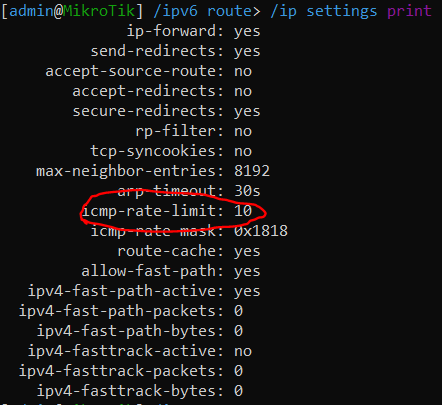

There are various ways to protect yourself from abuse.

https://www.kernel.org/doc/Documentation/networking/ip-sysctl.txt


icmp/*:
ratelimit - INTEGER
Limit the maximal rates for sending ICMPv6 messages.
0 to disable any limiting,
otherwise the minimal space between responses in milliseconds.
Default: 1000

https://man7.org/linux/man-pages/man7/icmp.7.html

Linux limits the rate of ICMP error packets to each destination.
ICMP_REDIRECT and ICMP_DEST_UNREACH are also limited by the
destination route of the incoming packets.
