Hi

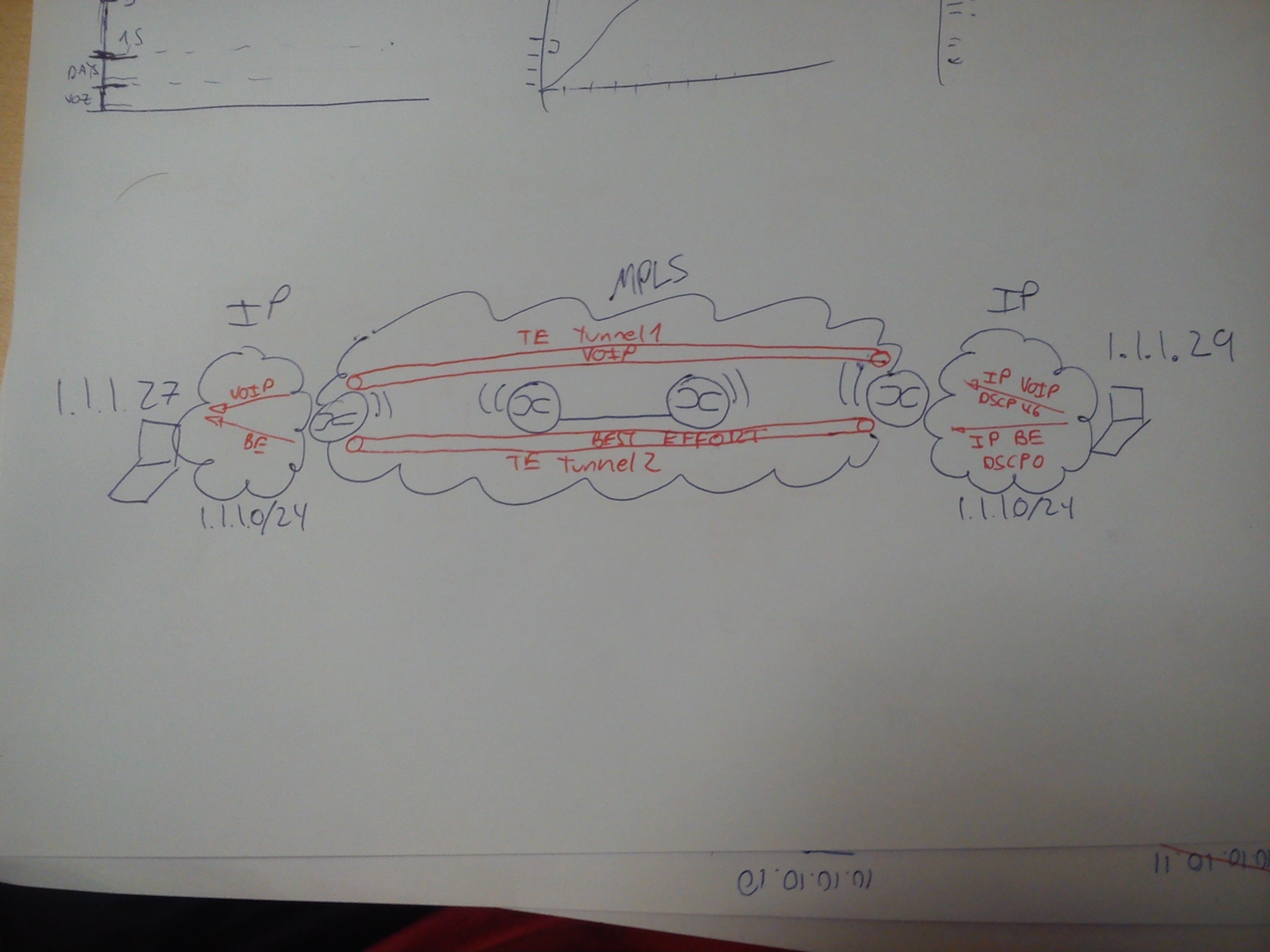

I am trying to deploy a MPLS network which allow me forward traffic from one PC to another PC using traffic engineering. Mi goal is shown in the attached image.
The thing is I would like limit the bandwidth of the path for different flows. For example, if I have 1 Mbps available in my link, I would like set for VOIP traffic a TE tunnel of 300kbps, for Best Effort traffic a TE tunnel 500kbps and leave 200kbps always empty.
I am already bridging both IP networks to vpls tunnel, and vpls interface is running onto TE tunnel. This works well when only 1 tunnel is running and there is no traffic classes. I can limit the traffic to 300kbps. However I am stucked because I dont know how to create another TE tunnel using the same path and how to separate traffic and forward it in the suituable tunnel when is entering by a bridged interface.
Should I use bridging or there is another easier alternative? Transparent bridging is not necessary really, I am using it because I am following this Mikrotik Tutorial http://wiki.mikrotik.com/wiki/Transparently_Bridge_two_Networks_using_MPLS
Any Idea or suggestion??
