hi all ,
im trying to setup multicast between mikrotik and cisco router
the topology as below :
--------eth2–mikrotik–eth1-----internet---------Cisco Router----
here is more details here
the transmitter and reciver can ping them by thier unicast addresses , i have made a routing for two lan subnets between cisco and mikrotik
but there is no multicast @ the reciver in the mikrotik side !!!
now on cisco , i setup it and i tested it with another cisco router and it was success .
but
recently i replaced the cisco router with mikrotik router , but i cant receive multicast
i dont know why ?!!!
i disabled firewall but no luck
i will paste config of mikrotik
[admin@MikroTik] > /export
jan/04/2002 02:24:15 by RouterOS 5.26
software id = M9PP-XUBH
/interface ethernet
set 0 arp=enabled auto-negotiation=yes bandwidth=unlimited/unlimited disabled=
no full-duplex=yes l2mtu=1520 mac-address=D4:CA:6D:35:89:6F master-port=
none mtu=1500 name=ether1-gateway speed=100Mbps
set 1 arp=enabled auto-negotiation=yes bandwidth=unlimited/unlimited disabled=
no full-duplex=yes l2mtu=1520 mac-address=D4:CA:6D:35:89:70 master-port=
none mtu=1500 name=ether2-master-local speed=100Mbps
set 2 arp=enabled auto-negotiation=yes bandwidth=unlimited/unlimited disabled=
no full-duplex=yes l2mtu=1520 mac-address=D4:CA:6D:35:89:71 master-port=
ether2-master-local mtu=1500 name=ether3-slave-local speed=100Mbps
set 3 arp=enabled auto-negotiation=yes bandwidth=unlimited/unlimited disabled=
no full-duplex=yes l2mtu=1520 mac-address=D4:CA:6D:35:89:72 master-port=
ether2-master-local mtu=1500 name=ether4-slave-local speed=100Mbps
set 4 arp=enabled auto-negotiation=yes bandwidth=unlimited/unlimited disabled=
yes full-duplex=yes l2mtu=1520 mac-address=D4:CA:6D:35:89:73 master-port=
ether2-master-local mtu=1500 name=ether5-slave-local speed=100Mbps
/interface gre
add disabled=no dscp=0 l2mtu=65535 local-address=x.x.240.6 mtu=1400 name=
Ahmd remote-address=z.z.160.200
/interface ethernet switch
set 0 mirror-source=none mirror-target=none name=switch1 switch-all-ports=yes
/ip ipsec proposal
set [ find default=yes ] auth-algorithms=sha1 disabled=no enc-algorithms=3des
lifetime=30m name=default pfs-group=modp1024
/ip pool
add name=default-dhcp ranges=192.168.88.10-192.168.88.254
/ip dhcp-server
add address-pool=default-dhcp authoritative=after-2sec-delay bootp-support=
static disabled=yes interface=ether2-master-local lease-time=3d name=
default
/port
set 0 baud-rate=auto data-bits=8 flow-control=none name=serial0 parity=none
stop-bits=1
/ppp profile
set 0 change-tcp-mss=yes name=default only-one=default use-compression=default
use-encryption=default use-mpls=default use-vj-compression=default
set 1 change-tcp-mss=yes name=default-encryption only-one=default
use-compression=default use-encryption=yes use-mpls=default
use-vj-compression=default
/queue type
set 0 kind=pfifo name=default pfifo-limit=50
set 1 kind=pfifo name=ethernet-default pfifo-limit=50
set 2 kind=sfq name=wireless-default sfq-allot=1514 sfq-perturb=5
set 3 kind=red name=synchronous-default red-avg-packet=1000 red-burst=20
red-limit=60 red-max-threshold=50 red-min-threshold=10
set 4 kind=sfq name=hotspot-default sfq-allot=1514 sfq-perturb=5
set 5 kind=none name=only-hardware-queue
set 6 kind=mq-pfifo mq-pfifo-limit=50 name=multi-queue-ethernet-default
set 7 kind=pfifo name=default-small pfifo-limit=10
/routing bgp instance
set default as=65530 client-to-client-reflection=yes disabled=no
ignore-as-path-len=no name=default out-filter=“” redistribute-connected=no
redistribute-ospf=no redistribute-other-bgp=no redistribute-rip=no
redistribute-static=no router-id=0.0.0.0 routing-table=“”
/routing ospf instance
set [ find default=yes ] disabled=no distribute-default=never in-filter=ospf-in
metric-bgp=auto metric-connected=20 metric-default=1 metric-other-ospf=auto
metric-rip=20 metric-static=20 name=default out-filter=ospf-out
redistribute-bgp=no redistribute-connected=no redistribute-other-ospf=no
redistribute-rip=no redistribute-static=no router-id=0.0.0.0
/routing ospf area
set [ find default=yes ] area-id=0.0.0.0 disabled=no instance=default name=
backbone type=default
/snmp community
set [ find default=yes ] addresses=0.0.0.0/0 authentication-password=“”
authentication-protocol=MD5 encryption-password=“” encryption-protocol=DES
name=public read-access=yes security=none write-access=no
/system logging action
set 0 memory-lines=100 memory-stop-on-full=no name=memory target=memory
set 1 disk-file-count=2 disk-file-name=log disk-lines-per-file=100
disk-stop-on-full=no name=disk target=disk
set 2 name=echo remember=yes target=echo
set 3 bsd-syslog=no name=remote remote-port=514 src-address=0.0.0.0
syslog-facility=daemon syslog-severity=auto target=remote
/user group
set read name=read policy=“local,telnet,ssh,reboot,read,test,winbox,password,web
,sniff,sensitive,api,!ftp,!write,!policy” skin=default
set write name=write policy=“local,telnet,ssh,reboot,read,write,test,winbox,pass
word,web,sniff,sensitive,api,!ftp,!policy” skin=default
set full name=full policy=“local,telnet,ssh,ftp,reboot,read,write,policy,test,wi
nbox,password,web,sniff,sensitive,api” skin=default
/interface bridge settings
set use-ip-firewall=no use-ip-firewall-for-pppoe=no use-ip-firewall-for-vlan=no
/interface ethernet switch port
set 0 vlan-header=leave-as-is vlan-mode=fallback
set 1 vlan-header=leave-as-is vlan-mode=fallback
set 2 vlan-header=leave-as-is vlan-mode=fallback
set 3 vlan-header=leave-as-is vlan-mode=fallback
set 4 vlan-header=leave-as-is vlan-mode=fallback
set 5 vlan-header=leave-as-is vlan-mode=fallback
/interface l2tp-server server
set authentication=pap,chap,mschap1,mschap2 default-profile=default-encryption
enabled=no keepalive-timeout=30 max-mru=1460 max-mtu=1460 mrru=disabled
/interface ovpn-server server
set auth=sha1,md5 certificate=none cipher=blowfish128,aes128 default-profile=
default enabled=no keepalive-timeout=60 mac-address=FE:20:45:1E:4C:98
max-mtu=1500 mode=ip netmask=24 port=1194 require-client-certificate=no
/interface pptp-server server
set authentication=mschap1,mschap2 default-profile=default-encryption enabled=
no keepalive-timeout=30 max-mru=1460 max-mtu=1460 mrru=disabled
/interface sstp-server server
set authentication=pap,chap,mschap1,mschap2 certificate=none default-profile=
default enabled=no keepalive-timeout=60 max-mru=1500 max-mtu=1500 mrru=
disabled port=443 verify-client-certificate=no
/ip accounting
set account-local-traffic=no enabled=no threshold=256
/ip accounting web-access
set accessible-via-web=no address=0.0.0.0/0
/ip address
add address=10.17.0.1/24 comment=“default configuration” disabled=no interface=
ether2-master-local network=10.17.0.0
add address=x.x.240.6/30 disabled=no interface=ether1-gateway network=
193.212.240.4
add address=172.16.21.2/24 disabled=no network=172.16.21.0
add address=172.16.40.2/24 disabled=no interface=Ahmd network=172.16.40.0
/ip dhcp-client
add add-default-route=yes comment=“default configuration”
default-route-distance=1 disabled=no interface=ether1-gateway use-peer-dns=
yes use-peer-ntp=yes
/ip dhcp-server config
set store-leases-disk=5m
/ip dhcp-server network
add address=192.168.88.0/24 comment=“default configuration” dhcp-option=“”
dns-server=192.168.88.1 gateway=192.168.88.1 ntp-server=“” wins-server=“”
/ip dns
set allow-remote-requests=yes cache-max-ttl=1w cache-size=2048KiB
max-udp-packet-size=4096 servers=“”
/ip dns static
add address=192.168.88.1 disabled=no name=router ttl=1d
/ip firewall connection tracking
set enabled=yes generic-timeout=10m icmp-timeout=10s tcp-close-timeout=10s
tcp-close-wait-timeout=10s tcp-established-timeout=1d tcp-fin-wait-timeout=
10s tcp-last-ack-timeout=10s tcp-syn-received-timeout=5s
tcp-syn-sent-timeout=5s tcp-syncookie=no tcp-time-wait-timeout=10s
udp-stream-timeout=3m udp-timeout=10s
/ip firewall service-port
set ftp disabled=no ports=21
set tftp disabled=no ports=69
set irc disabled=no ports=6667
set h323 disabled=no
set sip disabled=no ports=5060,5061 sip-direct-media=yes
set pptp disabled=no
/ip neighbor discovery
set ether1-gateway disabled=yes
set ether2-master-local disabled=no
set ether3-slave-local disabled=no
set ether4-slave-local disabled=no
set ether5-slave-local disabled=no
set Ahmd disabled=yes
/ip proxy
set always-from-cache=no cache-administrator=webmaster cache-hit-dscp=4
cache-on-disk=no enabled=no max-cache-size=unlimited
max-client-connections=600 max-fresh-time=3d max-server-connections=600
parent-proxy=0.0.0.0 parent-proxy-port=0 port=8080 serialize-connections=no
src-address=0.0.0.0
/ip route
add disabled=no distance=1 dst-address=0.0.0.0/0 gateway=x.x2.240.5 scope=30
target-scope=10
add disabled=no distance=1 dst-address=10.17.17.3/32 gateway=172.16.40.1 scope=
30 target-scope=10
add disabled=no distance=1 dst-address=10.17.17.3/32 gateway=172.16.40.1 scope=
30 target-scope=10
add disabled=no distance=1 dst-address=10.17.17.27/32 gateway=172.16.40.1
scope=30 target-scope=10
add disabled=no distance=1 dst-address=10.17.17.147/32 gateway=172.16.40.1
scope=30 target-scope=10
/ip service
set telnet address=“” disabled=no port=23
set ftp address=“” disabled=no port=21
set www address=“” disabled=no port=80
set ssh address=“” disabled=no port=22
set www-ssl address=“” certificate=none disabled=no port=443
set api address=“” disabled=yes port=8728
set winbox address=“” disabled=no port=8291
/ip smb
set allow-guests=yes comment=MikrotikSMB domain=MSHOME enabled=no interfaces=
all
/ip smb shares
set [ find default=yes ] comment=“default share” directory=/pub disabled=no
max-sessions=10 name=pub
/ip smb users
set [ find default=yes ] disabled=no name=guest password=“” read-only=yes
/ip socks
set connection-idle-timeout=2m enabled=no max-connections=200 port=1080
/ip traffic-flow
set active-flow-timeout=30m cache-entries=4k enabled=yes inactive-flow-timeout=
15s interfaces=all
/ip upnp
set allow-disable-external-interface=yes enabled=no show-dummy-rule=yes
/port firmware
set directory=firmware ignore-directip-modem=no
/ppp aaa
set accounting=yes interim-update=0s use-radius=no
/queue interface
set ether1-gateway queue=only-hardware-queue
set ether2-master-local queue=only-hardware-queue
set ether3-slave-local queue=only-hardware-queue
set ether4-slave-local queue=only-hardware-queue
set ether5-slave-local queue=only-hardware-queue
/radius incoming
set accept=no port=3799
/routing bfd interface
set [ find default=yes ] disabled=no interface=all interval=0.2s min-rx=0.2s
multiplier=5
/routing igmp-proxy
set query-interval=2m5s query-response-interval=10s quick-leave=yes
/routing mme
set bidirectional-timeout=2 gateway-class=none gateway-keepalive=1m
gateway-selection=no-gateway origination-interval=5s preferred-gateway=
0.0.0.0 timeout=1m ttl=50

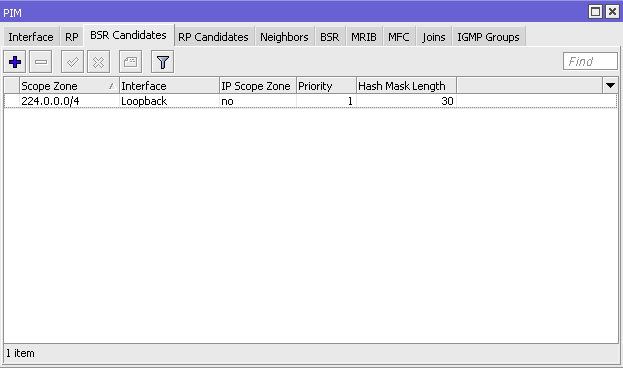

/routing pim
set switch-to-spt=yes switch-to-spt-bytes=0 switch-to-spt-interval=1m40s
/routing pim interface
add alternative-subnets=“” assert-override-interval=3s assert-time=3m disabled=
no dr-priority=1 hello-holdtime=1m45s hello-period=30s
hello-trigerred-delay=5s igmp-version=IGMPv2 interface=Ahmd
join-prune-holdtime=3m30s join-prune-period=1m override-interval=250
preferred-source-address=0.0.0.0 propagation-delay=50 protocols=pim,igmp
require-hello=yes tracking-support=yes
add alternative-subnets=“” assert-override-interval=3s assert-time=3m disabled=
no dr-priority=1 hello-holdtime=1m45s hello-period=30s
hello-trigerred-delay=5s igmp-version=IGMPv2 interface=ether2-master-local
join-prune-holdtime=3m30s join-prune-period=1m override-interval=250
preferred-source-address=0.0.0.0 propagation-delay=50 protocols=pim,igmp
require-hello=yes tracking-support=yes
add alternative-subnets=“” assert-override-interval=3s assert-time=3m disabled=
no dr-priority=1 hello-holdtime=1m45s hello-period=30s
hello-trigerred-delay=5s igmp-version=IGMPv2 interface=ether1-gateway
join-prune-holdtime=3m30s join-prune-period=1m override-interval=250
preferred-source-address=0.0.0.0 propagation-delay=50 protocols=pim,igmp
require-hello=yes tracking-support=yes
add alternative-subnets=“” assert-override-interval=3s assert-time=3m disabled=
no dr-priority=1 hello-holdtime=1m45s hello-period=30s
hello-trigerred-delay=5s igmp-version=IGMPv2 interface=all
join-prune-holdtime=3m30s join-prune-period=1m override-interval=250
preferred-source-address=0.0.0.0 propagation-delay=50 protocols=pim,igmp
require-hello=yes tracking-support=yes
/routing rip
set distribute-default=never garbage-timer=2m metric-bgp=1 metric-connected=1
metric-default=1 metric-ospf=1 metric-static=1 redistribute-bgp=no
redistribute-connected=no redistribute-ospf=no redistribute-static=no
routing-table=main timeout-timer=3m update-timer=30s
/snmp
set contact=“” enabled=no engine-id=“” location=“” trap-generators=“”
trap-target=“” trap-version=1
/system clock
set time-zone-name=manual
/system clock manual
set dst-delta=+00:00 dst-end=“jan/01/1970 00:00:00” dst-start=
“jan/01/1970 00:00:00” time-zone=+00:00
/system console
set [ find port=serial0 ] channel=0 disabled=no port=serial0 term=vt102
/system identity
set name=MikroTik
/system logging
set 0 action=memory disabled=no prefix=“” topics=info
set 1 action=memory disabled=no prefix=“” topics=error
set 2 action=memory disabled=no prefix=“” topics=warning
set 3 action=echo disabled=no prefix=“” topics=critical
/system note
set note=“” show-at-login=yes
/system ntp client
set enabled=no mode=unicast primary-ntp=0.0.0.0 secondary-ntp=0.0.0.0
/system ntp server
set broadcast=no broadcast-addresses=“” enabled=no manycast=yes multicast=no
/system resource irq
set 0 cpu=auto
set 1 cpu=auto
set 2 cpu=auto
set 3 cpu=auto
/system routerboard settings
set baud-rate=115200 boot-delay=2s boot-device=nand-if-fail-then-ethernet
boot-protocol=bootp cpu-frequency=680MHz enable-jumper-reset=yes
enter-setup-on=any-key force-backup-booter=no silent-boot=no
/system upgrade mirror
set check-interval=1d enabled=no primary-server=0.0.0.0 secondary-server=
0.0.0.0 user=“”
/system watchdog
set auto-send-supout=no automatic-supout=yes no-ping-delay=5m watch-address=
none watchdog-timer=yes
/tool bandwidth-server
set allocate-udp-ports-from=2000 authenticate=yes enabled=yes max-sessions=100
/tool e-mail
set address=0.0.0.0 from=<> password=“” port=25 starttls=no user=“”
/tool graphing
set page-refresh=300 store-every=5min
/tool graphing interface
add allow-address=0.0.0.0/0 disabled=no interface=Ahmd store-on-disk=yes
/tool mac-server
set [ find default=yes ] disabled=yes interface=all
add disabled=no interface=ether2-master-local
add disabled=no interface=ether3-slave-local
add disabled=no interface=ether4-slave-local
add disabled=no interface=ether5-slave-local
/tool mac-server mac-winbox
set [ find default=yes ] disabled=yes interface=all
add disabled=no interface=ether2-master-local
add disabled=no interface=ether3-slave-local
add disabled=no interface=ether4-slave-local
add disabled=no interface=ether5-slave-local
/tool mac-server ping
set enabled=yes
/tool sms
set allowed-number=“” channel=0 keep-max-sms=0 receive-enabled=no secret=“”
/tool sniffer
set file-limit=1000KiB file-name=“” filter-ip-address=“” filter-ip-protocol=“”
filter-mac-address=“” filter-mac-protocol=“” filter-port=“” filter-stream=
yes interface=all memory-limit=100KiB memory-scroll=yes only-headers=no
streaming-enabled=no streaming-server=0.0.0.0
/tool traffic-generator
set latency-distribution-scale=10 test-id=0
/user aaa
set accounting=yes default-group=read exclude-groups=“” interim-update=0s
use-radius=no
[admin@MikroTik] >
any help ??
im dying to fix this issue , and i wish to have a solution’s this time
regards
.. But only Sparse Mode, which is actually more efficient. I use PIM-Sparse mode on my Tik boxes to a device that only uses PIM-Dense Mode and it seems to work ok. I’m not sure, but I believe Rendezvous Points need to be defined, not just running PIM or at least for MikroTik. No sure about CISCO, but I would believe you would have to do something like that too.
