Hello All,
Following is my physical connection.
VLC Server(192.168.88.254) - Ether2 MikrotikA (192.168.88.1)
MikrotikA -- Ether1 (192.168.4.1) <---------> Ether1 Mikrotik_B(192.168.4.2)
MikrotikB -- Ether2 (192.168.99.1) - VLC Client (192.168.99.254)
I need muticast from VLC server to VLC client. The firmware is 6.36.4
This is the solution:
Router MikortikA
[MikrotikA] > routing pim interface add
[MikrotikA] > routing pim rp add address=192.168.4.1
Router Mikrotik_B:
[MikrotikB] > routing pim interface add interface=ether1
[MikrotikB] > routing pim interface add interface=ether2
[MikrotikB] > routing pim rp add address=192.168.4.1
I have disabled all the firewall rules and added just 1 rule in NAT in both routers.
chain=srcnat action=masquerade out-interface=ether1 log=no log-prefix=""
This is the Routes in MikrotikB
DST-ADDRESS PREF-SRC GATEWAY DISTANCE
0 ADC 192.168.4.0/24 192.168.4.2 ether1 0
1 A S 192.168.88.0/24 192.168.4.1 1
2 ADC 192.168.99.0/24 192.168.99.1 ether2 0
This is the Routes in MikrotikA
DST-ADDRESS PREF-SRC GATEWAY DISTANCE
0 ADC 192.168.4.0/24 192.168.4.1 ether1 0
1 ADC 192.168.88.0/24 192.168.88.1 ether2 0
2 A S 192.168.99.0/24 192.168.4.2 1

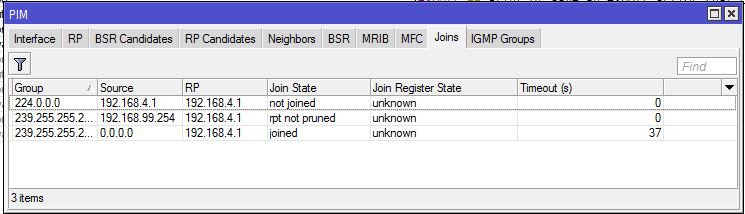

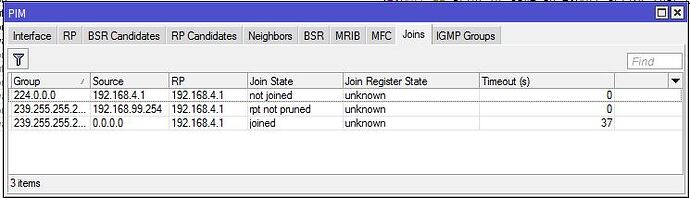

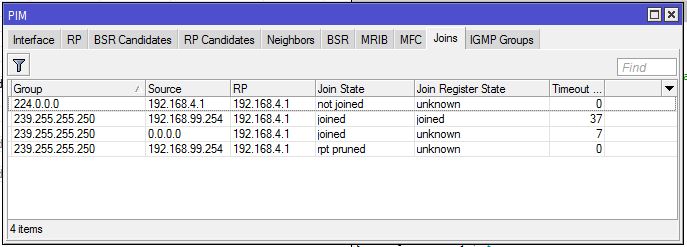

These are the router's PIM Joins status.
I cam ping/winbox one router from the other. And if i ping from the server pc to the client, i receive a reply and the opposite also.
I need help as I cannot figure out that if multicast is working or not. And honestly speaking, i dont know what server address should i give to the vlc server which is streaming the video and also what address should i give to the vlc client.
Help me please.
Regards,
Safiullah
