My Groove AC seems to have stopped responding to any network requests, and shows no connection on the network.
The on POE the top light and bottom light of the Groove AC come and and nothing else.
There doesn’t seem to be anything in the manual about this behaviour at all.
Any suggestions?
No-one? I’ll take it that it’s dead then after 2 years. Shame, I was quite fond of it.

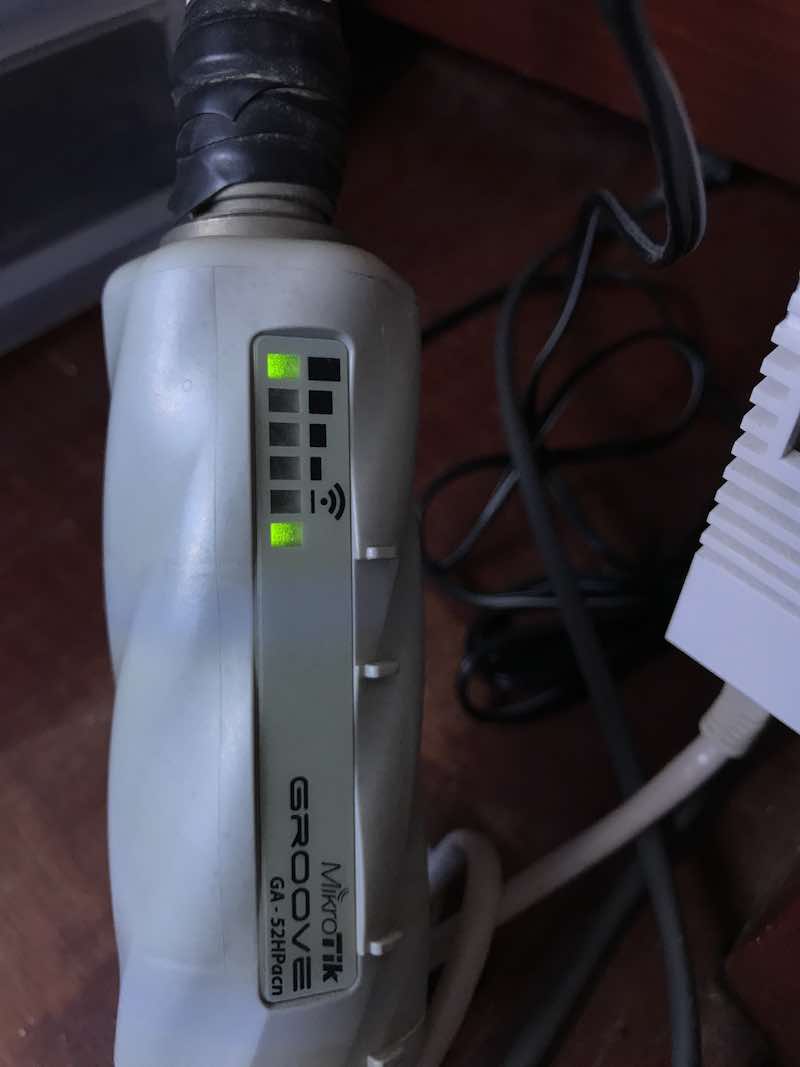

Here are the lights. These two flash on startup, then eventually remain permanently on.
It sounds like your groove is not completing the boot. The best I can suggest is to attempt to try reloading the OS by using netinstall.
Can’t do a Netinstall as the device doesn’t respond to anything, and isn’t found in Netinstall. It turns on, and then gets super hot that is about it. I’m guessing these things only have a 12 warranty.
Tempted to buy another, but perhaps the ubiquiti equivalent might be worth a try for a similar price. These things all seem to be much of a muchness anyhow.
Please try to follow these steps to load the backup bootloader:
Unfortunately there is no difference. The two lights as shown in the image above never change, and the device gets almost too hot to hold.
Following this procedure or any other i’ve found it is not possible to get the device detected in netinstall.
EDIT: and now the reset button (or a retainer clip for it) has just fallen out of the device. *** Sigh ***
Try to hard reset the device by shorting special hole of board . After that try netinstall or try after few of days.
I have several boards / mipsbe based / groove, 951 series with same issue… for me this issue comming from bad flash memory and only full format/netinstall/ may solve the problem .
Where is the reset on the Groove 52 AC then? It’s not like on the original groove nor like the Hap AC. There are no images anywhere showing it especially not in the wiki.
How disassemble and use the reset:
https://m.youtube.com/watch?v=k9Yna2f5Hao
Hope yours is the same.
Thanks, but no, the Groove AC is very different in terms of the board, hence my post above. I don’t think there is anything online about resetting the Groove AC manually. I think it needs a Mikrotik representative to tell people how, as it seems different from all the others I’ve seen.
I think the board is the same like nonAC Groove with different cpu and ethernet port !
It’s similar. But not the same. In the video you can see by the base of the board there are two holes with contacts around. The guy in the video uses a screw driver on the left contact to reset the board. On the AC board there are no holes, only one contact and sticking a screw driver on it achieves nothing at all. In the video you can clearly see the contact the guy uses to reset the board is split into two parts. He jumps those two part with the screwdriver. On the AC board, this doesn’t exist.
I have exactly the same issue. Unit worked for a couple of hours then I did a reset via RouterOS and now its unresponsive. Top light stays on and bottom light comes on during boot. One beep.
Also the ‘manual’ that came with the unit talks about the Metal so I think perhaps there is no manual for the 52 and they give you that one instead. There is no reset hole inside similar to what you have described, just the button. I cannot see it via WINBOX, Netinstall or http. Tried different cables and different laptops.
I think perhaps the saved copy of Router OS that is loaded after a reset is no good.
Tim

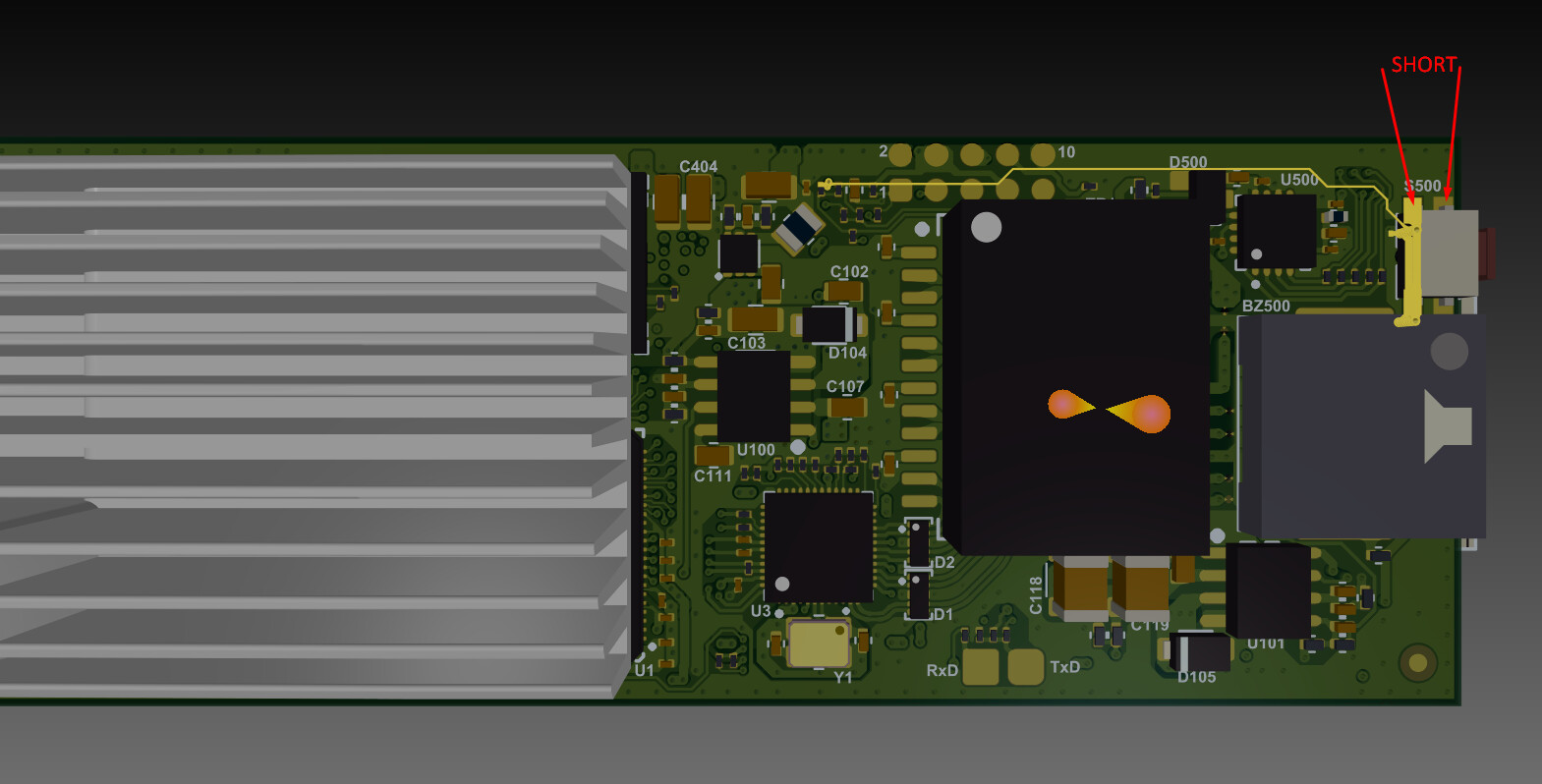

Mikrotik did get back to me in the end on manually resetting this, but it’s basically just the reset switch contacts. Very different from other routerboard type equipment.
In the end it still didn’t work. I was going to jump ship to Ubiquity but they use 24v POE, and I’m guessing that when supplied with 12v my HAP AC puts out 12V POE, so instead I just bought another Groove 52 AC.
Solved for me, i aplied a NETINSTALL, short story i reinstall the OS on my metal, and after that it can back to life, follow this step and you will by fine.
https://help.mikrotik.com/docs/spaces/ROS/pages/24805390/Netinstall
