Hello everyone,
Could anyone help me? So to speak, describe that procedure step by step.
BTW, firmware I was able to update to 6.44.3.
I need to configure mentioned above MAP LITE.

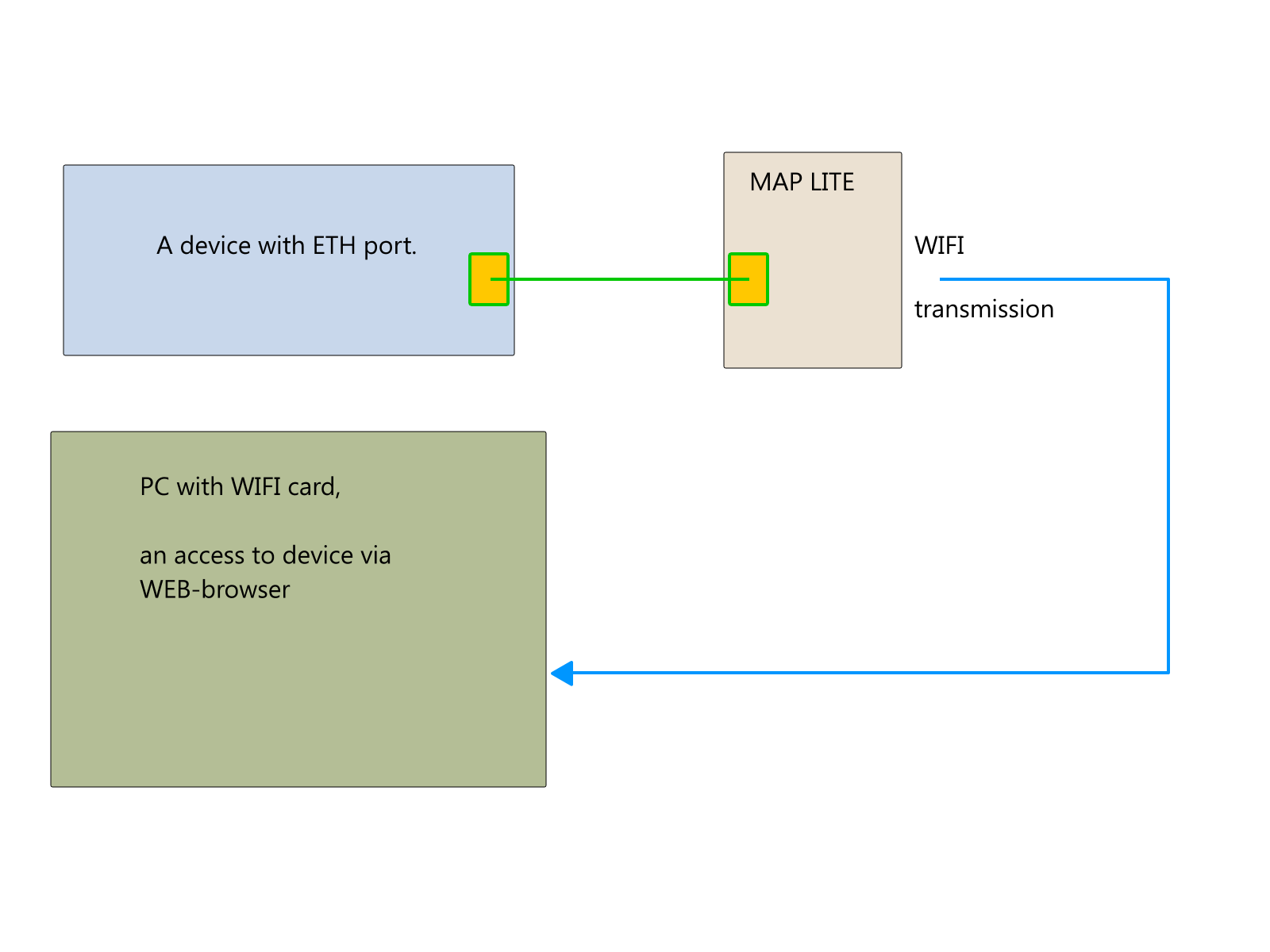

a supposed network configuration is in the attachment.
Thanks in advance!
“A device with ETH port” I suppose that is your ISP modem/router.
You need enable a DHCP client on the ETH port of your MAP Lite.
Enable wireless, change to AP bridge mode, configure SSID.
On Wireless → Security profiles, create a new profile with WPA2 security and set it on your wireless interface.
Set an private IP on IP → Addresses to your wireless interface (Example: 192.168.50.1/24).
Enable DHCP Server on your wireless interface using the wizard.
On IP → Firewall (NAT tab) create a new rule (All by default, but action on “masquerade”).
Connect your PC using Wi-Fi and try it.
Regards.
