Need help on RB493AH NAT config on 4 LAN port

Hardware MikroTik hardware general
1

Guys,

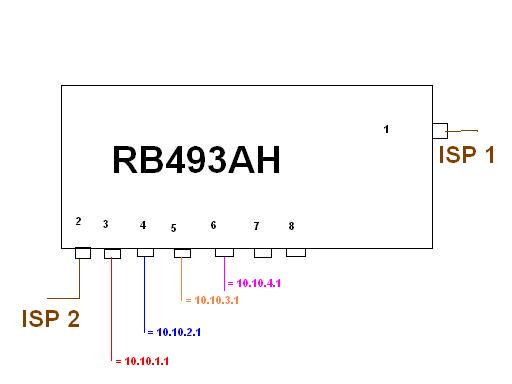

i’m using RB493ah right now using bridge mode. now i want to configure port 3,4 and 5, 6 but Port 5 & 6 will be use later.
I want to configure NAT on port 3,4,5,6 with DHCP

LAN Port 3: 10.10.1.1 / 255.255.255.0
LAN Port 4: 10.10.2.1 / 255.255.255.0
LAN Port 5: 10.10.3.1 / 255.255.255.0
LAN Port 6: 10.10.4.1 / 255.255.255.0



Right now using single (1) ISP but i will add more later.

2

Guys, please check this config. thanks

/interface enable ether1,ether2,ether3,ether4,ether5,ether6,ether7,ether8,ether9

ISP 1
/ip dhcp-client add interface=ether1 disabled=no

Lan Port 3:
/ip address add address=10.10.1.1/24 interface=ether3
/ip firewall nat add chain=srcnat src-address=10.10.1.0/24 action=masquerade


Lan Port 4:
/ip address add address=10.10.2.1/24 interface=ether4
/ip firewall nat add chain=srcnat src-address=10.10.2.0/24 action=masquerade

Lan Port 5:
/ip address add address=10.10.3.1/24 interface=ether5
/ip firewall nat add chain=srcnat src-address=10.10.3.0/24 action=masquerade

Lan Port 6:
/ip address add address=10.10.4.1/24 interface=ether6
/ip firewall nat add chain=srcnat src-address=10.10.4.0/24 action=masquerade

3

Remove all those NAT rules. Replace them with just this:

/ip firewall nat
add chain=srcnat out-interface=ether1 action=masquerade
add chain=srcnat out-interface=ether2 action=masquerade disabled=yes

Once you start using ISP2 on ether2 enable the second rule.

4

so it would look like this.

/interface enable ether1,ether2,ether3,ether4,ether5,ether6,ether7,ether8,ether9

ISP 1
/ip dhcp-client add interface=ether1 disabled=no

Lan Port 3:
/ip address add address=10.10.1.1/24 interface=ether3

Lan Port 4:
/ip address add address=10.10.2.1/24 interface=ether4

Lan Port 5:
/ip address add address=10.10.3.1/24 interface=ether5

Lan Port 6:
/ip address add address=10.10.4.1/24 interface=ether6

/ip firewall nat
add chain=srcnat out-interface=ether1 action=masquerade

/ip dns set allow-remote-requests=yes

thanks for your help.

5

No. You only need that NAT line once. Repeating it four times doesn’t make any sense.

6

i see.

i have edited my reply above. thank you very much for your help.


I will test this config next week.

7

guys, i have one more question.

how do i make Lan Port 3,4,5 and 6 be able to ping each other? and how do i enable hotspot on Port 3,4,5,6?

please check this config for hotspot.

Hotspot Config on Lan Port 3

[admin@MikroTik] /ip hotspot> setup
Select interface to run HotSpot on

hotspot interface: ether3
Set HotSpot address for interface

local address of network: 10.10.1.1/24
masquerade network: yes
Set pool for HotSpot addresses

address pool of network: 10.10.1.1-10.10.1.254
Select hotspot SSL certificate

select certificate: none
Select SMTP server

ip address of smtp server: 0.0.0.0
Setup DNS configuration

dns servers: 10.10.1.1
DNS name of local hotspot server

dns name: myhotspot 3
Create local hotspot user

name of local hotspot user: admin
password for the user:
[admin@MikroTik] /ip hotspot>

Hotspot Config on Lan Port 4

[admin@MikroTik] /ip hotspot> setup
Select interface to run HotSpot on

hotspot interface: ether3
Set HotSpot address for interface

local address of network: 10.10.2.1/24
masquerade network: yes
Set pool for HotSpot addresses

address pool of network: 10.10.2.1-10.10.2.254
Select hotspot SSL certificate

select certificate: none
Select SMTP server

ip address of smtp server: 0.0.0.0
Setup DNS configuration

dns servers: 10.10.2.1
DNS name of local hotspot server

dns name: myhotspot 4
Create local hotspot user

name of local hotspot user: admin
password for the user:
[admin@MikroTik] /ip hotspot>

Thanks

8

It’s a router. It will automatically route between all directly connected networks, because that’s what routers do - it’s their purpose. Therefore devices in directly connected networks can ‘ping one another’. Or more accurately: route traffic to one another, unless firewalls block that traffic.

Sure. Run the Hotspot wizard if you’d like.

9

thanks a lot.
