Need help routing public subnet IP to internal server

RouterOS General
1

I’ve spent all day trying to get this to work, and still struggling, even though its a simple task.

What I want is to use a public IP from my routed subnet directly on a server inside my network (without NAT). Current setup is:

The ISP provides the following over the connection (IP’s changed):

Static IP: 1.1.1.1/30 with a default gateway of 1.1.1.2
Routed subnet: 2.2.2.1/28 (I want to use all 16 IP’s so not setting the IP on any of my interfaces). ISP routes all IPs to the static IP above so should be ok.

So I have:
ether5 - connection to ISP. Static IP set to 1.1.1.1/30
ether9 - my server - IP: 2.2.2.1, subnet: 255.255.255.255, gw: 1.1.1.1

I have also added the following firewall rules:

add action=accept chain=forward dst-address=2.2.2.1 in-interface=ether5 out-interface=ether9
add action=accept chain=forward in-interface=ether9 out-interface=ether5 src-address=2.2.2.1

and a nat bypass:
add action=accept chain=srcnat src-address=62.252.149.9

I can’t ping or get any connectivity from the server. This should be simple but it just isnt working :slight_smile:

As a test, I assigned the 2.2.2.1 IP directly to the ether5 interface on the Mikrotik and I can ping it from an external site, so I know the routed subnet is reaching the router.

Any ideas?

Thank you

James

2

I believe the answers you seek are to be found here…
http://forum.mikrotik.com/t/multiple-static-public-ips-through-one-interface/123080/1

3

I had a look at that along with many other posts but it wasn’t clear of the final outcome and how it should be configured. Ideally I just want to map an IP from my routed subnet directly to a physical server plugged in to ether9 - no PPPoE in this case or NAT/IP tunnels. Is that possible?

Thanks

4

As indicated in that thread, just do this on router:

/ip address
add address=1.1.1.1/32 network=2.2.2.1/32 interface=ether9

And if you have server with 2.2.2.1/255.255.255.255 and gateway 1.1.1.1 connected to ether9, it will work. Well, if you don’t block it with firewall or something.

5

Thanks. Even though I have 1.1.1.1 assigned as the ether5 static WAN IP already?

Thanks

6

Doesn’t like it:

/ip address> add address=1.1.1.1/32 network=2.2.2.1/32 interface=ether9
invalid value for argument network

7

Fixed for dramatic and ironic affect! :wink:

8

Heh.

Managed to add it by removing the /32 from the network, so its just 2.2.2.1 but still not working.

The server at 2.2.2.1 plugged in to ether9 cant get any Internet. ping to 8.8.8.8 shows request timed out…

9

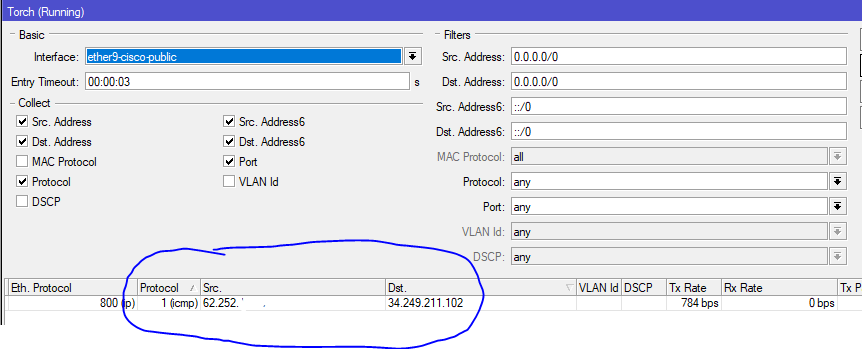

The torch tool shows a ping i am running to 2.1.1.1 (real ip 62.252.x.x in screenshot) from outside is being sent to ether9 and it appears it is responding but the ping fails, so, is it a firewall issue where traffic from ether9 cant go back out, like some nat or forward rule?

10

I enabled proxy-arp on ether9 and it now works. But should I need to do this? Is this strictly required? Does it introduce any issues?

Thanks

11
  1. Using address=1.1.1.1/32 even though 1.1.1.1 is already on different interface should be ok. At least it was in previous RouterOS versions. I like this “recycling” to avoid having too many different addresses. But it’s not required, you can use any other address, just pick something unique, e.g. some 10.x.x.x (and then use it also as gateway on server)
  2. /32 in network=2.2.2.1/32 was my mistake, sorry.
  3. You don’t need proxy-arp. Try to change the address, as mentioned in 1).
12

Thanks

So without adding some dummy ip to the ether9 interface and then using this ip as the gateway on the server nothing would be routed, correct?

I tried what you said but it still doesnt work without enabling proxy arp on ether9.

Once I get this working, can I still use input firewall rules to block traffic to my server rather than all traffic hitting (as its passing through without nat etc)?

One thing to mention, if it matters, is that ether5 (wan) and ether9 are in different switch groups, so maybe why arp is required to get across the switches?

Thanks

James

13

Did you change settings on your server as well? The IP address/route config there should mirror the one from router …

14

Indeed. With proxy-arp on its working, but without it’s not. I’d like to avoid having to use proxy-arp if I can as it shouldn’t be required I think?

Thanks

15

To double check, you have on router:

/ip address
add address=<gwaddr>/32 network=<srvaddr> interface=ether9

and then on server, address = , mask = 255.255.255.255, gateway = , correct?

Maybe export and post the whole config, there’s probably something unexpected in there.

16

Its working now - not sure why but ARP is just set to the default “enabled” instead of proxy-arp.

Sob and co, thanks for the help.

Last question - can I still limit the inbound traffic to the public IP using the MT firewall or is everything just “passed through” to the server now?

Thanks

James

17

Yes, “enabled” is the right value.

If you didn’t change it, the two firewall rules from the first post allow everything from and to server. If that’s not what you want, use different rules and allow only some ports as needed.

18

Strangely, in my testing, I removed those rules completely and the server still have access behind the assigned public IP, so seems it lets everything through. Guess I need to drop all and then allow just what I need through…

Weird as I thought it wouldn’t work at all without the following:

add action=accept chain=forward dst-address=2.2.2.1 in-interface=ether5 out-interface=ether9
add action=accept chain=forward in-interface=ether9 out-interface=ether5 src-address=2.2.2.1

Thanks

James

19

Yep, I added a drop rule and then some specific forward rules for what I want open externally. Thanks!

20

Remember that firewall’s default action is accept, everything you don’t block is allowed.
