Hello,
I need help with 3 branch offices which connect to one main router.
My situation is as follows:
Local lan subnet: 192.168.50.0/24
I want:

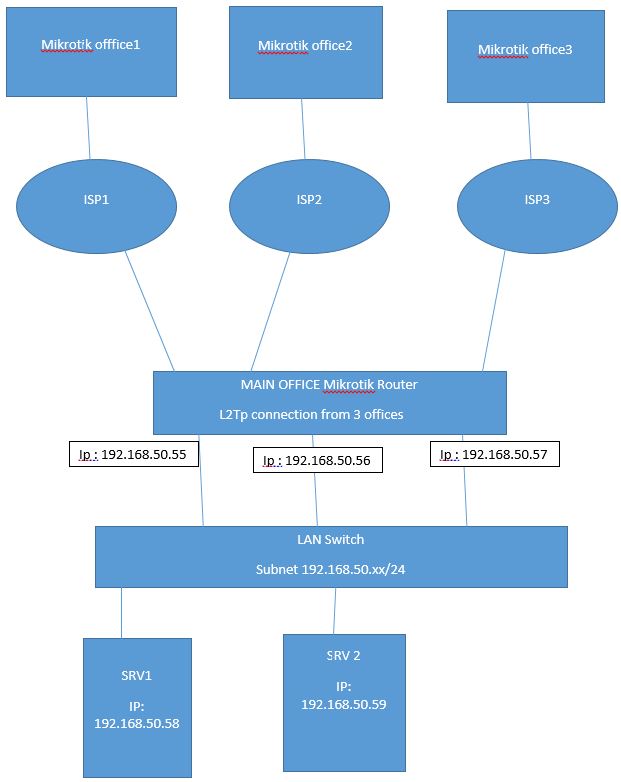

Branch 1------isp1--------main router l2tp1--------lan 192.168.50.55
Branch 2-------isp 2--------main router l2tp2--------lan 192.168.50.56
Branch 3 -------isp3-------main router l2tp3---------lan 192.168.50.57
each isp line is configured in different port
Each lan ip is configured in different port.
I am able to configure l2tp and it is working fine from 3 branches but I want for each branch to be identified in lan.
So branch office 1 it comes from l2tp1 and in lan it is identified with one lan ip for example branch 1 must be identified as 192.168.50.100.
During the configuration of L2tp i have setup dhcp pool which it assigns ip (in range 192.168.99.0/24) but my goal is to identify at the end each l2tp connection.
I underline that three L2tp connections are working fine but at the end I want them in lan from 3 different lan ips.
I have tried mangle but I haven’t capture any packets.
Has anyone run into this config?
Can someone help me with a configuration or a way how to achieve this config?
Any help would be appreciated
