Need help with 802.11N point-to-point link [solved]

RouterOS Wireless Networking
1

Hello all MT users,

I’m an employee of one of the distributors in germany. We got big problems with setting up a point-to-point configuration with the 802.11N-settings and the RouterOS 4.3. We tried every type of configuration but it didn’t work as desired.

Our setup:

AP
RB433AH
RouterOS 4.3
R52N
Mars 25 dbi dual-polarisation antenna ( http://www.mars-antennas.com/item/g_antennas_type_1-156.html )

Client
RB433AH
RouterOS 4.3
R52N
Mars 25 dbi dual-polarisation antenna ( http://www.mars-antennas.com/item/g_antennas_type_1-156.html )

The distance which we want to bypass is 1 kilometer without any trees or other outside influences.

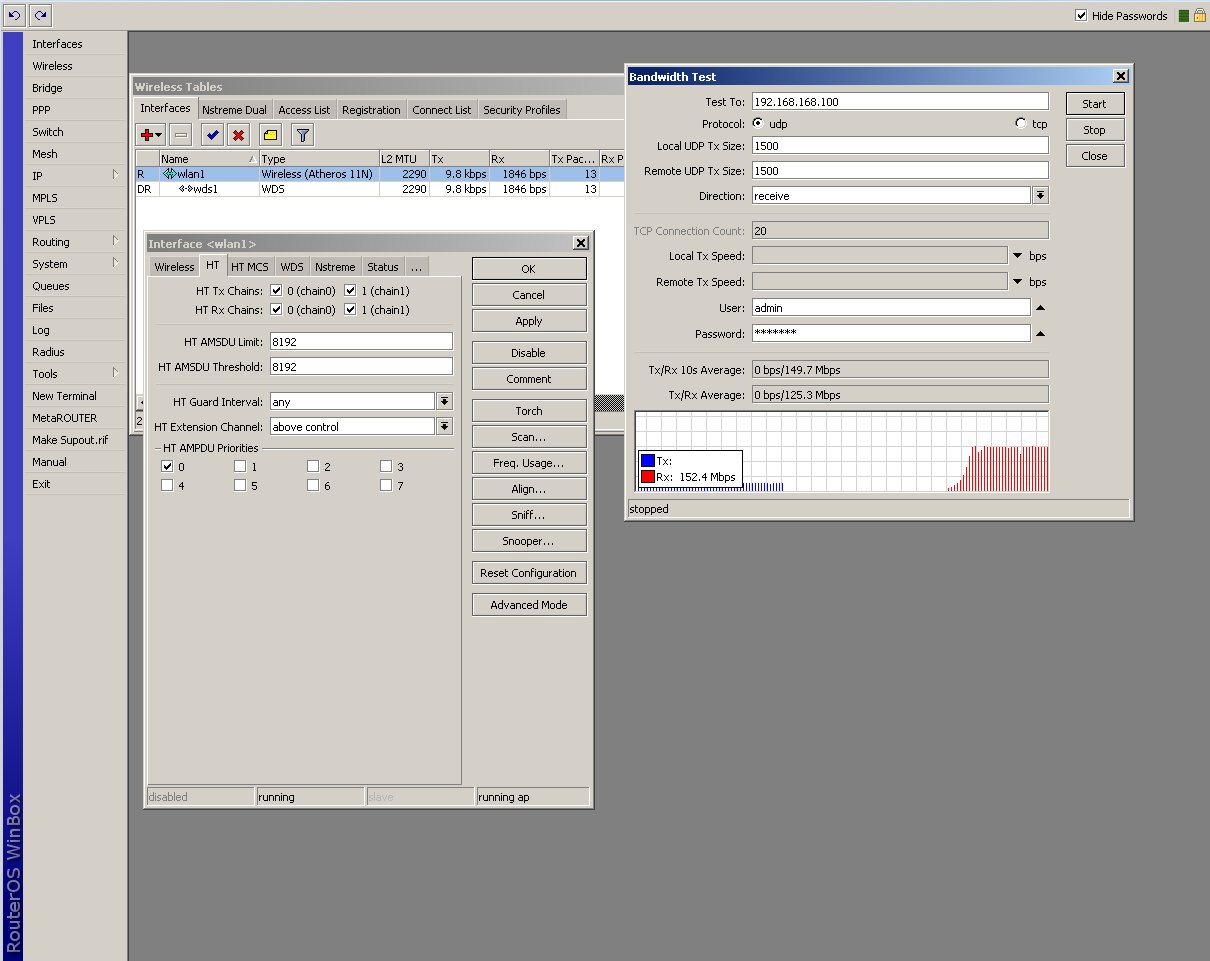

Our HT-settings on the AP:

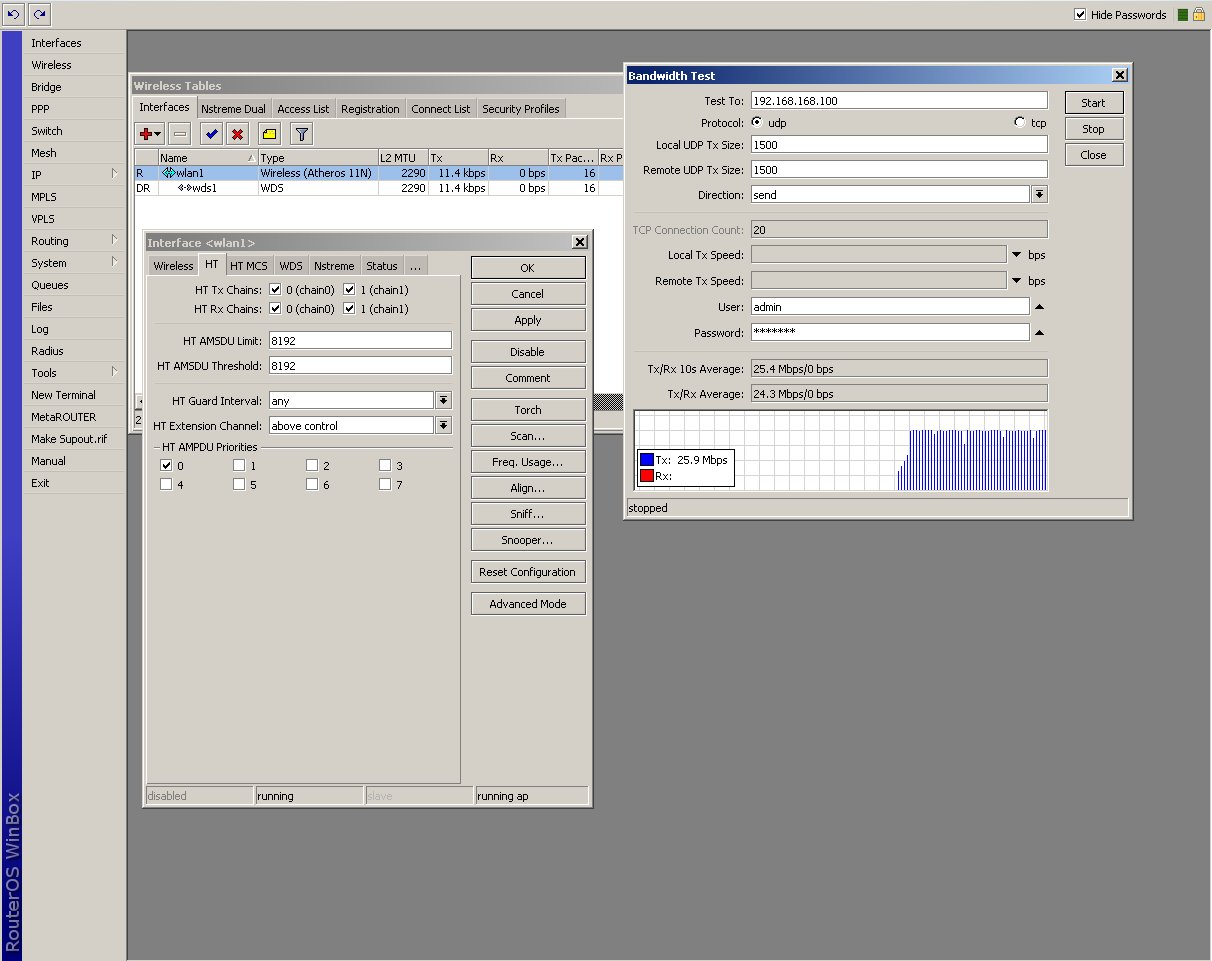

Our HT-settings on the Client are exactly the same. Or do we have to change some settings?

We’d read the setup_guide in the wiki for RouterOS v4.03beta, but we think it must be possible to set-up the link with v4.3, too.

Do you know, whats the failure in our settings?

Thanks and regards,

Michael

2

Don’t use WDS with 802.11n. Use vpls tunnel and all thing go very well.

3

Thank you for your reply.

We will try it and post our results.

Regards,
Michael

4

You have only -25dB Cross Polarization, I think it’s not enough. Use two separate antenna in different polarization. Else try different frequency.

5

OK thanks for your information. We will try it.

But we got one question…are our HT-settings correct?

Regards,
Michael

6

Hello all who read this topic,

now we delete the wds-interface. We added a VPLS interface and it works.

Here is a link of the MikroTik wiki how to set-up a VPLS interface for a transparently bridge with two networks:

http://wiki.mikrotik.com/wiki/Transparently_Bridge_two_Networks_using_MPLS

Thanks and good luck,
Michael

7

Hi Sp4eTzLe

I have point to point with MPLS and is working just fine and I can push on that link up and down 70 to 80 Mbit.
if you want it just give it to me the email and i will send it my config.
I use two panels in each side/ PC base /version ROS4.1/ distance 800 Meters .


thx
Selim

8

Hi, I m interested to point to point with MPLS configuration.
Can you send me a mail adding @inwind.it at my nick :wink: ?

9

i want try point to point with MPLS
can you give me aconfiguration it .
send me a mail to po.putraluragung@gmail.com

10

Hi all,

thanks for your replys but I’m a bit irritated with it.

We solved our problem with adding a MPLS/VPLS-interface and removing the WDS-interface.

Now our point-to-point-link works very fine with the 802.11N configuration. Now we got an usable bandwidth with 200Mbit on RX-site and 150 Mbit on TX-site / distance 1000 meters. We use two dual-polarization antennas with 25dbi.

Four days ago I posted a reply with the link to the Wiki-howto with the solution.

Do you really want a configuration-file? Or only a reply with the code for the MPLS/VPLS-settings?

I’m waiting for your reply :slight_smile:

Michael

p.s.: In the next few days i will add a german HowTo on our MikroTik-homepage (www.mikrotik-training-center.de)

11

A replay if your working code are different from wiki code :wink:

12

It is the same set-up as described in the Wiki, but we changed the IP-addresses :wink:

Regards,
Michael
