NetFlow Shows NATed IPs Instead of End Hosts on Download Traffic

RouterOS
1

Hello,

I’ve installed ManageEngine NetFlow Analyzer and connected it to my MikroTik router (v7.19.3). There’s a Users VLAN interface configured on the router that I want to monitor.

On the NetFlow system, I can clearly see upload traffic, including the source IP addresses of the end hosts. However, in the download section, I only see NATed IP addresses, which prevents me from identifying the actual end hosts.

If you have any ideas or suggestions on how to fix this issue, I’d really appreciate your help.

Thanks! :heart:

image824×640 27.5 KB

2

Im not familiar with ManageEngine, but do a lot of Netflow work.

You should be seeing translation in the flows that are being Nat-ed. Do you know what version of Netflow youre using? Netflow v5 does not report translation, only Netflow v9 or IPfix. It could also be something in ManageEngine not reporting this. Check your documentation.

3

True. I am running Netflow IPFIX and each item has both the original and NAT address (and MAC as well), when selected in the configuration.

4

Thanks for your response!

I will share Mikrotik config with you.

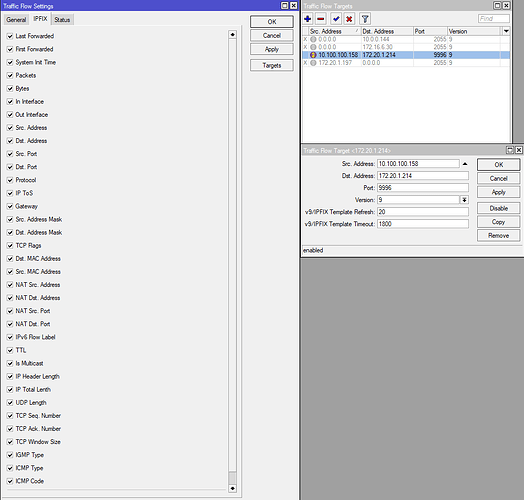

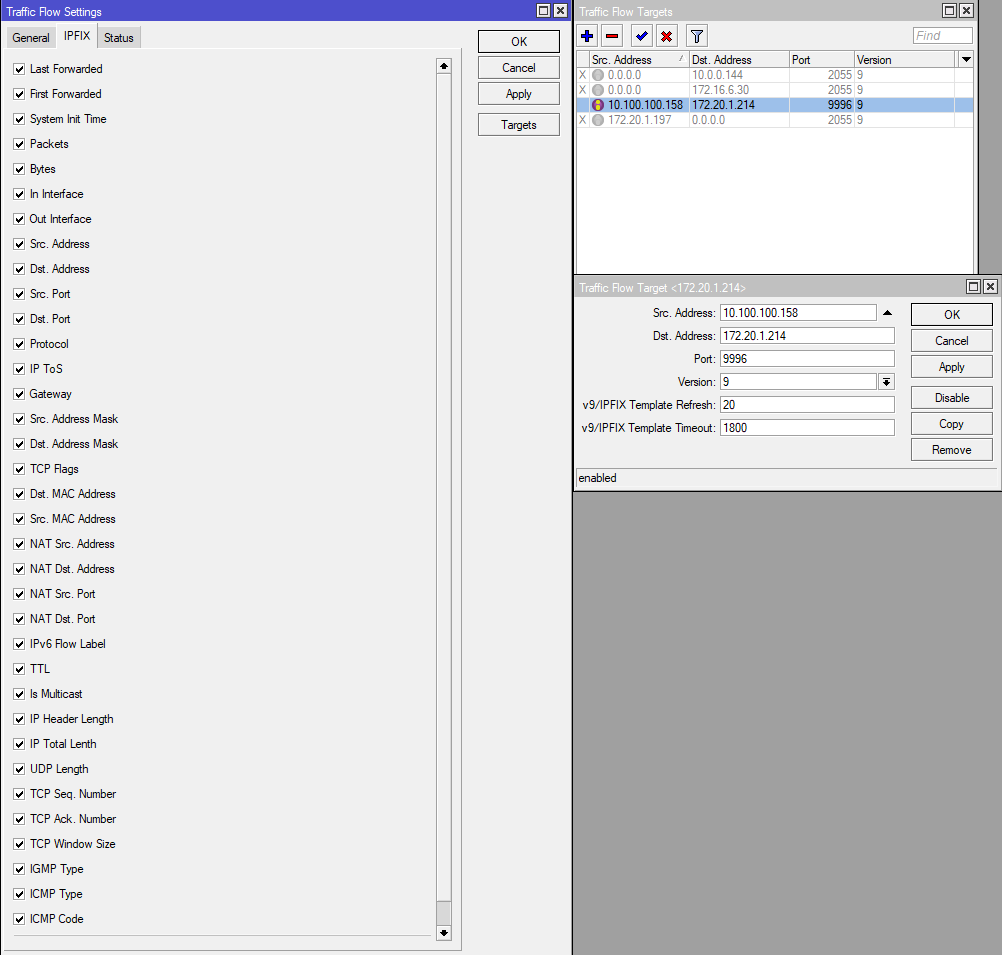

image1002×955 31.6 KB

5

Ok so set Version to IPFIX and it will work.

6

Netflow v9 also has that info by default, so if these screen prints impliy they’re currently running v9 the data should be ok.

7

Router software version could be a problem?

8

I did it but same results :confused:

9

Ok you could run wireshark on the receiving system to confirm that the data is really sent and that the issue is in ManageEngine rather than in the router.

10

Capturing some packets wouldn’t hurt. You’ll have to find a template packet to know what fields are being sent.

Also, most (every) flow monitoring system has some kind of confirmation that needs to be set describing your local IP network spaces (that would be nat-ed) as opposed to external publicly routable address spaces. I would try checking any confuration that you’ve set.

Even though the data fields are labeled “nat” I’ve see them not reported if the address spaces are not defined correctly.

11

Wireshark will show the packets including labels once the template packet has been seen during a capture. You can set the template refresh interval in the target configuration. It is set to 20 above (the default) so the template will be sent every 20 packets.

12

Thanks for your help.

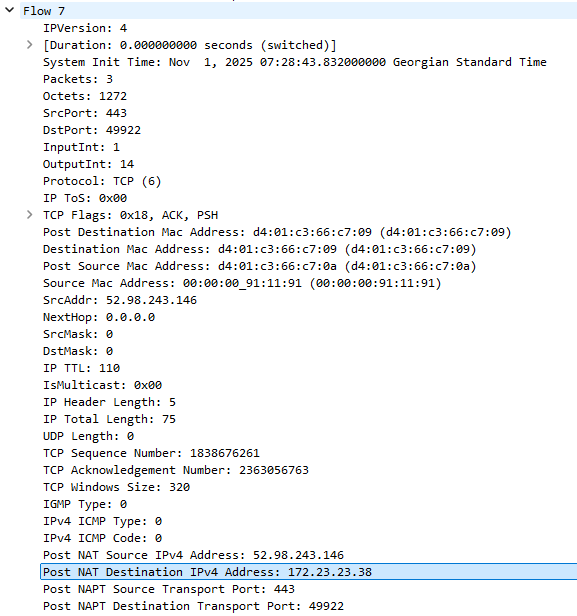

Wireshark shows internal IP addresses.
I opened ticket to netflow system support for their help.

2 Likes
13

Hello everyone,

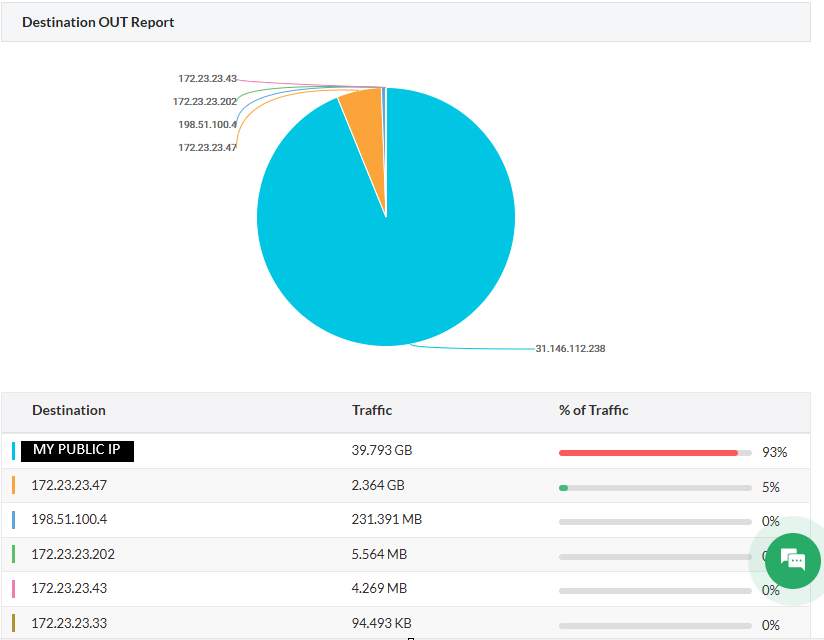

I need some recommendations. As you can see in the download traffic, I can view my internal IP addresses (Post-NAT Destination Address). However, ManageEngine NetFlow Analyzer does not display these internal IP addresses in reports; it only shows the destination address, which is my public IP.

Can you recommend a NetFlow analyzer that can show Post-NAT Destination IPv4 addresses in its reports?

Thanks in advance!

image577×616 10.6 KB
