Can anyone confirm if the netPower 16P is able to supply 24v and 48v and the same time? Are you able to select High or Low power per port?

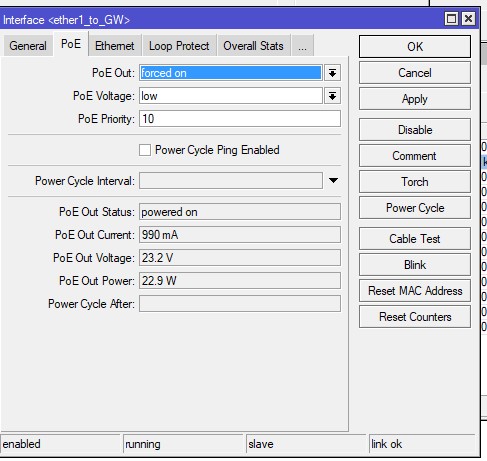

If you have both types of PSU purchased and connected at the same time, the device will automatically sense and detect if the HI or LOW voltage adapter must be used. Or you can set it manually, per port.
Wow. Just wow!
Is device able to provide 802.3af only with the 18-30V PSU port connected? I am not able to find a clear reference to that, as documentation looks to be left intentionally confusing.
“Or you can set manually per port” - how does that work with only the low voltage PSU connected? Thank you!
@esorin0
Currently there are only 2 available devices with voltage conversation on board using single power supply - CRS328-24P-4S+RM and CRS354-48P-4S+2Q+RM.
For other devices it is like “what you give is what you get”, therefore, as example, if you will use 24V to power the device, then on poe-out ports you will have 24V ( - possible voltage drop due to cable length, quality etc.)
@Elans when is Mikrotik planning to release any of these devices with a dual PSU (AC or neg48V telco)?
