no speed above 1.5MBPS for file transfer....

saintofinternet · July 20, 2011, 3:23pm

hi friends,

today i setup a bridge between 2 RB711-5Hn-MMCX in a 22dbi antenna enclosure.

both in the same room a few inches away.

i then setup a MPLS transparent bridge using the steps given here : http://wiki.mikrotik.com/wiki/Transparently_Bridge_two_Networks_using_MPLS

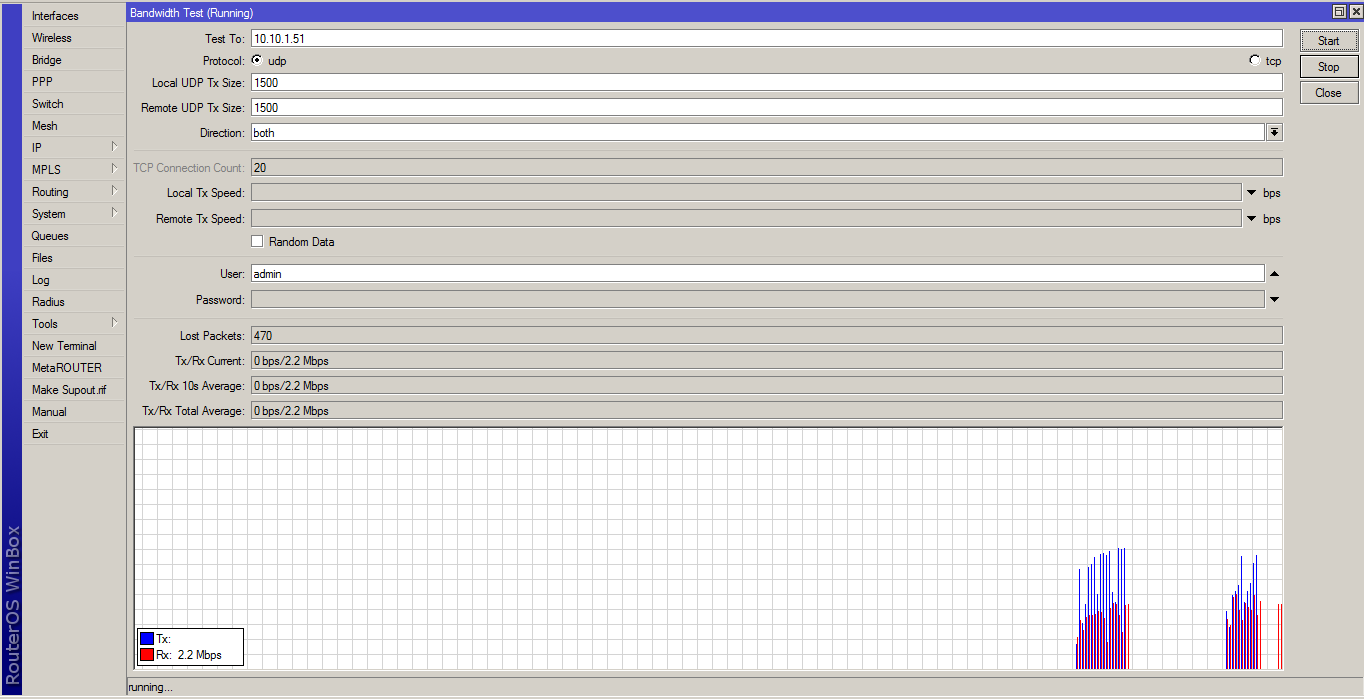

now when i transfer data from one PC to another PC i don’t get speeds above 1.5 MBPS at the most 2MBPS. Not above that.

anything i need to do more about this setup for gaining speeds above atleast 20MBPS…

-sid

poli5681 · July 20, 2011, 6:11pm

Hi saintofinternet,

Usually there´s no need for VPLS on PTP Links anymore; RouterOS V5 has a
native Bridge Mode without the speed tradeoff using WDS;
Said that, you won´t get good results at you test setup with 22dbi antennas just a couple of feet away…
It´s like staring into the sun. Ideal signal is around 60dbm.

saintofinternet · July 21, 2011, 12:41am

any place where i can see the bridge setup?? without using MPLS… because i somehow misreably fail when i try to do it using WDS and bridge. my RouterOS is Level3 hence i don’t even have a AP mode.

poli5681 · July 21, 2011, 9:09am

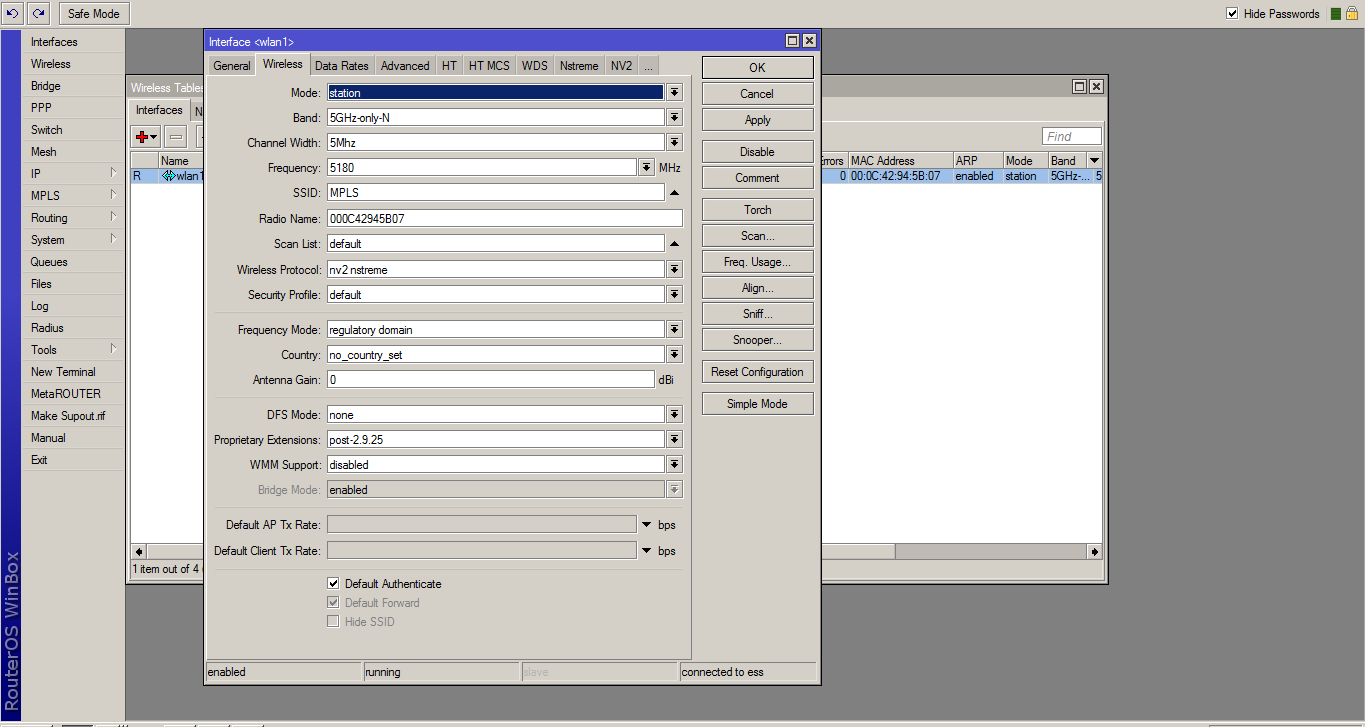

You dont´t need Level 4 for PTP Setup. Just set Mode “Bridge” on the first and Mode “station-bridge” on the other - no need for WDS.
http://wiki.mikrotik.com/wiki/Manual:Wireless_Station_Modes#Mode_station-bridge

Additionally you have to add a bridge and bind both wlan and ether interface.
