I have got a site in Australia where I have installed 8 NetMetal AC’s and 4 CAP ac’s.

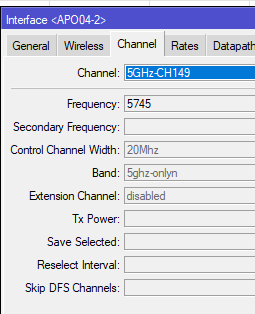

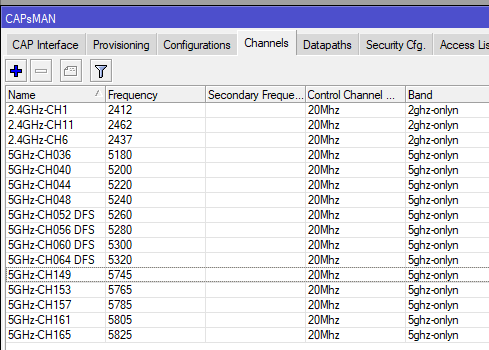

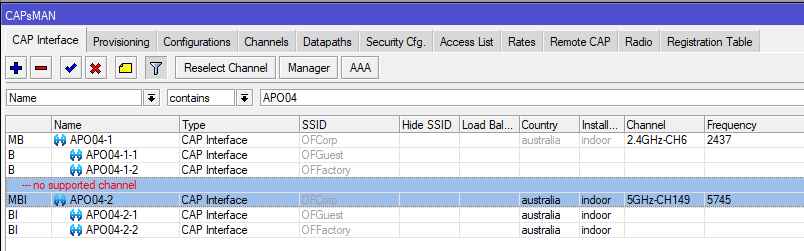

The site all works well, however whenever I select 5G channels 149-165 I get the error “No supported channel”
I don’t know how to fix it, as if you take the CAP out of CAPsMAN mode, you can select the channels fine.

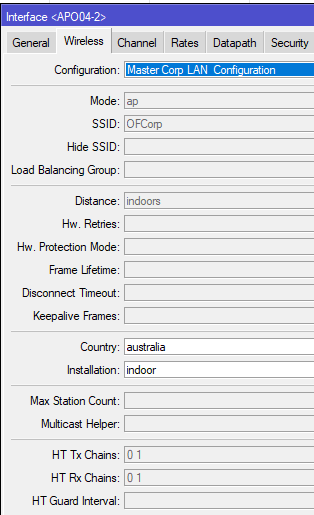

I made sure I set the Country to Australia.
I think the issue relates to the Frequency Mode selection, but I cannot find in CAPsMAN this setting.
Any one got any ideas?
I had the same problem for Sweden. I looked it up and I can run these so something is up with ROS.
I removed the country in CapsMAN and now it works.
I found the solution. Need to set the Installation to Outdoors.
Installation: Outdoors or any. “Any” if the installation is actually indoors. As Mikrotik in some cases makes the mistake denying outdoor frequencies if set to “indoor”.
There are “indoor only” frequencies and “unrestricted” frequencies, and as such allowed outdoors. There is no mentioning of “outdoor only” frequencies in the regulatory documents.
The word “/outdoor” should not be in this list (or the software logic should be different)
[admin@MktOmnitik] /interface wireless info> country-info australia
ranges: 2402-2482/b,g,gn20,gn40(36dBm)/passive
2417-2457/g-turbo(36dBm)
5170-5250/a,an20,an40,ac20,ac40,ac80,ac160,ac80+80(20dBm)/indoor
5250-5330/a,an20,an40,ac20,ac40,ac80,ac160,ac80+80(20dBm)/dfs,passive
5490-5590/a,an20,an40,ac20,ac40,ac80,ac160,ac80+80(27dBm)/dfs,passive
5650-5730/a,an20,an40,ac20,ac40,ac80,ac160,ac80+80(27dBm)/dfs,passive
5735-5835/a,an20,an40,ac20,ac40,ac80,ac160,ac80+80(36dBm)/outdoor
5190-5230/a-turbo(20dBm)/indoor
5230-5310/a-turbo(20dBm)/passive
5740-5820/a-turbo(36dBm)/outdoor
5180-5220/a-turbo(20dBm)/indoor
5220-5260/a-turbo(20dBm)/passive,indoor
5260-5300/a-turbo(20dBm)/dfs,passive
5745-5825/a-turbo(36dBm)/outdoor
5510-5600/a-turbo(27dBm)/dfs,passive
917-928/b,g,g-turbo,gn20,gn40(30dBm)
