not working: IKEv2_EAP_between_NordVPN_and_RouterOS

RouterOS General
1

can someone assist me in this. i dont know what i am missing or doing wrong.
i followed the guide here and was successful to every part BUT i am not sure why theres no connection or what i am missing to make this work.

https://support.nordvpn.com/Connectivity/Router/1360295132/Mikrotik-IKEv2-setup-with-NordVPN.htm
and
https://wiki.mikrotik.com/wiki/IKEv2_EAP_between_NordVPN_and_RouterOS

# sep/01/2019 05:41:54 by RouterOS 6.46beta38
# software id = xxxxx
#
# model = 951G-2HnD
# serial number = xxxxx
/interface bridge
add admin-mac=00:0C:42:B7:A5:33 auto-mac=no comment=defconf name=bridge
/interface wireless
set [ find default-name=wlan1 ] band=2ghz-b/g/n disabled=no frequency=auto \
    mode=ap-bridge ssid=A-- wireless-protocol=802.11
/interface list
add comment=defconf name=WAN
add comment=defconf name=LAN
/interface wireless security-profiles
set [ find default=yes ] supplicant-identity=MikroTik
add authentication-types=wpa2-psk group-ciphers=tkip,aes-ccm mode=\
    dynamic-keys name=wlan1 supplicant-identity=MikroTik \
    unicast-ciphers=tkip,aes-ccm wpa-pre-shared-key=xxxxx \
    wpa2-pre-shared-key=xxxxx
/ip ipsec mode-config
add name=NordVPN responder=no src-address-list=local
/ip ipsec policy group
add name=NordVPN
/ip ipsec profile
add name=NordVPN
/ip ipsec peer
add address=ge6.nordvpn.com exchange-mode=ike2 name=NordVPN profile=NordVPN
/ip ipsec proposal
add name=NordVPN pfs-group=none
/ip pool
add name=dhcp ranges=192.168.88.10-192.168.88.254
/ip dhcp-server
add address-pool=dhcp disabled=no interface=bridge name=defconf
/tool user-manager customer
set admin access=\
    own-routers,own-users,own-profiles,own-limits,config-payment-gw
/interface bridge port
add bridge=bridge comment=defconf interface=ether2
add bridge=bridge comment=defconf interface=ether3
add bridge=bridge comment=defconf interface=ether4
add bridge=bridge comment=defconf interface=ether5
add bridge=bridge comment=defconf interface=wlan1
add bridge=bridge interface=*8
/interface list member
add comment=defconf interface=bridge list=LAN
add comment=defconf interface=ether1 list=WAN
/ip address
add address=192.168.88.1/24 comment=defconf interface=ether2 network=\
    192.168.88.0
/ip dhcp-client
add comment=defconf dhcp-options=hostname,clientid disabled=no interface=\
    ether1
/ip dhcp-server network
add address=192.168.88.0/24 comment=defconf gateway=192.168.88.1
/ip dns
set allow-remote-requests=yes
/ip dns static
add address=192.168.88.1 name=router.lan
/ip firewall address-list
add address=192.168.88.0/24 list=local
add disabled=yes list=n
/ip firewall filter
add action=accept chain=forward comment="defconf: accept in ipsec policy" \
    ipsec-policy=in,ipsec
add action=accept chain=forward comment="defconf: accept out ipsec policy" \
    ipsec-policy=out,ipsec
add action=fasttrack-connection chain=forward comment="defconf: fasttrack" \
    connection-state=established,related
add action=accept chain=forward comment=\
    "defconf: accept established,related, untracked" connection-state=\
    established,related,untracked
add action=drop chain=forward comment="defconf: drop invalid" \
    connection-state=invalid disabled=yes
add action=drop chain=forward comment=\
    "defconf:  drop all from WAN not DSTNATed" connection-nat-state=!dstnat \
    connection-state=new disabled=yes in-interface-list=WAN
/ip firewall mangle
add action=mark-routing chain=prerouting new-routing-mark=nord passthrough=\
    yes src-address=192.168.88.10-192.168.88.254
add action=mark-connection chain=prerouting dst-address-list=n \
    new-connection-mark=NordVPN passthrough=yes
/ip firewall nat
add action=masquerade chain=srcnat comment="defconf: masquerade" \
    out-interface-list=WAN
/ip ipsec identity
add auth-method=eap certificate="" eap-methods=eap-mschapv2 generate-policy=\
    port-strict mode-config=NordVPN password=xxxxx peer=NordVPN \
    policy-template-group=NordVPN username=xxxxx
/ip ipsec policy
set 0 group=NordVPN
add dst-address=0.0.0.0/0 group=NordVPN proposal=NordVPN src-address=\
    0.0.0.0/0 template=yes
/ip route
add disabled=yes distance=1 gateway=*C routing-mark=nord
/ip ssh
set forwarding-enabled=remote
/system clock manual
set time-zone=+03:00
/system gps
set set-system-time=yes
/system identity
set name=home
/system lcd
set contrast=0 enabled=no port=parallel type=24x4
/system lcd page
set time disabled=yes display-time=5s
set resources disabled=yes display-time=5s
set uptime disabled=yes display-time=5s
set packets disabled=yes display-time=5s
set bits disabled=yes display-time=5s
set version disabled=yes display-time=5s
set identity disabled=yes display-time=5s
set bridge disabled=yes display-time=5s
set wlan1 disabled=yes display-time=5s
set ether1 disabled=yes display-time=5s
set ether2 disabled=yes display-time=5s
set ether3 disabled=yes display-time=5s
set ether4 disabled=yes display-time=5s
set ether5 disabled=yes display-time=5s
/tool user-manager database
set db-path=disk/user-manager
2

This is not the solution, but you should not use mark-routing when using a single router. Only Connection marking (mark-connection) is to be used.

The IKEv2 joins the WAN and has so no separate interface and only uses the dynamic NAT to get the traffic to the WAN.

3

so whats the solution then?
the mangle rule was something i put in just for messing around. its not doing anything.

in the logs it shows ipsec messages.

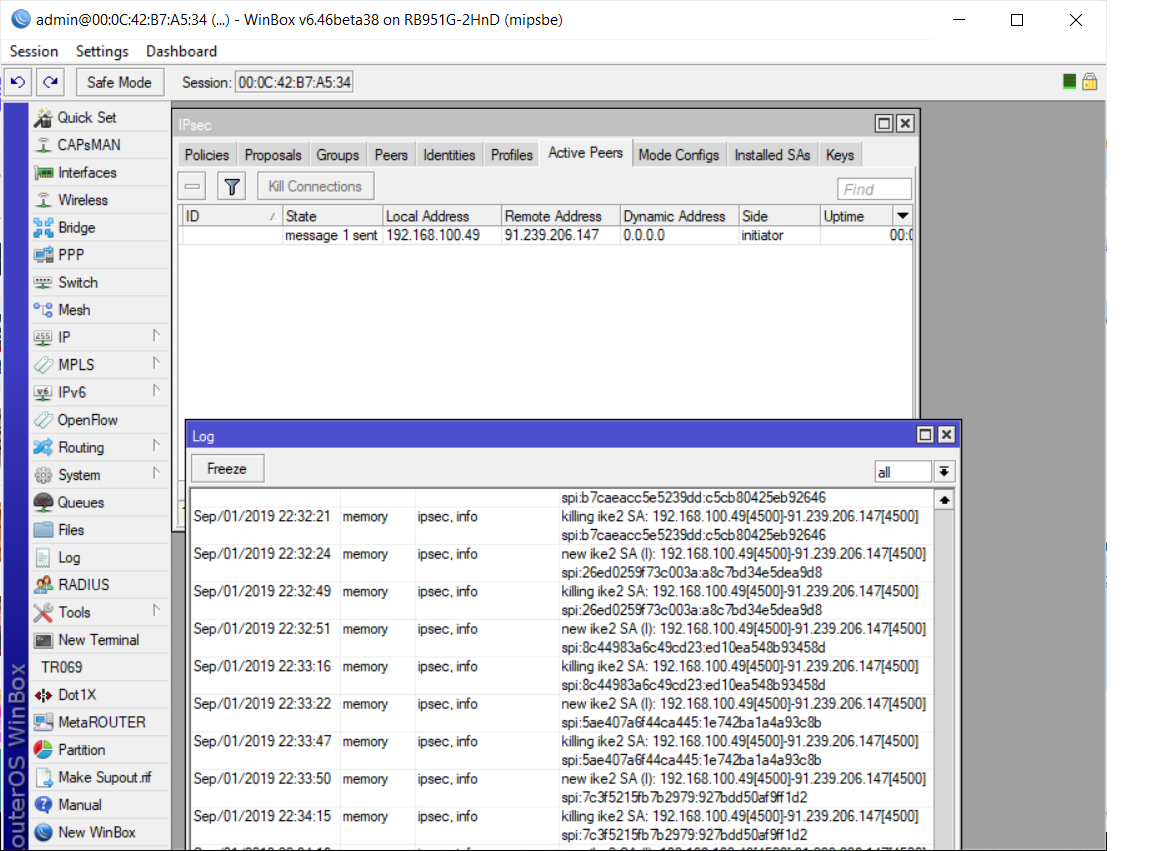

also, under /ip ipsec active peers it connects then drops in moments.

i want the traffic to be routed through.
what am i missing?
what do i need to do?

4

If you search in the forum you will find that routing is not going to work on a single device. You have to use connection marking.
Remove that ALL from your config and post your config again after that.

Then the requesters for config files, can have a easier look at your config.

I am not a config requester.

5

Change to:

/ip ipsec mode-config
add connection-mark=nord name=NordVPN responder=no
/ip firewall mangle
add action=mark-connection chain=prerouting new-connection-mark=nord passthrough=yes src-address=192.168.88.10-192.168.88.254

Offered a router setup to put yours in.

6

i added the parameters you explained.

still, theres something missing. not sure still.

7

You was mixing routing and connection marking. I would start again with the info page of Mikrotik self and only use connection marking.

8

i dont think so. nevertheless, i may reset the router and start again. cause this is just frustrating me.

[admin@...] /ip firewall mangle> print
Flags: X - disabled, I - invalid, D - dynamic
 0  D ;;; special dummy rule to show fasttrack counters
      chain=prerouting action=passthrough

 1  D ;;; special dummy rule to show fasttrack counters
      chain=forward action=passthrough

 2  D ;;; special dummy rule to show fasttrack counters
      chain=postrouting action=passthrough

 3    chain=prerouting action=mark-connection new-connection-mark=NordVPN passthrough=yes src-address=192.168.88.10-192.168.88.254 log=no log-prefix=""
[admin@...] /ip firewall mangle>
9

I have to correct myself. I wrote using source adress was not possible on a single router/device and that was not correct. I am using more than one tunnel at the same time so I never was able to use source address.

In your case you have to choose one of them, and as you use a range of your local network the are interchangeable. I am using source ports so I have to use connection marking in mangle.

If you use source adress then you need no Mangle lines if I remember it well.

Routing won’t work because IKEv2 has no own interface.

Have you checked if the certificate is imported and I remember a hick-up with that, using the example.

10

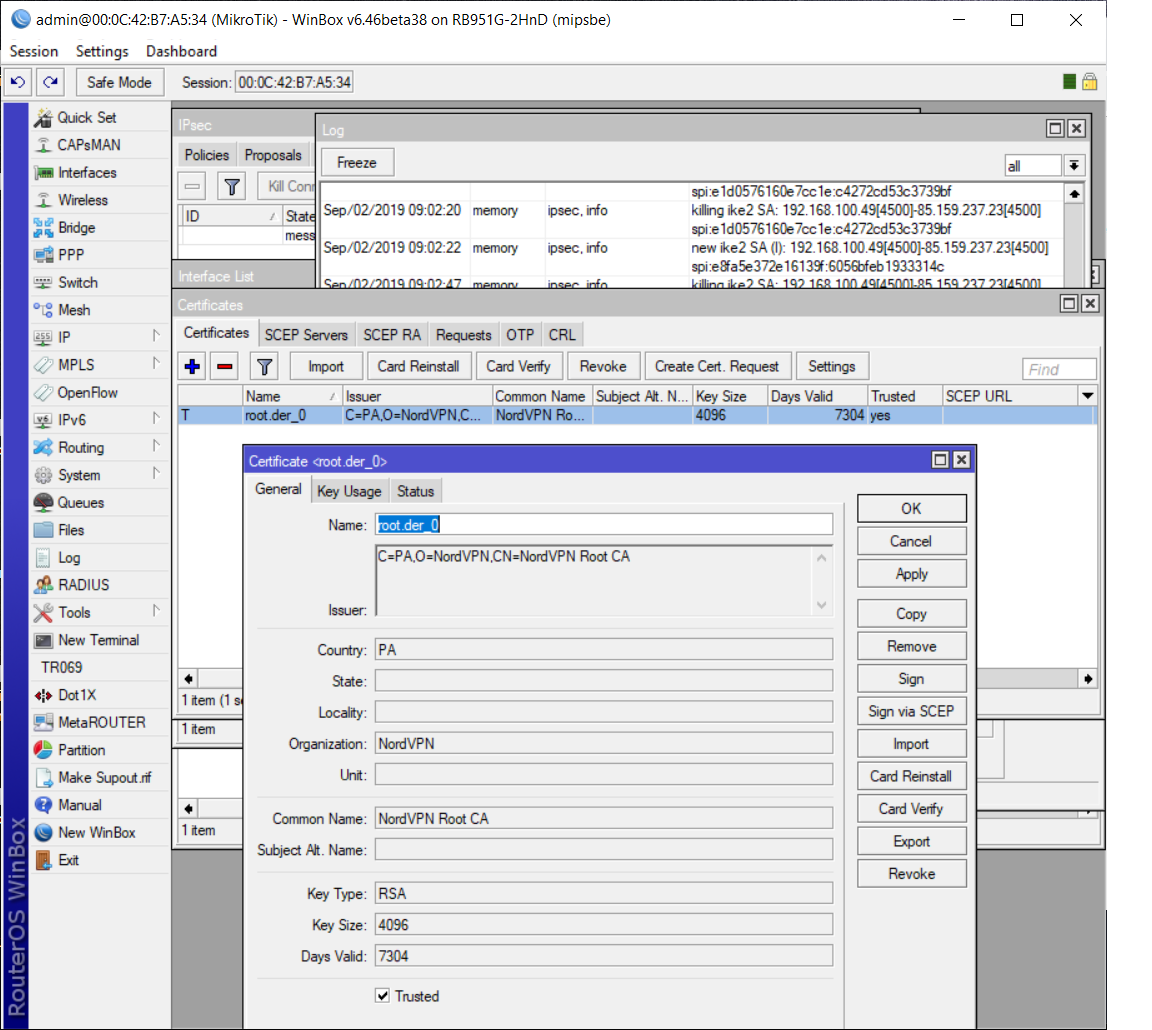

yes. i did get the certificate. see pic.

and i did start completely fresh!
i am so frustrated i am gonna dump nordvpn and go with a service that offers pptp / l2tp instead.
all i want is to get netflix to work via the tunnel!

when i come to do /ip firewall nat print it gives me nothing. wtf?

[admin@MikroTik] /ip ipsec mode-config> set [ find name=NordVPN ] src-address-list=LAN
[admin@MikroTik] /ip ipsec mode-config> /ip firewall nat print
Flags: X - disabled, I - invalid, D - dynamic
 0    chain=srcnat action=masquerade log=no log-prefix=""
[admin@MikroTik] /ip ipsec mode-config>




# sep/02/2019 09:07:25 by RouterOS 6.46beta38
# software id = FA5M-AK7T
#
# model = 951G-2HnD
# serial number = 3E2D016AFD85
/interface bridge
add name=bridge1
/interface wireless
set [ find default-name=wlan1 ] ssid=MikroTik
/interface wireless security-profiles
set [ find default=yes ] supplicant-identity=MikroTik
/ip ipsec mode-config
add name=NordVPN responder=no src-address-list=LAN
/ip ipsec policy group
add name=NordVPN
/ip ipsec profile
add name=NordVPN
/ip ipsec peer
add address=nl125.nordvpn.com exchange-mode=ike2 name=NordVPN profile=NordVPN
/ip ipsec proposal
add name=NordVPN pfs-group=none
/ip pool
add name=dhcp_pool2 ranges=192.168.88.10-192.168.88.254
/ip dhcp-server
add address-pool=dhcp_pool2 disabled=no interface=bridge1 name=dhcp1
/tool user-manager customer
set admin access=\
    own-routers,own-users,own-profiles,own-limits,config-payment-gw
/interface bridge port
add bridge=bridge1 interface=ether2
add bridge=bridge1 interface=ether4
add bridge=bridge1 interface=ether5
add bridge=bridge1 interface=wlan1
add bridge=bridge1 interface=ether3
/ip address
add address=192.168.88.1/24 interface=bridge1 network=192.168.88.0
/ip dhcp-client
add dhcp-options=hostname,clientid disabled=no interface=ether1
/ip dhcp-server network
add address=192.168.88.0/24 dns-server=192.168.88.1 gateway=192.168.88.1
/ip dns
set allow-remote-requests=yes
/ip firewall address-list
add address=192.168.88.0/24 list=LAN
/ip firewall nat
add action=masquerade chain=srcnat
/ip ipsec identity
add auth-method=eap certificate="" eap-methods=eap-mschapv2 generate-policy=\
    port-strict mode-config=NordVPN password=xxxxx peer=NordVPN \
    policy-template-group=NordVPN username=xxxxx
/ip ipsec policy
add dst-address=0.0.0.0/0 group=NordVPN proposal=NordVPN src-address=\
    0.0.0.0/0 template=yes
/system clock
set time-zone-name=Asia/Baghdad
/system lcd
set contrast=0 enabled=no port=parallel type=24x4
/system lcd page
set time disabled=yes display-time=5s
set resources disabled=yes display-time=5s
set uptime disabled=yes display-time=5s
set packets disabled=yes display-time=5s
set bits disabled=yes display-time=5s
set version disabled=yes display-time=5s
set identity disabled=yes display-time=5s
set bridge1 disabled=yes display-time=5s
set wlan1 disabled=yes display-time=5s
set ether1 disabled=yes display-time=5s
set ether2 disabled=yes display-time=5s
set ether3 disabled=yes display-time=5s
set ether4 disabled=yes display-time=5s
set ether5 disabled=yes display-time=5s
/tool user-manager database
set db-path=disk/user-manager

and heres the certificate.

/certificate print where name~"root.der"
Flags: K - private-key, L - crl, C - smart-card-key, A - authority, I - issued, R - revoked, E - expired,
T - trusted
 #         NAME          COMMON-NAME         SUBJECT-ALT-NAME                                      FINGERPRINT
 0       T root.der_0    NordVPN Root CA                                                           8b5a495db498a6c2...
[admin@MikroTik] >


11
add address=nl125.nordvpn.com exchange-mode=ike2 name=NordVPN profile=NordVPN

The used login name/password is an example and are not real/working.

You need an account with NordVPN. There is an repeating offer of 75% with off for three years and you have a 30-day money-back guarantee, so time to test it. They are one of the best on the moment and are also the front-runner in delvelopment. I have tried several VPN providers and they are by far the best.

https://nordvpn.com/risk-free-vpn

12

I have very similar issue with NordVPN. Followed instructions, yet Mikrotik RB952Ui-5ac2nD fails to establish connection.

A log looks like

18:21:22 ipsec,info new ike2 SA (I): 192.168.1.66[4500]-185.247.210.101[4500] spi:d68443eebdff3a9c:1dd8da88bfab0da0
18:21:47 ipsec,info killing ike2 SA: 192.168.1.66[4500]-185.247.210.101[4500] spi:d68443eebdff3a9c:1dd8da88bfab0da0
18:21:53 ipsec,info new ike2 SA (I): 192.168.1.66[4500]-185.247.210.101[4500] spi:6a75f6d02dadfd56:f7aa17df6705b5b6
18:22:18 ipsec,info killing ike2 SA: 192.168.1.66[4500]-185.247.210.101[4500] spi:6a75f6d02dadfd56:f7aa17df6705b5b6

On a debug level one can see that some response is received from VPN, but there’s no progress past some point & after several retries Mikrotik shut connection down without providing any further details

…
17:51:45 ipsec,debug ===== sending 440 bytes from 192.168.1.66[4500] to 45.9.238.20[4500]
17:51:45 ipsec,debug 1 times of 444 bytes message will be sent to 45.9.238.20[4500]
17:51:45 ipsec,debug ===== received 440 bytes from 45.9.238.20[4500] to 192.168.1.66[4500]
17:51:45 ipsec,debug => shared secret (size 0x100)
…
17:51:45 ipsec,debug => skeyseed (size 0x14)
17:51:45 ipsec,debug 1f06d5b8 221d7936 5c05b37e e04072ce 46fca530
17:51:45 ipsec,debug => keymat (size 0x14)
17:51:45 ipsec,debug b2edd744 e9c5ed81 8a6fe098 6f4d5f95 d14fd44b
17:51:45 ipsec,debug => SK_ai (size 0x14)
17:51:45 ipsec,debug 5f18439c 8591e7ad 7d458f78 97bb2907 a9f5071c
17:51:45 ipsec,debug => SK_ar (size 0x14)
17:51:45 ipsec,debug 0cd39607 ae31b997 0eb4a8be bd6ac0c8 c87aef7b
17:51:45 ipsec,debug => SK_ei (size 0x10)
17:51:45 ipsec,debug ab92a682 54d64538 2e914eba 9311917f
17:51:45 ipsec,debug => SK_er (size 0x10)
17:51:45 ipsec,debug ae846a2f 9a7f9cdf 40d718ed 81c27e97
17:51:45 ipsec,debug => SK_pi (size 0x14)
17:51:45 ipsec,debug b57f54d5 0b0f0c3e 1001da9a 7a4e3b31 60292f20
17:51:45 ipsec,debug => SK_pr (size 0x14)
17:51:45 ipsec,debug 82187386 fd86c9a2 0b960b39 01de9c9f 376e4db6
17:51:45 ipsec,info new ike2 SA (I): 192.168.1.66[4500]-45.9.238.20[4500] spi:8407b18f06fff0d9:711257c56488a528
17:51:45 ipsec,debug KA: 192.168.1.66[4500]->45.9.238.20[4500]
17:51:45 ipsec,debug 1 times of 1 bytes message will be sent to 45.9.238.20[4500]
17:51:45 ipsec,debug => (size 0xc)
17:51:45 ipsec,debug 0000000c 01000000 c0a80142
17:51:45 ipsec,debug => (size 0x8)
17:51:45 ipsec,debug 00000008 00004000
17:51:45 ipsec,debug => (size 0x4c)
…
17:51:45 ipsec,debug ===== sending 348 bytes from 192.168.1.66[4500] to 45.9.238.20[4500]
17:51:45 ipsec,debug 1 times of 352 bytes message will be sent to 45.9.238.20[4500]
17:51:50 ipsec,debug ===== sending 348 bytes from 192.168.1.66[4500] to 45.9.238.20[4500]
17:51:50 ipsec,debug 1 times of 352 bytes message will be sent to 45.9.238.20[4500]
17:51:55 ipsec,debug ===== sending 348 bytes from 192.168.1.66[4500] to 45.9.238.20[4500]
17:51:55 ipsec,debug 1 times of 352 bytes message will be sent to 45.9.238.20[4500]
17:52:00 ipsec,debug ===== sending 348 bytes from 192.168.1.66[4500] to 45.9.238.20[4500]
17:52:00 ipsec,debug 1 times of 352 bytes message will be sent to 45.9.238.20[4500]
17:52:05 ipsec,debug KA: 192.168.1.66[4500]->45.9.238.20[4500]
17:52:05 ipsec,debug 1 times of 1 bytes message will be sent to 45.9.238.20[4500]
17:52:05 ipsec,debug ===== sending 348 bytes from 192.168.1.66[4500] to 45.9.238.20[4500]
17:52:05 ipsec,debug 1 times of 352 bytes message will be sent to 45.9.238.20[4500]
17:52:10 ipsec,info killing ike2 SA: 192.168.1.66[4500]-45.9.238.20[4500] spi:8407b18f06fff0d9:711257c56488a528
17:52:10 ipsec,debug KA tree dump: 192.168.1.66[4500]->45.9.238.20[4500] (in_use=1)
17:52:10 ipsec,debug KA removing this one..

Config

# sep/11/2019 11:43:30 by RouterOS 6.45.5
# software id = CYTU-4LYJ
#
# model = RB952Ui-5ac2nD
# serial number = 9E940A3CE6BE
/interface bridge
add admin-mac=74:4D:28:03:2B:AC auto-mac=no comment=defconf name=InternalLAN
/interface ethernet
set [ find default-name=ether1 ] advertise=10M-half,10M-full,100M-half,100M-full,1000M-half,1000M-full
set [ find default-name=ether2 ] advertise=10M-half,10M-full,100M-half,100M-full,1000M-half,1000M-full \
    name=ether2-master
set [ find default-name=ether3 ] advertise=10M-half,10M-full,100M-half,100M-full,1000M-half,1000M-full
set [ find default-name=ether4 ] advertise=10M-half,10M-full,100M-half,100M-full,1000M-half,1000M-full
set [ find default-name=ether5 ] advertise=10M-half,10M-full,100M-half,100M-full,1000M-half,1000M-full
/interface wireless
set [ find default-name=wlan1 ] band=2ghz-b/g/n channel-width=20/40mhz-Ce disabled=no distance=indoors \
    frequency=auto mode=ap-bridge ssid=SerLiz2 wireless-protocol=802.11
set [ find default-name=wlan2 ] band=5ghz-a/n/ac channel-width=20/40/80mhz-Ceee disabled=no distance=\
    indoors frequency=auto mode=ap-bridge ssid=SerLiz5 wireless-protocol=802.11
/interface list
add comment=defconf name=WAN
add comment=defconf name=LAN
add exclude=dynamic name=discover
add name=mactel
add name=mac-winbox
/interface wireless security-profiles
set [ find default=yes ] authentication-types=wpa-psk,wpa2-psk mode=dynamic-keys supplicant-identity=\
    MikroTik wpa-pre-shared-key=Gebemot1987 wpa2-pre-shared-key=Gebemot1987
/ip hotspot profile
set [ find default=yes ] html-directory=flash/hotspot
/ip ipsec mode-config
add name=NordVPN responder=no
/ip ipsec policy group
add name=NordVPN
/ip ipsec profile
add enc-algorithm=aes-256,aes-192,aes-128,3des hash-algorithm=sha512 name=NordVPN
/ip ipsec peer
add address=ua11.nordvpn.com disabled=yes exchange-mode=ike2 name=NordVPN profile=NordVPN
/ip ipsec proposal
add auth-algorithms=sha512 disabled=yes enc-algorithms=aes-256-cbc name=NordVPN pfs-group=none
/ip pool
add name=dhcp ranges=192.168.88.10-192.168.88.254
/ip dhcp-server
add address-pool=dhcp disabled=no interface=InternalLAN name=defconf
/interface bridge port
add bridge=InternalLAN comment=defconf interface=ether2-master
add bridge=InternalLAN comment=defconf interface=wlan1
add bridge=InternalLAN comment=defconf interface=wlan2
add bridge=InternalLAN interface=ether3
add bridge=InternalLAN interface=ether4
add bridge=InternalLAN interface=ether5
/ip neighbor discovery-settings
set discover-interface-list=discover
/interface list member
add comment=defconf interface=InternalLAN list=LAN
add comment=defconf interface=ether1 list=WAN
add interface=wlan1 list=discover
add interface=wlan2 list=discover
add interface=ether2-master list=discover
add interface=ether3 list=discover
add interface=ether4 list=discover
add interface=ether5 list=discover
add interface=InternalLAN list=discover
add interface=InternalLAN list=mactel
add interface=InternalLAN list=mac-winbox
/ip address
add address=192.168.88.1/24 comment=defconf interface=ether2-master network=192.168.88.0
/ip dhcp-client
add comment=defconf dhcp-options=hostname,clientid disabled=no interface=ether1
/ip dhcp-server network
add address=192.168.88.0/24 comment=defconf gateway=192.168.88.1
/ip dns
set allow-remote-requests=yes servers=8.8.8.8,1.1.1.1
/ip dns static
add address=192.168.88.1 name=router.lan
/ip firewall address-list
add address=192.168.88.0/24 list=local
/ip firewall filter
add action=accept chain=input comment="defconf: accept established,related,untracked" connection-state=\
    established,related,untracked
add action=drop chain=input comment="defconf: drop invalid" connection-state=invalid
add action=accept chain=input comment="defconf: accept ICMP" protocol=icmp
add action=drop chain=input comment="defconf: drop all not coming from LAN" in-interface-list=!LAN
add action=accept chain=forward comment="defconf: accept in ipsec policy" ipsec-policy=in,ipsec
add action=accept chain=forward comment="defconf: accept out ipsec policy" ipsec-policy=out,ipsec
add action=fasttrack-connection chain=forward comment="defconf: fasttrack" connection-state=\
    established,related
add action=accept chain=forward comment="defconf: accept established,related, untracked" connection-state=\
    established,related,untracked
add action=drop chain=forward comment="defconf: drop invalid" connection-state=invalid
add action=drop chain=forward comment="defconf:  drop all from WAN not DSTNATed" connection-nat-state=\
    !dstnat connection-state=new in-interface-list=WAN
/ip firewall nat
add action=masquerade chain=srcnat comment="defconf: masquerade" ipsec-policy=out,none out-interface-list=\
    WAN
/ip ipsec identity
add auth-method=eap certificate="" disabled=yes eap-methods=eap-mschapv2 generate-policy=port-strict \
    mode-config=NordVPN password=secret peer=NordVPN policy-template-group=NordVPN username=\
    my_login
/ip ipsec policy
add dst-address=0.0.0.0/0 group=NordVPN proposal=NordVPN src-address=0.0.0.0/0 template=yes
/system clock
set time-zone-autodetect=no time-zone-name=Europe/Moscow
/system clock manual
set time-zone=+03:00
/tool mac-server
set allowed-interface-list=mactel
/tool mac-server mac-winbox
set allowed-interface-list=mac-winbox

I did not set up firewall rules in this attempt, but tried this before & apparently those never have any effect since IPSec tunnel is always down.

I’m not experienced in network configuration, tried to keep things very simple. Maybe some expert can help? I can provide further information / experiment if anyone is willing to help.

13

@msatter

Not sure if you are still tackling this problem but I had a very similar issue to you and found my problem was caused by using a Gmail alias in my NordVPN account. Got NordVPN support to remove the alias and low and behold it instantly connected.
