Nth LoadBalancing

RouterOS Beginner Basics
1

I read Nth Balancing configuration and tried to implement it on my machine.

following are the details of my configuration.


/ ip address
add address=11.1.1.1/24 network=11.1.1.0 broadcast=11.1.1.255 interface=Lan
add address=192.168.1.2/24 network=192.168.1.0 broadcast=192.168.1.255 interface=wlan2
add address=192.168.2.2/24 network=192.168.2.0 broadcast=192.168.2.255 interface=wlan1

/ ip firewall mangle
add chain=prerouting src-address-list=odd in-interface=Lan action=mark-connection \ new-connection-mark=odd passthrough=yes
add chain=prerouting src-address-list=odd in-interface=Lan action=mark-routing \ new-routing-mark=odd passthrough=no
add chain=prerouting src-address-list=even in-interface=Lan action=mark-connection \ new-connection-mark=even passthrough=yes
add chain=prerouting src-address-list=even in-interface=Lan action=mark-routing \ new-routing-mark=even passthrough=no
add chain=prerouting in-interface=Lan connection-state=new nth=2,1 \ action=mark-connection new-connection-mark=odd passthrough=yes
add chain=prerouting in-interface=Lan action=add-src-to-address-list \ address-list=odd address-list-timeout=1d connection-mark=odd passthrough=yes
add chain=prerouting in-interface=Lan connection-mark=odd action=mark-routing \ new-routing-mark=odd passthrough=no
add chain=prerouting in-interface=Lan connection-state=new nth=2,2 \ action=mark-connection new-connection-mark=even passthrough=yes
add chain=prerouting in-interface=Lan action=add-src-to-address-list \ address-list=even address-list-timeout=1d connection-mark=even passthrough=yes
add chain=prerouting in-interface=Lan connection-mark=even action=mark-routing \ new-routing-mark=even passthrough=no

/ ip firewall nat
add chain=srcnat out-interface=wlan1 action=masquerade
add chain=srcnat out-interface=wlan2 action=masquerade

/ ip route
add dst-address=0.0.0.0/0 gateway=192.168.1.1 scope=255 target-scope=10 routing-mark=odd
add dst-address=0.0.0.0/0 gateway=192.168.2.1 scope=255 target-scope=10 routing-mark=even
add dst-address=0.0.0.0/0 gateway=192.168.2.1 scope=255 target-scope=10


net working on client pc through wlan2

but wlan1 not working at all even when i disconnect wlan2.

did i make any mistake?

2

Your first two mangle rules are marking all the connections, that is why traffic is routed only through wlan2.

3

thanks for reply.

please guide me in detail, how can i solve this problem to have loadbalancing.?

4
add chain=prerouting src-address-list=odd in-interface=Lan action=mark-connection \ new-connection-mark=odd passthrough=yes
add chain=prerouting src-address-list=odd in-interface=Lan action=mark-routing \ new-routing-mark=odd passthrough=no
add chain=prerouting src-address-list=even in-interface=Lan action=mark-connection \ new-connection-mark=even passthrough=yes
add chain=prerouting src-address-list=even in-interface=Lan action=mark-routing \ new-routing-mark=even passthrough=no

Remove those rules.

5

still unable to have loadbalancing.

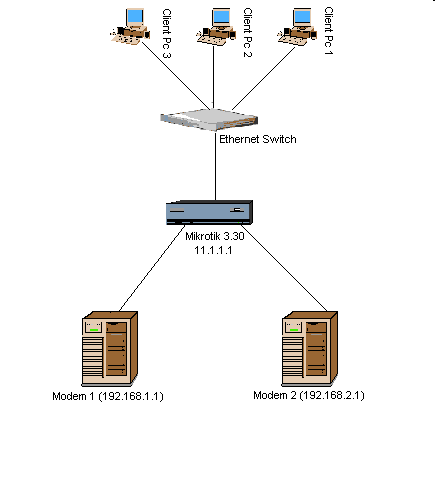

I attached the digram of required configuration.

and details as follow

lan = 11.1.1.1/24

Modem 1 = 192.168.1.1 (pppoe) 2Mb

Modem 2 = 192.168.2.1 (pppoe) 2Mb

please guide me how users can use 4Mb downloading from both modems.
