OmniTIK 5 ac indoor mode

RouterOS Wireless Networking
1

Hi all,

maybe you have an explanation for this:

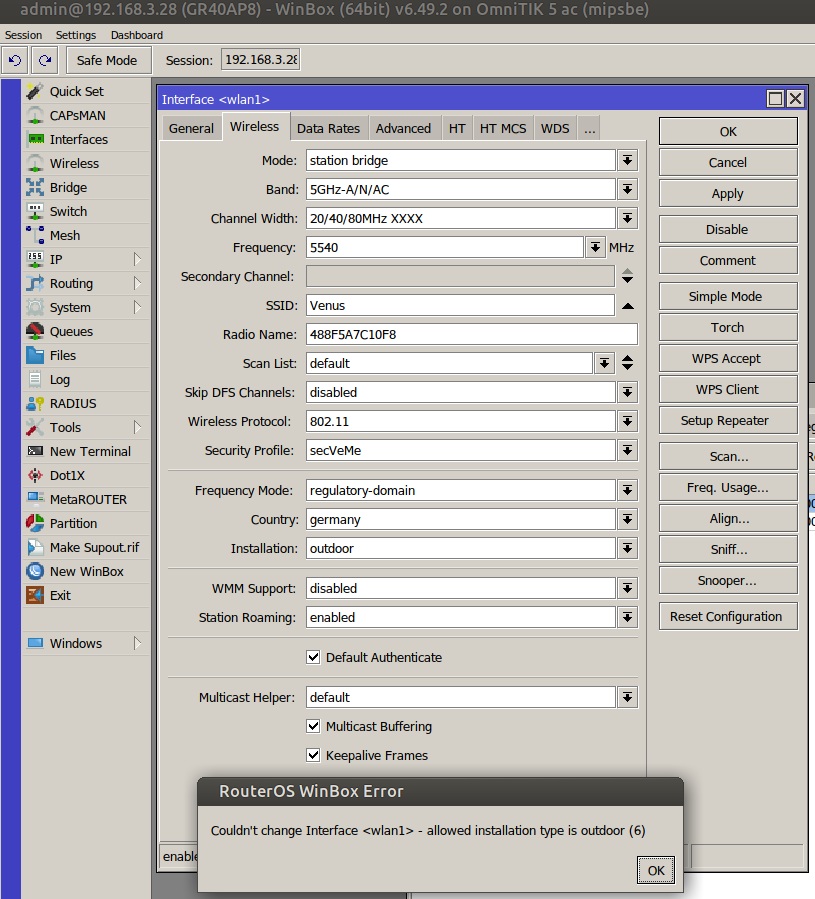

I can’t switch my OmniTIK 5ac (ROS 6.49.2) to “indoor” Installation.
Bildschirmfoto zu 2022-01-11 14-56-28.png
In words:

[admin@GR40AP8] /interface wireless> set installation=indoor wlan1
failure: allowed installation type is outdoor
[admin@GR40AP8] /interface wireless>

This is just strange to me. I would like to use a lower frequency range like 5180 MHz to support further devices that can’t connect to the current high channel frequency.
The OmniTIK 5 ac should be able and allowed according to:

[admin@GR40AP8] /interface wireless info> country-info germany
  ranges: 2402-2482/b,g,gn20,gn40(20dBm)
          2417-2457/g-turbo(20dBm)
          5170-5250/a,an20,an40,ac20,ac40,ac80,ac160,ac80+80(23dBm)/passive,indoor
          5170-5330/a,an20,an40,ac20,ac40,ac80,ac160,ac80+80(20dBm)/dfs,passive,indoor
          5250-5330/a,an20,an40,ac20,ac40,ac80,ac160,ac80+80(20dBm)/dfs,passive,indoor
          5490-5710/a,an20,an40,ac20,ac40,ac80,ac160,ac80+80(27dBm)/dfs,passive
          5190-5310/a-turbo(20dBm)/dfs
          5180-5300/a-turbo(20dBm)/dfs
          5520-5680/a-turbo(27dBm)/dfs,passive
          5510-5670/a-turbo(27dBm)/dfs,passive
          902-927/b,g,g-turbo,gn20,gn40(30dBm)

[admin@GR40AP8] /interface wireless info>

I am puzzled as I can’t find a parameter that prevents the switch to indoor installation.

Any idea??

BR
Uwe

2

This device is designed and certified for outdoor usage. Indoor freq are prohibited outdoor. The device is locked on outdoor usage, there is no parameter we can set to change this. Changing this would invalidate the ETSI or CE certification. (Just reminder: Outdoor freq are not prohibited by law for use indoor)
If you are using it indoor, you will have to cheat on the country, to be able to use indoor freq. (5180-5320).
Cheating is illegal !? Maybe. But this is not in conflict with legal RF usage, when you are using it indoor and limit the TXpower to the indoor legal values for Germany. ((23 and 20 dBm) - 6dBi antenna gain.)

3

Oh thats why bpwl!!
All this time I was under the impression that Normis and the Latvian folks thought Germans lived outside :wink:

Caveat: I have to add a disclaimer here, this is a joke, and is not to be taken seriously…
(for those with no sense of humour and we know who you are)

4

Ah yes, I didn’t think about the certification, although being aware of the legal limitation.
That makes perfect sense, kind of legal enforcement. I will have a look at your suggested work around.
Thank you very much for the swift reply!

BR
Uwe

5

I am truly missing words on this. Maybe better to leave it uncommented.

6

I have often been told that Germans (by other Europeans, not some NA folklore) have no sense of humour, I guess it isnt true! :-0

7

https://m.youtube.com/watch?v=ZfhCQrUVLEE

8

Der Alte !
Wow. Long time ago !

@anav
Humor me. How many foreign nationalities have you really been in close contact with ?
Not online. Real life contact.
You’d be surprised how funny Germans can be.

I had some of my best times working in a team based in Stuttgart.

9

Certainly that is a matter of taste.
For sure it does not meet my taste if you insult people like Normis and declare whole nations (Latvian and German) as idiots.

If this is your thing, for me that recipe of making a joke is far too simple minded.

10

anav in Canada. Interesting regulatory domain it is.

11

Derrick, start:1974, end:1998, episodes:281
Der Alte, start 1977, episodes till now 440+

The clip was from Derrick. Stephan Derrick alsway instructed Harry to get the car ready. This amusing clip, Harry was this time driven by Stephan.

12

Damn, mixed them up !
I saw both series when I was A LOT younger (I think I stopped around '93 or so, when I left my parent’s house, since it was my father always watching those shows).

13

No worries, but why so defensive? Much better to laugh a little and if you noticed the initial joke was so preposterous, how could anyone take it seriously?
Not my fault you fell into the hole of stereotype that is broadly known and mysteriously no one in Europe (well those that frequent MT forums) has ever heard of before??

Perhaps the majority of folks wearing these that are attracted to MT products!
https://c.o0bg.com/rf/image_960w/Boston/2011-2020/2018/10/18/BostonGlobe.com/Ideas/Images/wear-space_main.jpg

(I modified my initial entry to be more accurate)

14

bpwl, yes not sure if you mean federal legislation or WIFI legislation but I still have no clue what DFS is used for at least in these parts… I always turn it off. :slight_smile:
or did you simply mean we can be a weird bunch? (which I dont necessarily disagree with).

15

@anav: regulatory domain Canada for the Omnitik outdoor-only device allows the ETSI indoor freq as outdoor freq at a lower (23dBm) TXpower (that cannot be used at all if an ETSI/Europe country is choosen in Omnitik). That lower TX-power is the same as the ETSI TXpower indoor.

You can ‘skip’ the DFS freq, not disable DFS functionality. Again ETSI countries have nothing in the allowed outdoor freq list if DFS is skipped. All freq are DFS only.
FCC (US and Canada) still have the very often used 5735 till 5835 range. Powerfull and no DFS restrictions. Prohibited in Europe. We have to use DFS!

Not using DFS is limiting your freq list. OK at home, not e.g. where we deploy 30 overlapping 5GHz AP, linked with 6 SXTSA5 P to MP 18 SXTsq in 5 GHz. (SXTSA5 are linked with CUBE with 5 GHz backup). It’s puzzling with channels, as some connections generate false radar detects for some channels.

[admin@hAPac2] > interface wireless info country-info canada
  ranges: 2402-2472/b,g,gn20,gn40(30dBm)
          2417-2457/g-turbo(20dBm)
          5170-5250/a,an20,an40,ac20,ac40,ac80,ac160,ac80+80(30dBm)/passive,indoor
          5170-5250/a,an20,an40,ac20,ac40,ac80,ac160,ac80+80(23dBm)/passive,outdoor
          5250-5330/a,an20,an40,ac20,ac40,ac80,ac160,ac80+80(27dBm)/dfs,passive
          5490-5590/a,an20,an40,ac20,ac40,ac80,ac160,ac80+80(27dBm)/dfs,passive
          5650-5730/a,an20,an40,ac20,ac40,ac80,ac160,ac80+80(27dBm)/dfs,passive
          5735-5835/a,an20,an40,ac20,ac40,ac80,ac160,ac80+80(30dBm)/outdoor
          5190-5230/a-turbo(23dBm)/indoor
          5230-5310/a-turbo(23dBm)/passive
          5740-5820/a-turbo(30dBm)/outdoor
          5180-5220/a-turbo(23dBm)/indoor
          5220-5260/a-turbo(23dBm)/passive,indoor
          5260-5300/a-turbo(23dBm)/dfs,passive
          5745-5825/a-turbo(30dBm)/outdoor
          902-927/b,g,g-turbo,gn20,gn40(30dBm)

[admin@hAPac2] > interface wireless info country-info etsi
  ranges: 2402-2482/b,g,gn20,gn40(20dBm)
          5170-5250/a,an20,an40,ac20,ac40,ac80,ac160,ac80+80(23dBm)/passive,indoor
          5170-5330/a,an20,an40,ac20,ac40,ac80,ac160,ac80+80(20dBm)/dfs,passive,indoor
          5250-5330/a,an20,an40,ac20,ac40,ac80,ac160,ac80+80(20dBm)/dfs,passive,indoor
          5490-5710/a,an20,an40,ac20,ac40,ac80,ac160,ac80+80(27dBm)/dfs,passive
          5190-5310/a-turbo(20dBm)/dfs
          5180-5300/a-turbo(20dBm)/dfs
          5520-5680/a-turbo(27dBm)/dfs,passive
          5510-5670/a-turbo(27dBm)/dfs,passive
          902-927/b,g,g-turbo,gn20,gn40(30dBm)
