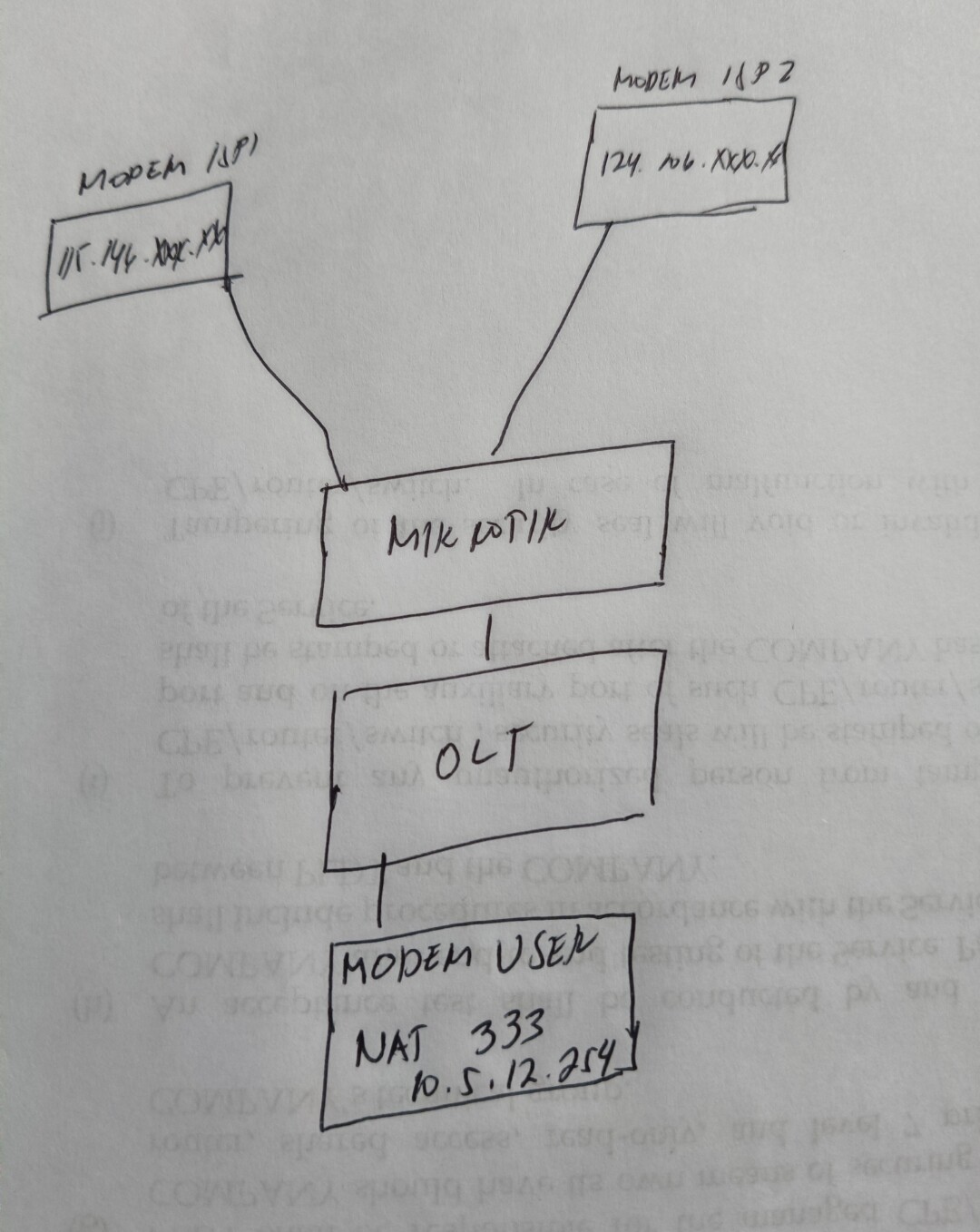

help me. configuring port forwarding for two public IP addresses on my router. In relation to my router’s NAT configuration, I am attempting to verify the status of the open ports using the following tool: https://www.yougetsignal.com/tools/open-ports. The tool’s functionality appears inconsistent, as it sometimes responds through WAN1 and at other times through WAN2. Thank you for your assistance. sorry for my english
/interface bridge
add add-dhcp-option82=yes dhcp-snooping=yes fast-forward=no name=
bridge-hotspot port-cost-mode=short protocol-mode=none
add add-dhcp-option82=yes dhcp-snooping=yes fast-forward=no name=bridge-local
port-cost-mode=short
add add-dhcp-option82=yes dhcp-snooping=yes fast-forward=no name=bridge-pppoe
port-cost-mode=short
/interface ethernet
set [ find default-name=sfp-sfpplus1 ] l2mtu=1598
set [ find default-name=sfp-sfpplus3 ] l2mtu=1598
set [ find default-name=sfp-sfpplus4 ] l2mtu=1598
/interface vlan
add interface=bridge-pppoe name=vlan2_1019-PPPoE vlan-id=1019
add interface=bridge-pppoe name=vlan2_1020-PPPoE vlan-id=1020
/interface list
add name=WAN
add name=LAN
/ip hotspot profile
set [ find default=yes ] hotspot-address=172.16.50.1 html-directory=abc
login-by=http-chap,https,http-pap name=HOTSPOT
add hotspot-address=172.16.50.1 html-directory=abc install-hotspot-queue=no
login-by=cookie,http-chap,https,http-pap,mac-cookie name=VENDO-100
/ip hotspot user profile
set [ find default=yes ] add-mac-cookie=no name=TRIAL rate-limit=10M/10M
/ip ipsec proposal
set [ find default=yes ] disabled=yes enc-algorithms=aes-256-cbc,aes-192-cbc
/ip pool
add name=hs-postpaid2 ranges=10.5.12.5-10.5.12.254
/ip smb users
set [ find default=yes ] disabled=yes read-only=no
/port
set 0 name=serial0
set 1 name=serial1
set 3 name=serial0
/ppp profile
set *0 use-ipv6=no
add change-tcp-mss=no dns-server=10.5.10.1 local-address=10.5.10.1 name=
HOME999 only-one=yes rate-limit=20M/20M remote-address=hs-postpaid2
use-compression=no use-encryption=no use-ipv6=no use-mpls=no use-upnp=no
set *FFFFFFFE on-down=“\r
\n” use-encryption=default use-ipv6=no
/queue type
set 9 pfifo-limit=100
/routing bgp template
set default disabled=no output.network=bgp-networks
/routing ospf instance
add disabled=no name=default-v2 originate-default=if-installed router-id=
20.20.20.5
add disabled=no name=default-v3 version=3
/routing ospf area
add disabled=no instance=default-v2 name=backbone-v2
add disabled=yes instance=default-v3 name=backbone-v3
/routing table
add fib name=RT-PL1
add fib name=PL1
add fib name=RT-PL5
add fib name=PL5
add disabled=no fib name=DNS
/snmp community
set [ find default=yes ] addresses=0.0.0.0/0
/system logging action
set 0 memory-lines=100
add name=pppoe target=disk
add name=support target=memory
/user group
set read policy=“local,read,test,winbox,api,romon,!telnet,!ssh,!ftp,!reboot,!w
rite,!policy,!password,!web,!sniff,!sensitive,!rest-api”
set write policy=“reboot,read,write,policy,test,web,sniff,sensitive,api,rest-a
pi,!local,!telnet,!ssh,!ftp,!winbox,!password,!romon”
/interface bridge port
add bridge=bridge-hotspot interface=ether13 internal-path-cost=10 path-cost=
10 trusted=yes
add bridge=bridge-pppoe interface=ether9 trusted=yes
/ip firewall connection tracking
set udp-timeout=10s
/ip neighbor discovery-settings
set discover-interface-list=none protocol=“”
/ip settings
set max-neighbor-entries=8192
/ipv6 settings
set accept-redirects=no accept-router-advertisements=no disable-ipv6=yes
forward=no max-neighbor-entries=1024 min-neighbor-entries=1023
soft-max-neighbor-entries=1023
/interface ethernet switch
set 1 name=switch2
/interface l2tp-server server
set default-profile=*E0 enabled=yes one-session-per-host=yes
/interface list member
add interface=bridge-pppoe list=LAN
add interface=vlan2_1019-PPPoE list=LAN
add interface=vlan2_1020-PPPoE list=LAN
/interface lte apn
set [ find default=yes ] ip-type=ipv4 ipv6-interface=*43 use-network-apn=no
/interface lte settings
set mode=serial
/interface ovpn-server server
add auth=sha1 certificate=*2 cipher=aes256-cbc default-profile=*9
mac-address=FE:84:00:60:33:0F name=ovpn-server1
require-client-certificate=yes
/interface pppoe-server server
add disabled=no interface=bridge-pppoe service-name=FIBERLINE
add disabled=no interface=vlan2_1020-PPPoE service-name=FIBER1
add disabled=no interface=vlan2_1019-PPPoE service-name=FIBER1-HHomes
/interface pptp-server serverPPTP connections are considered unsafe, it is suggested to use a more modern VPN protocol instead
set authentication=pap,chap,mschap1,mschap2 default-profile=*E0 enabled=yes
max-mru=1460 max-mtu=1460
/interface sstp-server server
set authentication=pap
/ip address
add address=115.146.xxx.98 comment=“STATIC WAN1” interface=ether1 network=
115.146.xxx.97
add address=124.106.xxx.32 comment=“STATIC WAN5” interface=ether5 network=
124.106.xxx.31
/ip arp
add address=172.16.55.250 interface=bridge-hotspot mac-address=
90:A2:DA:45:DE:FC
/ip cloud
set update-time=no
/ip dhcp-server
add address-pool=*1 interface=bridge-local lease-time=1h name=local-dhcp
add address-pool=*1C interface=*3F lease-time=1h name=vlan-antena
add address-pool=*2C interface=*41 name=vlan-vendo
add address-pool=*2B interface=*42 name=vlan100
/ip dhcp-server lease
add address=172.16.50.28 client-id=1:1e:ec:91:a4:c3:82 mac-address=
1E:EC:91:A4:C3:82 server=*2
/ip dns
set allow-remote-requests=yes cache-size=20480KiB
max-concurrent-tcp-sessions=200 servers=8.8.8.8,8.8.4.4
/ip dns static
add address=192.168.160.1 disabled=yes name=router type=A
add address=8.8.8.8 disabled=yes name=dns.google.com type=A
/ip firewall address-list
add address=10.5.12.254 comment=zz.aajuan_juan list=TELP_availed
add address=10.5.12.254 comment=zz.aajuan_juan list=IPTV_availed
/ip firewall filter
add action=passthrough chain=unused-hs-chain comment=
“place hotspot rules here” disabled=yes
/ip firewall mangle
add action=mark-connection chain=prerouting connection-mark=no-mark
connection-state=new new-connection-mark=viaISP1 protocol=tcp
add action=mark-connection chain=prerouting connection-mark=no-mark
connection-state=new new-connection-mark=viaISP5 protocol=tcp
add action=mark-routing chain=output connection-mark=viaISP1
new-routing-mark=RT-PL1 protocol=tcp
add action=mark-routing chain=output connection-mark=viaISP5
new-routing-mark=RT-PL5 protocol=tcp
add action=mark-routing chain=prerouting log-prefix=5 new-routing-mark=RT-PL5
passthrough=no src-address=10.5.12.2-10.5.12.254
/ip firewall nat
add action=passthrough chain=unused-hs-chain comment=
“place hotspot rules here” disabled=yes
add action=masquerade chain=srcnat comment=WAN
add action=dst-nat chain=dstnat comment=myrouter dst-port=333 protocol=tcp
to-addresses=10.5.12.254 to-ports=80
/ip firewall service-port
set tftp disabled=yes
set udplite disabled=yes
set sctp disabled=yes
/ip hotspot
add address-pool=*6 addresses-per-mac=1 idle-timeout=none interface=
bridge-hotspot name=WIFI profile=VENDO-100
add address-pool=*2B addresses-per-mac=1 disabled=no interface=*42 name=
VENDO-100 profile=VENDO-100
/ip hotspot service-port
set ftp disabled=yes
/ip hotspot user
set [ find default=yes ] limit-bytes-total=100000000000
/ip ipsec policy
set 0 disabled=yes
/ip ipsec profile
set [ find default=yes ] dpd-interval=2m dpd-maximum-failures=5
/ip proxy
set cache-administrator=“” enabled=yes parent-proxy=0.0.0.0
/ip proxy access
add disabled=yes dst-host=i.ibb.co
add action=redirect action-data=ibb.co/DptWFSL disabled=yes
add action=redirect action-data=172.16.50.1:8080 dst-host=!172.16.50.1
/ip proxy direct
add
/ip route
add check-gateway=ping comment=WAN1 disabled=no distance=1 dst-address=
0.0.0.0/0 gateway=115.146.xxx.97 routing-table=PL1 scope=30
suppress-hw-offload=no target-scope=10
add check-gateway=ping comment=WAN5 disabled=no distance=1 dst-address=
0.0.0.0/0 gateway=124.106.xxx.31 routing-table=PL5 scope=30
suppress-hw-offload=no target-scope=11
add check-gateway=ping comment=WAN5 disabled=no distance=1 dst-address=
0.0.0.0/0 gateway=124.106.xxx.31 routing-table=main scope=30
suppress-hw-offload=no target-scope=10
add check-gateway=ping comment=WAN1 disabled=no distance=1 dst-address=
0.0.0.0/0 gateway=115.146.xxx.97 routing-table=main scope=30
suppress-hw-offload=no target-scope=10
/ip service
set telnet disabled=yes
set ftp disabled=yes
set ssh disabled=yes
set www-ssl certificate=*A
set api port=8730
set winbox port=8292
set api-ssl disabled=yes
/ip smb shares
set [ find default=yes ] directory=share name=share
/ip upnp
set show-dummy-rule=no
/ipv6 nd
set [ find default=yes ] advertise-dns=no disabled=yes
/ipv6 nd prefix default
set autonomous=no
/ppp aaa
set accounting=no
/ppp secret
add caller-id=E0:4B:A6:82:C9:20 comment=test name=zz.aajuan_juan profile=
HOME999 service=pppoe
/routing ospf interface-template
add area=backbone-v2 disabled=no interfaces=*43 networks=10.110.100.0/28
priority=1
add area=backbone-v2 disabled=no interfaces=*44 networks=20.20.20.5 priority=
1
/routing rule
add action=lookup disabled=no dst-address=0.0.0.0/0 routing-mark=RT-PL1
src-address=0.0.0.0/0 table=PL1
add action=lookup disabled=no dst-address=0.0.0.0/0 routing-mark=RT-PL5
src-address=0.0.0.0/0 table=PL5
/system clock
set time-zone-autodetect=no
/system clock manual
set time-zone=+08:00
/system health settings
set cpu-overtemp-check=yes cpu-overtemp-threshold=100C
/system identity
set name=FBWAN1
/system leds
set 0 interface=*1E leds=user-led type=interface-status
/system logging
add disabled=yes topics=e-mail
add disabled=yes topics=ipsec
add action=disk disabled=yes prefix=-> topics=hotspot,info,debug
add action=pppoe topics=pppoe,info,account
add action=support topics=lte,!packet
/system note
set show-at-login=no
/system ntp client
set enabled=yes
/system ntp server
set manycast=yes
/system ntp client servers
add address=asia.pool.ntp.org
add address=133.243.238.243
add address=203.99.62.214
/system resource irq rps
set sfp-sfpplus4 disabled=no
set sfp-sfpplus1 disabled=no
set sfp-sfpplus3 disabled=no
set *1D disabled=yes
set *1E disabled=yes
set *1F disabled=yes
set *20 disabled=yes
set *21 disabled=yes
set *22 disabled=yes
set *23 disabled=yes
set *24 disabled=yes
set *25 disabled=yes
/system routerboard settings
set enter-setup-on=delete-key
/system watchdog
set automatic-supout=no watchdog-timer=no
/tool bandwidth-server
set authenticate=no enabled=no
/tool e-mail
set from=“” port=587 server=74.125.68.109 tls=starttls
/tool graphing
set store-every=hour
/tool mac-server
set allowed-interface-list=none
/tool mac-server ping
set enabled=no
/tool romon
set enabled=yes
/tool romon port
add interface=all
/tool sms
set channel=1 port=usb5 receive-enabled=yes
