Hi,
I am a beginner at Mikrotik and I have a RB750 v4.14 and I want to use it a s VPN server to connect clients to the Public IP from remote sites from internet. Can anyone help me on this. Should I upgrade the version first? If yes, can I store the configuration. the Internet is configured with pppoe account.
Thanks and regards!
At first please read following link
http://wiki.mikrotik.com/wiki/Manual:Interface/OVPN
Dear sir, I am at the a begginer with mikrotik, this is why I am asking if anyone can help me with a practical example on how to make a connection to a Public IP Microtik router.
So I have a Mikrotik Router, (upgradet to 6 version) that works as a PPPoE router for the internet (cofigured from the Internet Service rovider). Now I want to make the possibility to connect at the local Internal LAN through the INTERNET with the Open VPN Client installed on the remote computer.
So if I have a public IP on the Mikrotik and a client on the internet somewhere, it should be connected through a secure Vpn tunnel.

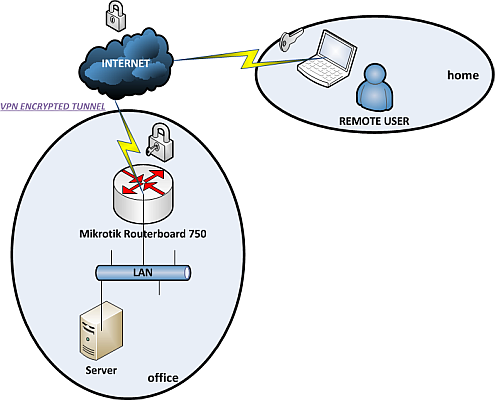

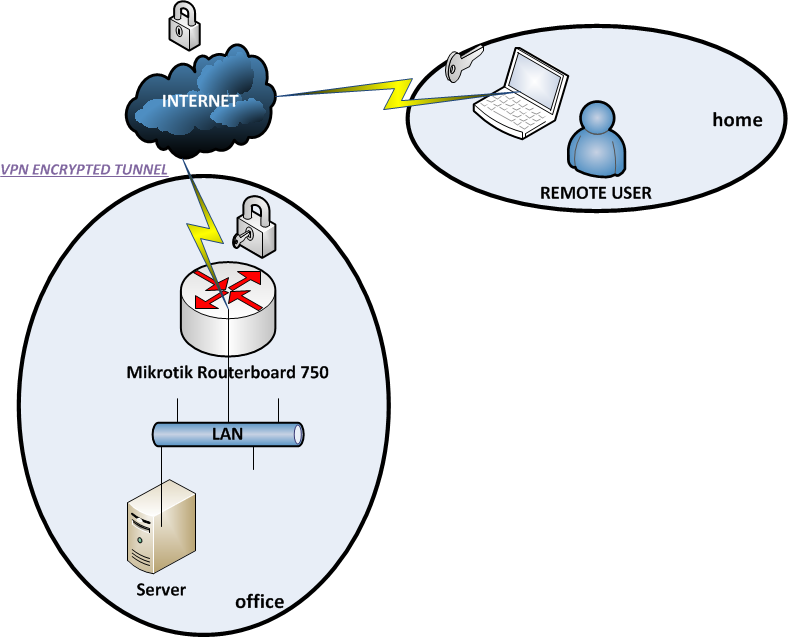

Please see the attached design
I am a beginner at mikrotik, so it’s difficult for me If i don’t have a concrete example.
I have a public IP binded to the WAN port of the Mikrotik and I want remote clients to access internal LAN to get access to emails or documents. It should be used a VPN to make the secure connection available.
Can someone help me?
regards!
Hi

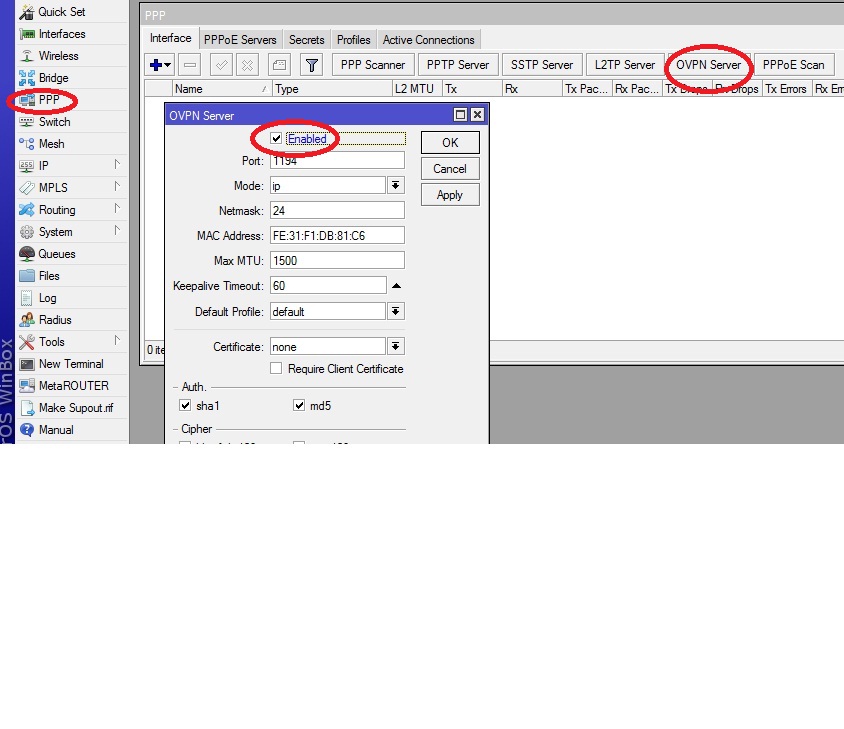

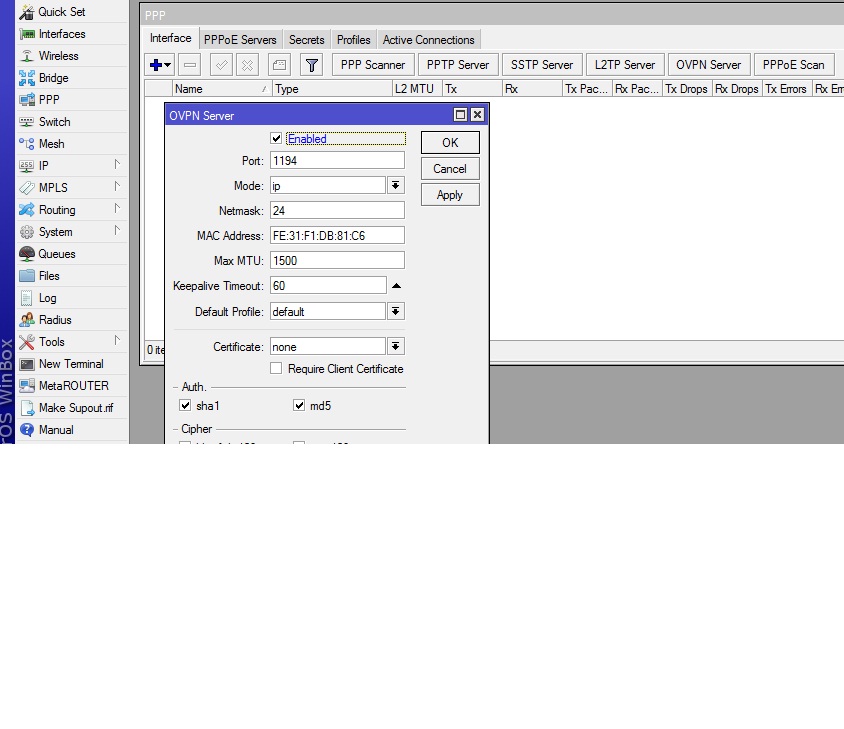

you can configure open vpn as per image

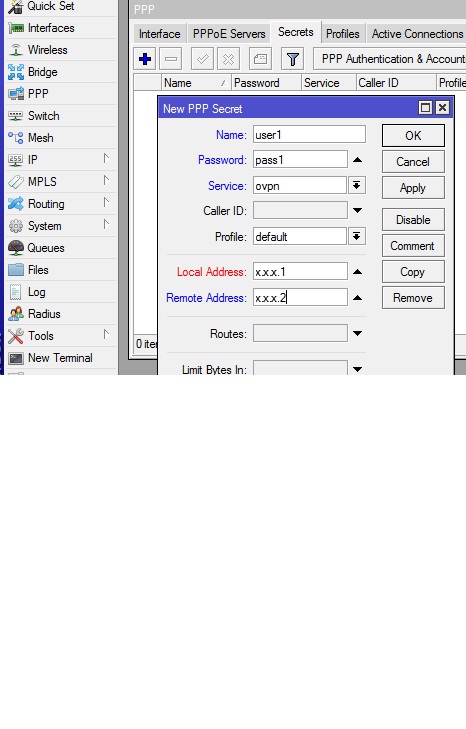

Now you have to create user & password from secrets.
Hi Sir, thanks for your reply.
I have configured as your example, but the client cannot be connected.
“Unable to obtain Session ID from xx.xx.xx.136:443: XML-RPC: ConnectionRefusedError: 10061: No connection could be made because the target machine actively refused it..”
What should I configure on Mikrotik Router ppp User-> Local address / Remote address?
Thanks & regards!
Dear ingdritan,
can you provide me your configuration?
