Hello.
Well, I have in mind a configuration for access my two factory locations, each one has a RB750, but I don’t have any Static IP address to use any one as VPN Server.

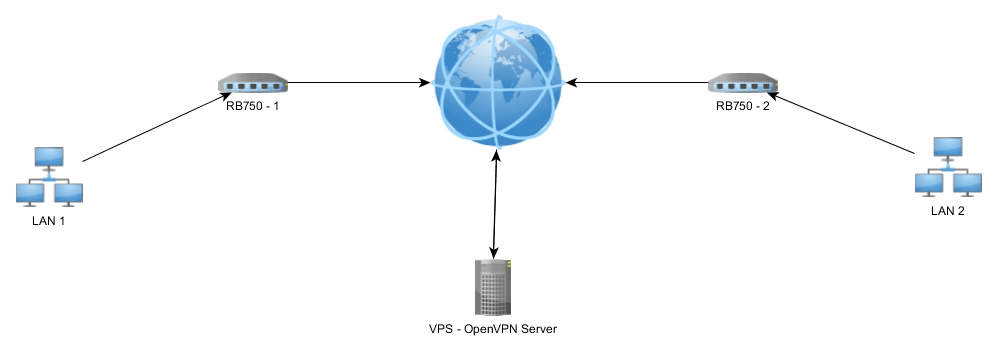

VPN Diagram.jpg
So I have a VPS with debian 8 running OpenVPN Server, and it uses certificates for each client, and I use the ta.key, every client I connect is running fine, even iPhone, and some smartphones.

My question, how can I configure the OVPN Client in my RB’s so they can use the ta.key files to connect to servers?
and How I need to do all the configuration, because I tried to make the connections with and without the ta.key, but I cannot manage to establish contact with the server, at least the server don’t log any activity from the RB’s, is there any special route I need to add? or just the interface with all the parameters?

I hopen it is understandable.

Thanks in advance for the help.

2

OpenVPN in current RouterOS does not support tls-auth (ta.key) option. You can try to wait for RouterOS v7 (codename “Unicorn” :wink:), which was promised to get long requested udp support, and hopefully it will also have all other goodies (although nothing was confirmed so far).

3

Thanks.
Sad thing that TLS is not supported yet.

Now. One thing, I tried to connect also without the ta.key, also not activity in my server log.

How do I need to config the client in one router to get to try the connection? in the router side, just have the not connected message, but I think the router is not making the proper routing to try to connect to server.

Can someone help me to configure the client side on RB? I check all the tutorials, but I don’t have any activity log from RB on server side.

Thanks.

4

If you see no connection attempts in server log at all, it’s time for standard question #1, does your server use tcp or udp? It it’s the latter (default for OpenVPN), then RouterOS does not support that either (yet).
