OpenVPN Client

RouterOS General
1

Hi gurus and members,

I am having difficulties in figuring out where should I insert the settings provided by my VPN provider.

The settings laid out by the provider is as follows:

client
dev tun
reneg-sec 0
persist-tun
persist-key
ping 5
ping-exit 30
nobind
comp-lzo no
remote-random
remote-cert-tls server
auth-nocache
route-metric 1
cipher AES-256-CBC
auth sha512

From winbox, the settings available aren’t many and thus many of the settings I don’t know where to plug them in, especially the auth section where I read https://wiki.mikrotik.com/wiki/Manual:IP/IPsec#Authentication_Header_.28AH.29 sha2 = sha256/512, while in my RB951G it is not available.

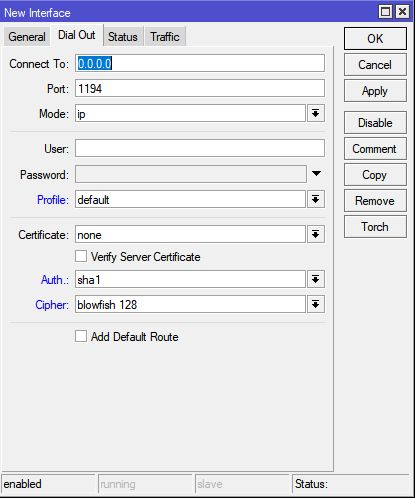

Screenshot - 2020-02-22, 09_48.jpg
So, where do I input the settings above in the Mikrotik?

Thank you.
H

2

The option “auth sha512” isn’t supported I don’t believe.

3

yeah, I suspected the sha512 setting causes connection failure. Hard to believe that Mikrotik does not support sha512 in the RB951. :frowning:

4

It’s actually not at all hard to believe, they had half-implemented OpenVPN for many years, so one more missing feature is no surprise. They will surely add it, but OpenVPN was never high priority for them.

5

I say it is surprising because Mikrotik is a commercial/enterprise grade versatile network product, yet it does not support sha256/512.

Yet, household grade router that can be installed DDWRT firmware actually supports sha512 in OpenVPN.

Hopefully Mikrotik can implement ciper sha256/512 in OpenVPN soon.


Henry

6

There’s simple explanation, others simply took open-source OpenVPN with all features, MikroTik wrote their own implementation.

7

It’s the only way it would fit.

8

Two years later… release 7.1.3 finally supports UDP, but still no SHA512 :open_mouth:

9

Sha512 is in 7.2rc.

10

What about AES-GCM? Because CBC mode is insecure and must not be used - it’s dropped by many apps/protocols.
