OpenVPN configuration issues

RouterOS Beginner Basics
1

i have been trying for quite some time to get openvpn working. I have been following the wiki openvpn guide.

The situation i would like is to have is the server on my mikrotik 750g and a vista client.

I am at the point that a connection is made but an TLS error is thrown.

I have tried several things

  • installed openvpn on a different computer
  • different passwords
  • installing client certificates on server
  • at server side no client certificate needed
  • different ip ranges in ovpn pool
  • tap instead of tun (didn’t work)
  • changed log level at client side but not more relevant info
  • made sure time on both machines was the same
  • …

i think it is a certificate related problem but could use some help :frowning: .

here is the log from the openvpn client

Sat Dec 26 22:29:05 2009 OpenVPN 2.0.9 Win32-MinGW [SSL] [LZO] built on Oct 1 2006
Sat Dec 26 22:29:05 2009 IMPORTANT: OpenVPN’s default port number is now 1194, based on an official port number assignment by IANA. OpenVPN 2.0-beta16 and earlier used 5000 as the default port.
Sat Dec 26 22:29:05 2009 Control Channel MTU parms [ L:1559 D:140 EF:40 EB:0 ET:0 EL:0 ]
Sat Dec 26 22:29:05 2009 Data Channel MTU parms [ L:1559 D:1450 EF:59 EB:4 ET:0 EL:0 ]
Sat Dec 26 22:29:05 2009 Local Options hash (VER=V4): ‘5cb3f8dc’
Sat Dec 26 22:29:05 2009 Expected Remote Options hash (VER=V4): ‘898ae6c6’
Sat Dec 26 22:29:05 2009 Attempting to establish TCP connection with 192.168.178.2:1194
Sat Dec 26 22:29:05 2009 TCP connection established with 192.168.178.2:1194
Sat Dec 26 22:29:05 2009 TCPv4_CLIENT link local: [undef]
Sat Dec 26 22:29:05 2009 TCPv4_CLIENT link remote: 192.168.178.2:1194
Sat Dec 26 22:29:05 2009 TLS: Initial packet from 192.168.178.2:1194, sid=f2cb9055 3dcc86cc
Sat Dec 26 22:29:06 2009 VERIFY OK: depth=1, /C=US/ST=CA/L=SanFrancisco/O=FortFunston/CN=openvpn/emailAddress=mail@host.domain
Sat Dec 26 22:29:06 2009 VERIFY OK: nsCertType=SERVER
Sat Dec 26 22:29:06 2009 VERIFY OK: depth=0, /C=US/ST=CA/O=FortFunston/CN=server/emailAddress=mail@host.domain
Sat Dec 26 22:30:05 2009 TLS Error: TLS key negotiation failed to occur within 60 seconds (check your network connectivity)
Sat Dec 26 22:30:05 2009 TLS Error: TLS handshake failed
Sat Dec 26 22:30:05 2009 Fatal TLS error (check_tls_errors_co), restarting
Sat Dec 26 22:30:05 2009 TCP/UDP: Closing socket
Sat Dec 26 22:30:05 2009 SIGUSR1[soft,tls-error] received, process restarting
Sat Dec 26 22:30:05 2009 Restart pause, 5 second(s)

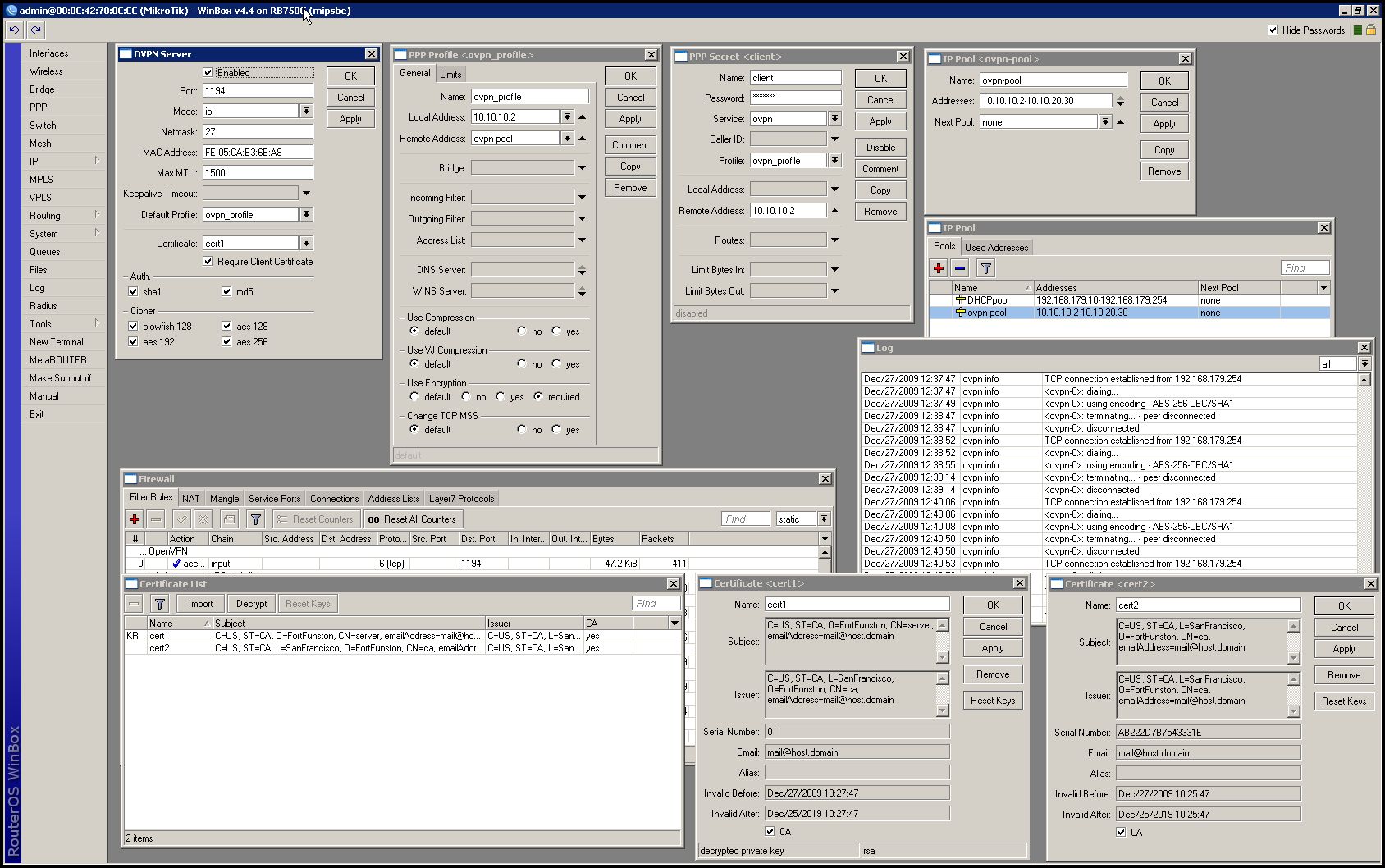

i have included a screenshot with all the relevant information. If more info is needed let me know.

2

Nobody ?

Does anybody have a similar configuration working ?

3

You have the local and remote IP configuration on the MT screenshots using the same IP. That may not be the only problem, but that won’t work.

4

thanks for pointing that out :smiley: . I have restored an earlier version with ovpn_pool 10.15.32.34-10.15.32.38 and local adres 10.15.32.30 but it is still stuck at the same point.
