Hello,
we have problems between two switches and MSTP. The interfaces between them goes up and down every few seconds and sw-core-lan-04 is isolated for round about 2 seconds. The sw-core-lan-03 shows than: root-bridge: yes
- Some base infos:

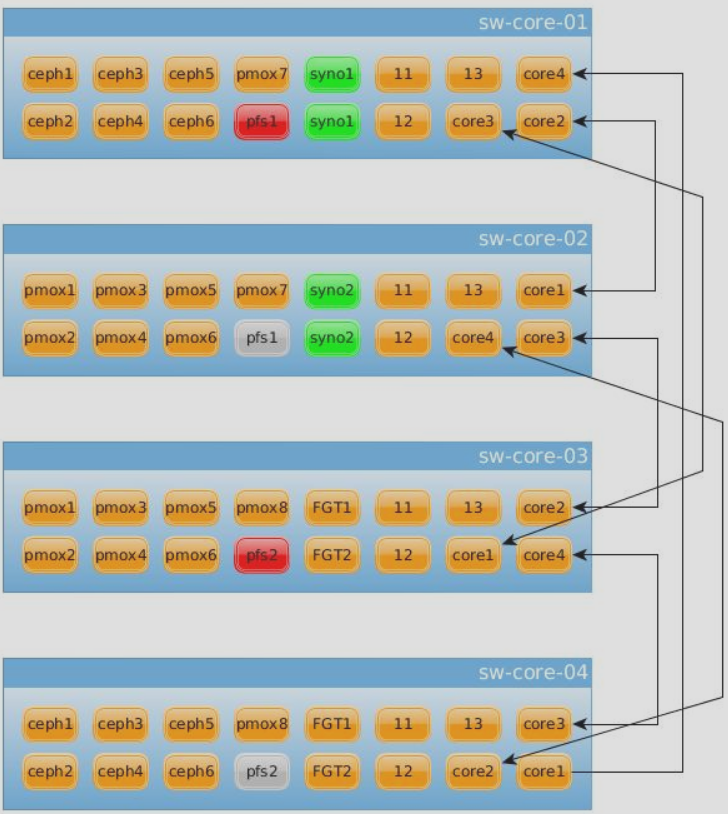

- 4 x CRS317-1G-16S
- All with RouterOS firmware 6.43.12
- We use SFP+ modules from Ubiquity and Allnet
- Bridge VLAN core-lan
- Bridge VLAN management
****
- sw-core-lan-01
sw-core-lan-01] > /interface bridge print
Flags: X - disabled, R - running
0 R ;;; defconf
name="core-lan" mtu=auto actual-mtu=1500 l2mtu=1592 arp=enabled arp-timeout=auto
mac-address=74:4D:28:3D:38:01 protocol-mode=mstp fast-forward=yes igmp-snooping=no auto-mac=no
admin-mac=74:4D:28:3D:38:01 ageing-time=5m priority=0x1000 max-message-age=20s forward-delay=15s
transmit-hold-count=6 region-name="QHA07" region-revision=1 max-hops=20 vlan-filtering=yes ether-type=0x8100
pvid=1 frame-types=admit-all ingress-filtering=no dhcp-snooping=no
1 R name="management" mtu=auto actual-mtu=1500 l2mtu=1592 arp=enabled arp-timeout=auto
mac-address=74:4D:28:3D:38:01 protocol-mode=rstp fast-forward=yes igmp-snooping=no auto-mac=yes
ageing-time=5m priority=0x8000 max-message-age=20s forward-delay=15s transmit-hold-count=6 vlan-filtering=no
dhcp-snooping=no
sw-core-lan-01] > /interface print detail
14 RS ;;; sw-core-03-lan-p14
name="sfp-sfpplus14" default-name="sfp-sfpplus14" type="ether" mtu=1500 actual-mtu=1500 l2mtu=1592
max-l2mtu=10218 mac-address=74:4D:28:3D:37:FE last-link-down-time=feb/28/2019 22:50:19
last-link-up-time=feb/28/2019 22:50:20 link-downs=1
15 RS ;;;sw-core-lan-04-p16
name="sfp-sfpplus15" default-name="sfp-sfpplus15" type="ether" mtu=1500 actual-mtu=1500 l2mtu=1592
max-l2mtu=10218 mac-address=74:4D:28:3D:37:FF last-link-up-time=feb/26/2019 17:18:01 link-downs=0
16 RS ;;;sw-core-lan-02-p15
name="sfp-sfpplus16" default-name="sfp-sfpplus16" type="ether" mtu=1500 actual-mtu=1500 l2mtu=1592
max-l2mtu=10218 mac-address=74:4D:28:3D:38:00 last-link-up-time=feb/26/2019 17:17:29 link-downs=0
sw-core-lan-01] > /interface bridge monitor core-lan
;;; defconf
state: enabled
current-mac-address: 74:4D:28:3D:38:01
root-bridge: yes
root-bridge-id: 0x1000.74:4D:28:3D:38:01
regional-root-bridge-id: 0x1000.74:4D:28:3D:38:01
root-path-cost: 0
root-port: none
port-count: 12
designated-port-count: 11
****
- sw-core-lan-02
sw-core-lan-02] > /interface bridge print
Flags: X - disabled, R - running
0 R ;;; defconf
name="core-lan" mtu=auto actual-mtu=1500 l2mtu=1592 arp=enabled arp-timeout=auto mac-address=CC:2D:E0:A3:5B:33
protocol-mode=mstp fast-forward=yes igmp-snooping=no auto-mac=no admin-mac=CC:2D:E0:A3:5B:33 ageing-time=5m
priority=0x2000 max-message-age=20s forward-delay=15s transmit-hold-count=6 region-name="QHA07"
region-revision=1 max-hops=20 vlan-filtering=yes ether-type=0x8100 pvid=1 frame-types=admit-all
ingress-filtering=no dhcp-snooping=no
1 R name="management" mtu=auto actual-mtu=1500 l2mtu=1592 arp=enabled arp-timeout=auto mac-address=CC:2D:E0:A3:5B:33
protocol-mode=none fast-forward=no igmp-snooping=no auto-mac=yes ageing-time=5m vlan-filtering=no
dhcp-snooping=no
sw-core-lan-02] > /interface print detail
14 RS ;;; sw-core-lan-04-p14
name="sfp-sfpplus14" default-name="sfp-sfpplus14" type="ether" mtu=1500 actual-mtu=1500 l2mtu=1592
max-l2mtu=10218 mac-address=CC:2D:E0:A3:5B:30 last-link-up-time=feb/26/2019 17:18:01 link-downs=0
15 RS ;;; sw-core-lan-01-p16
name="sfp-sfpplus15" default-name="sfp-sfpplus15" type="ether" mtu=1500 actual-mtu=1500 l2mtu=1592
max-l2mtu=10218 mac-address=CC:2D:E0:A3:5B:31 last-link-up-time=feb/26/2019 17:17:29 link-downs=0
16 RS ;;; sw-core-lan-03-p15
name="sfp-sfpplus16" default-name="sfp-sfpplus16" type="ether" mtu=1500 actual-mtu=1500 l2mtu=1592
max-l2mtu=10218 mac-address=CC:2D:E0:A3:5B:32 last-link-down-time=mar/04/2019 08:38:59
last-link-up-time=mar/04/2019 08:39:00 link-downs=33
sw-core-lan-02] > /interface bridge monitor core-lan
;;; defconf
state: enabled
current-mac-address: CC:2D:E0:A3:5B:33
root-bridge: no
root-bridge-id: 0x1000.74:4D:28:3D:38:01
regional-root-bridge-id: 0x1000.74:4D:28:3D:38:01
root-path-cost: 0
root-port: sfp-sfpplus15
port-count: 12
designated-port-count: 11
mst-config-digest: 36a394ba96d689fdbdc3264fea68bdb6
****
- sw-core-lan-03
sw-core-lan-03] > /interface bridge print
Flags: X - disabled, R - running
0 R ;;; defconf
name="core-lan" mtu=auto actual-mtu=1500 l2mtu=1592 arp=enabled arp-timeout=auto mac-address=CC:2D:E0:A3:5A:DE
protocol-mode=mstp fast-forward=yes igmp-snooping=no auto-mac=no admin-mac=CC:2D:E0:A3:5A:DE ageing-time=5m
priority=0x3000 max-message-age=20s forward-delay=15s transmit-hold-count=6 region-name="QHA07"
region-revision=1 max-hops=20 vlan-filtering=yes ether-type=0x8100 pvid=1 frame-types=admit-all
ingress-filtering=no dhcp-snooping=no
1 R name="management" mtu=auto actual-mtu=1500 l2mtu=1592 arp=enabled arp-timeout=auto mac-address=CC:2D:E0:A3:5A:DE
protocol-mode=rstp fast-forward=yes igmp-snooping=no auto-mac=yes ageing-time=5m priority=0x8000
max-message-age=20s forward-delay=15s transmit-hold-count=6 vlan-filtering=no dhcp-snooping=no
sw-core-lan-03] > /interface print detail
14 RS ;;; qh-a07-sw-core-01-p14
name="sfp-sfpplus14" default-name="sfp-sfpplus14" type="ether" mtu=1500 actual-mtu=1500 l2mtu=1592
max-l2mtu=10218 mac-address=CC:2D:E0:A3:5A:DB last-link-down-time=feb/28/2019 23:46:52
last-link-up-time=feb/28/2019 23:46:53 link-downs=5
15 RS ;;; qh-a07-sw-core-02-p16
name="sfp-sfpplus15" default-name="sfp-sfpplus15" type="ether" mtu=1500 actual-mtu=1500 l2mtu=1592
max-l2mtu=10218 mac-address=CC:2D:E0:A3:5A:DC last-link-down-time=mar/04/2019 08:39:10
last-link-up-time=mar/04/2019 08:39:11 link-downs=27
16 RS ;;; qh-a07-sw-core-04-p15
name="sfp-sfpplus16" default-name="sfp-sfpplus16" type="ether" mtu=1500 actual-mtu=1500 l2mtu=1592
max-l2mtu=10218 mac-address=CC:2D:E0:A3:5A:DD last-link-down-time=mar/04/2019 10:21:05
last-link-up-time=mar/04/2019 10:21:06 link-downs=3164
sw-core-lan-03] > /interface bridge monitor core-lan
;;; defconf
state: enabled
current-mac-address: CC:2D:E0:A3:5A:DE
root-bridge: no
root-bridge-id: 0x1000.74:4D:28:3D:38:01
regional-root-bridge-id: 0x1000.74:4D:28:3D:38:01
root-path-cost: 0
root-port: sfp-sfpplus14
port-count: 13
designated-port-count: 10
mst-config-digest: 36a394ba96d689fdbdc3264fea68bdb6
****
- sw-core-lan-04
sw-core-lan-04] > /interface bridge print
Flags: X - disabled, R - running
0 R ;;; defconf
name="core-lan" mtu=auto actual-mtu=1500 l2mtu=1592 arp=enabled arp-timeout=auto mac-address=74:4D:28:39:01:85
protocol-mode=mstp fast-forward=yes igmp-snooping=no auto-mac=no admin-mac=74:4D:28:39:01:85 ageing-time=5m
priority=0x4000 max-message-age=20s forward-delay=15s transmit-hold-count=6 region-name="QHA07"
region-revision=1 max-hops=20 vlan-filtering=yes ether-type=0x8100 pvid=1 frame-types=admit-all
ingress-filtering=no dhcp-snooping=no
1 R name="management" mtu=auto actual-mtu=1500 l2mtu=1592 arp=enabled arp-timeout=auto mac-address=74:4D:28:39:01:85
protocol-mode=none fast-forward=yes igmp-snooping=no auto-mac=yes ageing-time=5m vlan-filtering=no
dhcp-snooping=no
sw-core-lan-04] > /interface ethernet print detail
14 RS ;;; qh-a07-sw-core-lan-02-p14
name="sfp-sfpplus14" default-name="sfp-sfpplus14" mtu=1500 l2mtu=1592 mac-address=74:4D:28:39:01:82 orig-mac-address=74:4D:28:39:01:82 arp=enabled arp-timeout=auto loop-protect=default loop-protect-status=off
loop-protect-send-interval=5s loop-protect-disable-time=5m auto-negotiation=yes advertise=10M-half,10M-full,100M-half,100M-full,1000M-half,1000M-full full-duplex=yes tx-flow-control=off rx-flow-control=off speed=10Gbps
bandwidth=unlimited/unlimited switch=switch1
15 RS ;;; qh-a07-sw-core-lan-03-p16
name="sfp-sfpplus15" default-name="sfp-sfpplus15" mtu=1500 l2mtu=1592 mac-address=74:4D:28:39:01:83 orig-mac-address=74:4D:28:39:01:83 arp=enabled arp-timeout=auto loop-protect=default loop-protect-status=off
loop-protect-send-interval=5s loop-protect-disable-time=5m auto-negotiation=yes advertise=10M-half,10M-full,100M-half,100M-full,1000M-half,1000M-full full-duplex=yes tx-flow-control=off rx-flow-control=off speed=10Gbps
bandwidth=unlimited/unlimited switch=switch1
16 RS ;;; qh-a07-sw-core-lan-01-p15
name="sfp-sfpplus16" default-name="sfp-sfpplus16" mtu=1500 l2mtu=1592 mac-address=74:4D:28:39:01:84 orig-mac-address=74:4D:28:39:01:84 arp=enabled arp-timeout=auto loop-protect=default loop-protect-status=off
loop-protect-send-interval=5s loop-protect-disable-time=5m auto-negotiation=yes advertise=10M-half,10M-full,100M-half,100M-full,1000M-half,1000M-full full-duplex=yes tx-flow-control=off rx-flow-control=off speed=10Gbps
bandwidth=unlimited/unlimited switch=switch1
sw-core-lan-04] > /interface bridge monitor core-lan
;;; defconf
state: enabled
current-mac-address: 74:4D:28:39:01:85
root-bridge: no
root-bridge-id: 0x1000.74:4D:28:3D:38:01
regional-root-bridge-id: 0x1000.74:4D:28:3D:38:01
root-path-cost: 0
root-port: sfp-sfpplus16
port-count: 13
designated-port-count: 10
mst-config-digest: 36a394ba96d689fdbdc3264fea68bdb6
In our log, we have:
...
Mar 4 10:00:52 sw-core-lan-03 sfp-sfpplus16 link up (speed 10G, full duplex)
Mar 4 10:01:22 sw-core-lan-04 sfp-sfpplus15 link down
Mar 4 10:01:23 sw-core-lan-04 sfp-sfpplus15 link up (speed 10G, full duplex)
Mar 4 10:01:26 sw-core-lan-03 sfp-sfpplus16 link down
Mar 4 10:01:27 sw-core-lan-03 sfp-sfpplus16 link up (speed 10G, full duplex)
Mar 4 10:01:42 sw-core-lan-04 sfp-sfpplus15 link down
Mar 4 10:01:43 sw-core-lan-04 sfp-sfpplus15 link up (speed 10G, full duplex)
Mar 4 10:01:48 sw-core-lan-03 sfp-sfpplus16 link down
Mar 4 10:01:49 sw-core-lan-03 sfp-sfpplus16 link up (speed 10G, full duplex)
Mar 4 10:01:53 sw-core-lan-03 sfp-sfpplus16 link down
Mar 4 10:01:54 sw-core-lan-03 sfp-sfpplus16 link up (speed 10G, full duplex)
Mar 4 10:02:20 sw-core-lan-03 sfp-sfpplus16 link down
Mar 4 10:02:21 sw-core-lan-03 sfp-sfpplus16 link up (speed 10G, full duplex)
Mar 4 10:02:24 sw-core-lan-04 sfp-sfpplus15 link down
Mar 4 10:02:26 sw-core-lan-04 sfp-sfpplus15 link up (speed 10G, full duplex)
...
Maybe, we have a configuration error, or one of the SFTPs are bad.
Any suggestions ?
