2x RB411AH + R52n Distance 1.51 KM + Mars Antennas DUAL 23DBI
Radio TX only 10dBm in center CITY KAUNAS!!!
See all in the pictures
First resume:
best settings: first AP second station bridge with EOIP tunnel
bugs: not work with WDS mode and nstreem
i will post configs in this week.
link: distance:
http://maps.google.com/maps/ms?ie=UTF8&hl=lt&msa=0&ll=54.917277,23.938909&spn=0.017833,0.038452&z=15&msid=104004358681538305873.00046bef6c5a9a2725a52

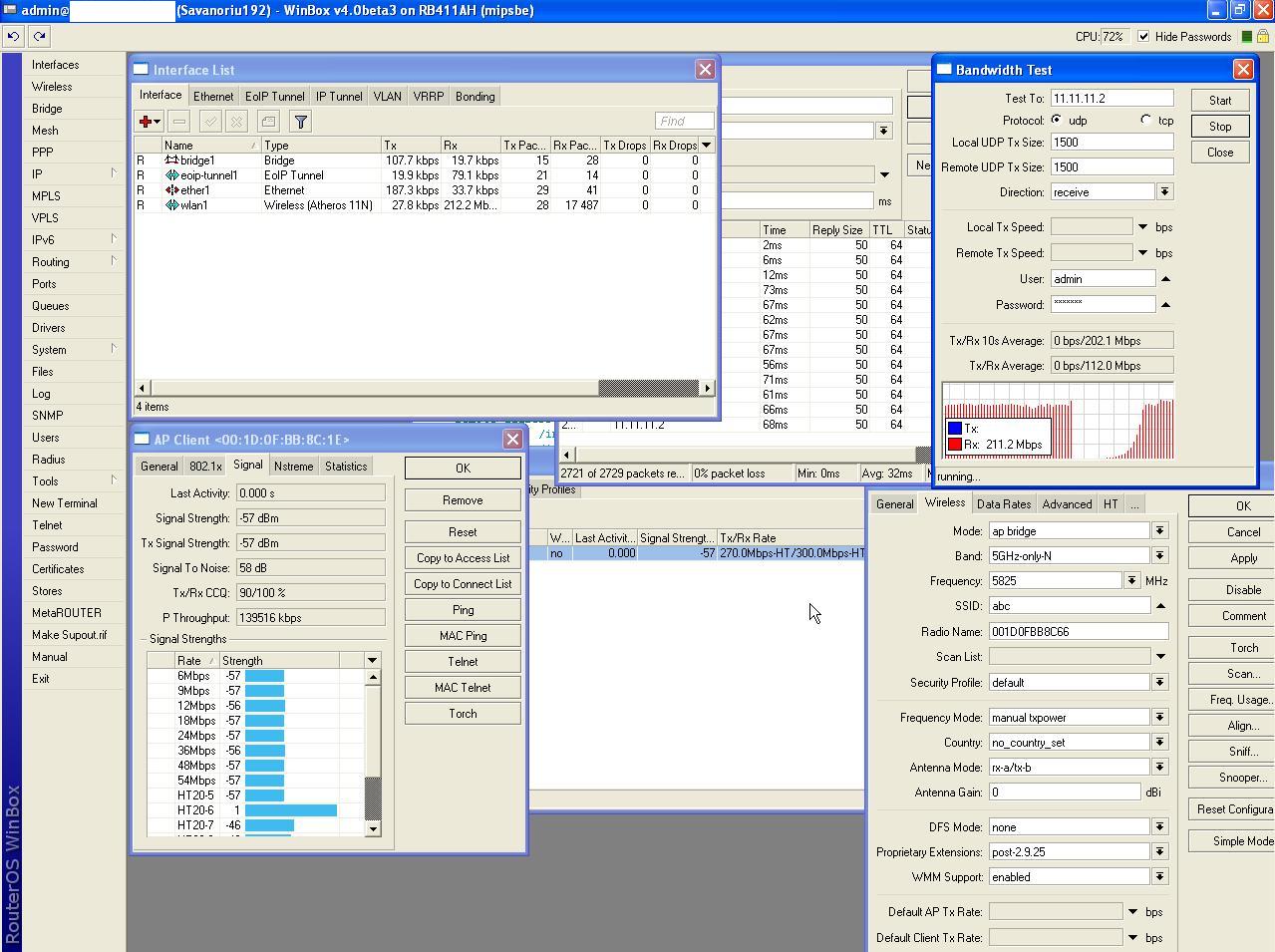

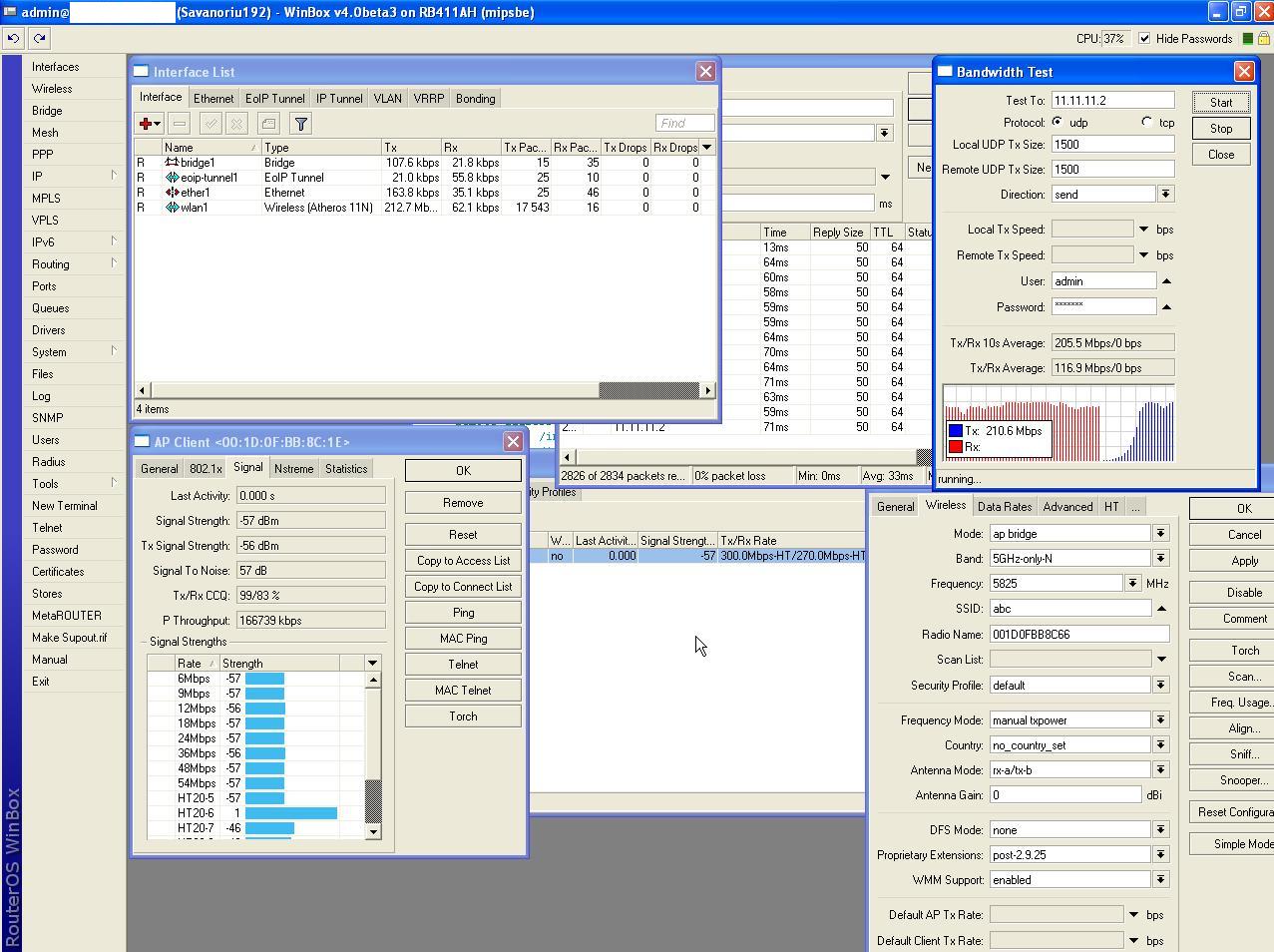

TEST pictures:attached
best regards to Normis http://www.frineta.lt TEAM
in few days i will POST all configs mounting process…etc…
N411AH.zip (978 KB)
Can you run a TCP test?
realy link is not finished yet so it is not finaly results and i will post updates later! remember that test are rb to rb, 411ah is has not enouth CPU power to run normal TCP tests, later i i would test bridge ON PC to PC
Look here:
file attached on first post
N411AH.zip [977.9 KiB]
TCP-Test is useless for 11N. I’ve tested with 2x411AH connected with R52N and
2xRB450G directly connected with Cable. Both max out at ~80MBit TCP.
So it’s a CPU-Test and not a test of connection speed.
UDP gives 220MBit and ~500MBit.
Stefan

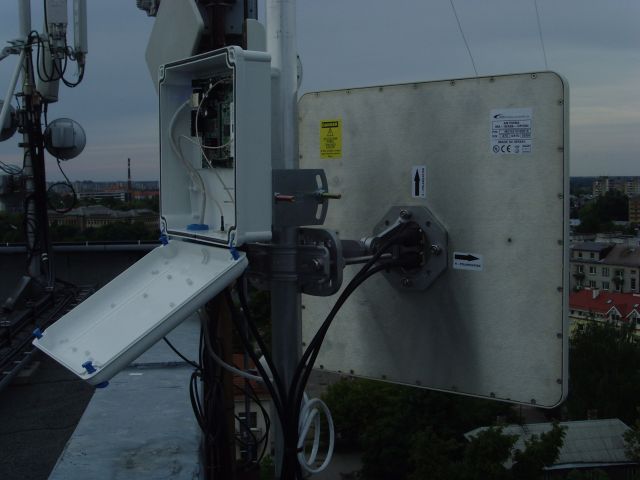

TOWER PICTURES
attached to zip:
tower mount.zip (517 KB)
Can you run UDP bandwith test in both directions with this setup? Do you reach 100 mbps full duplex?
Can you clarify this?
bugs: not work with WDS mode and nstreem
Do you mean that nstreme doesn’t work, and wds mode doesn’t work, or do you mean wds doesn’t work with nstreme?
I am trying a wds nstreme link not getting great results - frequent disconnects. WDS without nstreme seems somewhat better but 2-way speed tests kill the link or take it down to unusable speeds.
Randy
