Overclocking RB112

[jalokim]

Hi,

I found this topic:

@jarosoup

@stealth

I setted RB112 to 200Mhz by adding 1khz resistor to R7 position and jumper on JP7. Works fine

Nice, thanks for sharing

Can anyone confirm this ?
If yes, can You make any photos ?

Thanks,
MJ

[korkakak]

@jalokim

Hi,

I found this topic:

@jarosoup

@stealth

I setted RB112 to 200Mhz by adding 1khz resistor to R7 position and jumper on JP7. Works fine

Nice, thanks for sharing

Can anyone confirm this ?
If yes, can You make any photos ?

Thanks,
MJ

The information suplied is mistaken! 1kHz resistor??? second grade physics. Resistors → ohms not hz So you may experiment with kΩ resistors and let us know buddy

Good luck

[normis]

Infineon reports that it will not be stable if you do this, but well - it’s your router and you are free to try.

[thavinci]

Well this is rebelliously too late, but for those interested, this does work.


The rb112 are really too underpowered to do anything with and we have a room full of them, hence trying to revive them for something simple.

I would however like to know what is meant by not stable?
Ive been running a bandwidth test for hours thus far.

[normis]

in that case - it works for you

[thavinci]

Is it maybe just a matter of cooling?

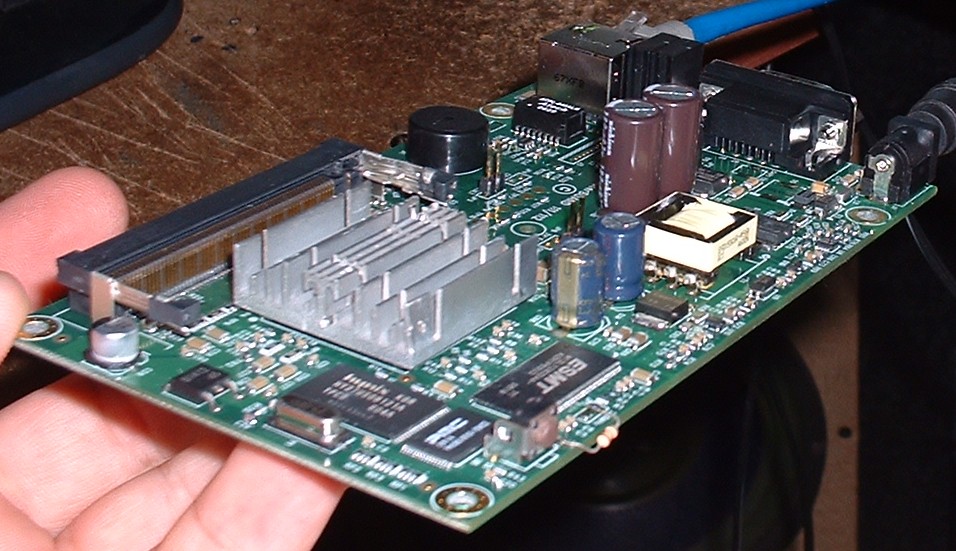

As you can see because the board is underpowered i actually don’t use one of the Mini-PCI’s and have opted to attach a mini heat sink to the CPU. “Just In-case”
