I have a P2P connection with 2 SXT G-5HnD. Both are running RouterOS 5.24 version.
They are about a 150meter apart. So this is not a big distance that needs to be transmitted.
The LOS is pretty good. Its on a small harbor and some masts of the boots are in the LOS. But no sails at this moment.
On the P2P connection I have an MPLS connection for from VLAN’s that transfer 2 VLAN’s to the other side. My MGMT VLAN and the “Internet” vlan.

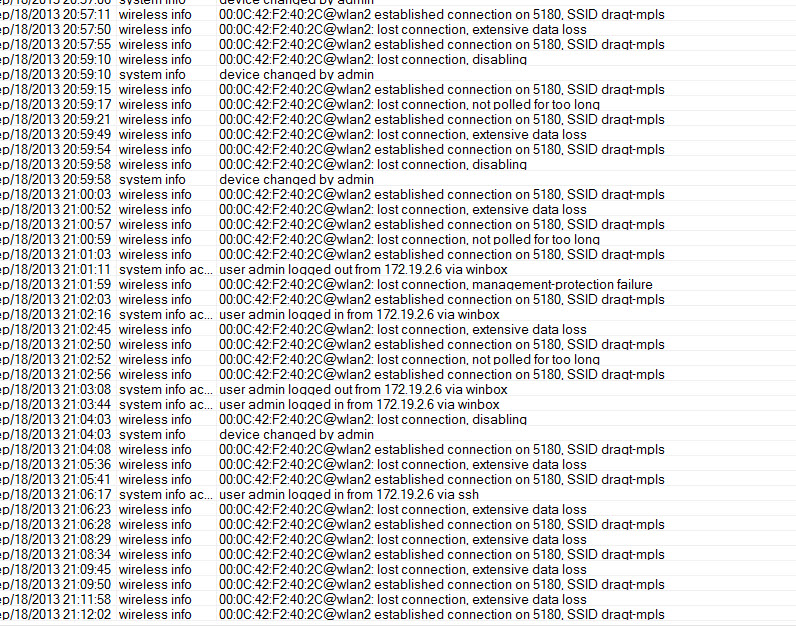

My issue is that the P2P connection is unstable. I get a lot of disconnects in the WiFi, and at this moment I have no idea anymore exactly where to troubleshoot.
Can somebody point me in some directions. I think the AccesPoints are pretty good aligned, but they are not very good accessible for me to really check. I’m using the 5GHz range. There are no other access points sending in the same signal.
But the second accesspoints keeps disconnecting. Sometimes the connection works for hours (or well the connection is up. But it will probably not mean that the the DHCP requests will be send over it.
I get a lot of complains that there is no Internet on the behind the P2P connection.
/interface wireless
set 0 adaptive-noise-immunity=none allow-sharedkey=no antenna-gain=0 area=“”
arp=enabled band=5ghz-a/n basic-rates-a/g=6Mbps bridge-mode=enabled
channel-width=20/40mhz-ht-above compression=no country=no_country_set
default-ap-tx-limit=0 default-authentication=yes default-client-tx-limit=
0 default-forwarding=yes dfs-mode=none disable-running-check=no disabled=
no disconnect-timeout=3s distance=dynamic frame-lifetime=0 frequency=5180
frequency-mode=manual-txpower frequency-offset=0 hide-ssid=yes
ht-ampdu-priorities=0 ht-amsdu-limit=8192 ht-amsdu-threshold=8192
ht-basic-mcs=mcs-0,mcs-1,mcs-2,mcs-3,mcs-4,mcs-5,mcs-6,mcs-7
ht-guard-interval=any ht-rxchains=0,1 ht-supported-mcs=“mcs-0,mcs-1,mcs-2,
mcs-3,mcs-4,mcs-5,mcs-6,mcs-7,mcs-8,mcs-9,mcs-10,mcs-11,mcs-12,mcs-13,mcs-
14,mcs-15,mcs-16,mcs-17,mcs-18,mcs-19,mcs-20,mcs-21,mcs-22,mcs-23”
ht-txchains=0,1 hw-fragmentation-threshold=disabled hw-protection-mode=
none hw-protection-threshold=0 hw-retries=7 l2mtu=2290 mac-address=
00:0C:42:F2:40:2C max-station-count=2007 mode=bridge mtu=1500
multicast-helper=default name=wlan1 noise-floor-threshold=default
nv2-cell-radius=30 nv2-noise-floor-offset=default nv2-preshared-key=“”
nv2-qos=default nv2-queue-count=2 nv2-security=disabled
on-fail-retry-time=100ms periodic-calibration=default
periodic-calibration-interval=60 preamble-mode=both
proprietary-extensions=post-2.9.25 radio-name=000C42F2402C
rate-selection=advanced rate-set=default scan-list=default
security-profile=profile1 ssid=dragt-mpls station-bridge-clone-mac=
00:00:00:00:00:00 supported-rates-a/g=
6Mbps,9Mbps,12Mbps,18Mbps,24Mbps,36Mbps,48Mbps,54Mbps tdma-period-size=2
tx-power-mode=default update-stats-interval=disabled wds-cost-range=
50-150 wds-default-bridge=none wds-default-cost=100 wds-ignore-ssid=no
wds-mode=disabled wireless-protocol=any wmm-support=disabled
/interface wireless manual-tx-power-table
set wlan1 manual-tx-powers=“1Mbps:17,2Mbps:17,5.5Mbps:17,11Mbps:17,6Mbps:17,9M
bps:17,12Mbps:17,18Mbps:17,24Mbps:17,36Mbps:17,48Mbps:17,54Mbps:17,HT20-0:
17,HT20-1:17,HT20-2:17,HT20-3:17,HT20-4:17,HT20-5:17,HT20-6:17,HT20-7:17,H
T40-0:17,HT40-1:17,HT40-2:17,HT40-3:17,HT40-4:17,HT40-5:17,HT40-6:17,HT40-
7:17”
