Passtrought or Bridge ?

RouterOS Beginner Basics
1

Hi :smiley:

I need help with my Mikrotik RB411 and FritzBox 7360
What i neeed is passtrought or bridge i am not shure … and i dont know how can i do this
FB 7360 should be Master Router for all my Devices, Mikrotik i need only for Internet Provider as WLAN
Dial in with FritzBox 7360 and WAN IP shold be on it … i hope I’m explaining correctly and u understand what i mean

Thanks
Tifa

2

It looks like you want to connect to the provider’s WLAN network and then bridge the connection to the LAN port. Do you have the WiFi info for the provider?

This is rather like a CPE function but most WISPs provide the CPE to you so perhaps I misunderstand what you are doing.

3

Yes i Have WiFi Provider

Now is RB411 Master Router but i will VPN IPSEC from FritzBox 7360 to anoter FritzBox 7490
FritzBox is from AVM Germany and they have own IPSec

4

Can Nobody help me :cry:

5

You need to set the WLAN connection according to what the ISP requires. Then make a bridge and add the WLAN interface and Ether interface as ports on that bridge.

6

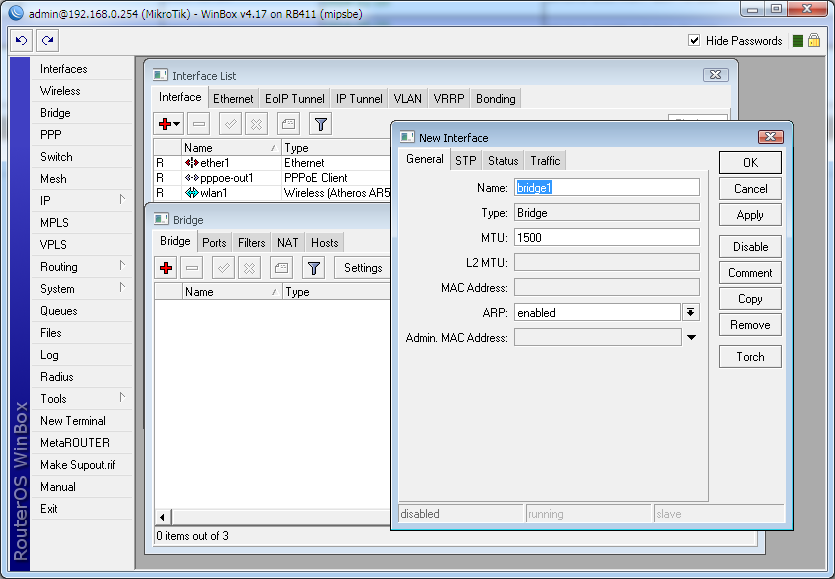

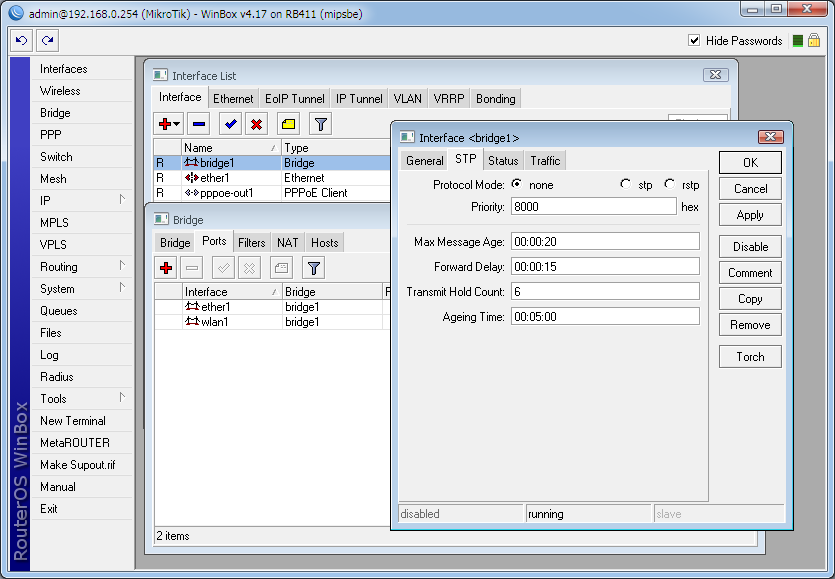

Something like that … now i have to turn off PPPoE on Mikrotik and connect with Fritzbox over PPPoE

7

The bridge ports look about right.
