I am struggling with a setup I need to deploy. I am trying to replace the simple queues that the pppoe server creates for manual PCQ queues.
Below I put the configuration that I use, but I have realized that the speed of the clients is not limited as I thought, the 6Mbps clients have seen how they download at 12,18, … 25Mbps. Fast path and Fast forward are disabled. Do I do something wrong?
Thank you in advance to anyone who is offering advice!
Situation:
- Clients with pppoe server over a bridge
- a range of reserved IP at each speed (6 or 20 Mbps)
- Create PCQ Queue for two types of clients (6 and 20Mbps)
Not Working:
Clients with speed limitation: pcq queue with rate=6144k and burst-rate=7169k ; appear with downloads at higher speeds (14Mbps,.. 20Mbps,..)

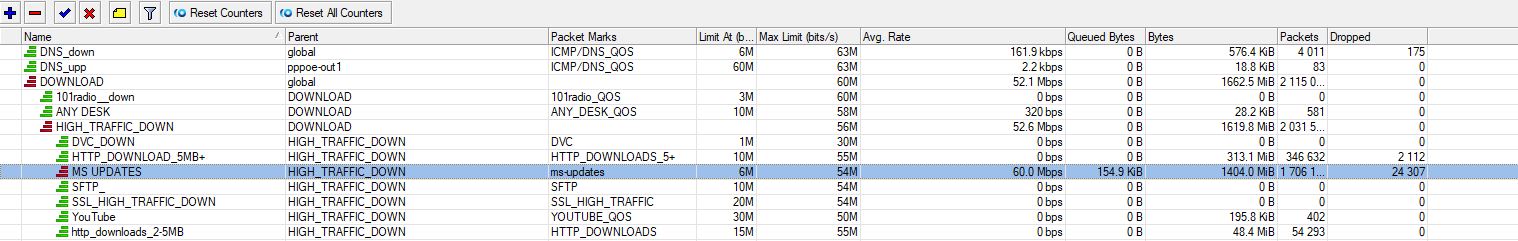

While monitoring queues traffic shows on the avg rate column
/interface bridge
add fast-forward=no name=bridgeAT
/ip pool
add name=pool_Local ranges=10.205.3.0/24
add name=pool_remote ranges=10.53.2.1-10.53.2.254
add name=pppoe_06 ranges=10.53.1.1-10.53.1.63
add name=pppoe_20 ranges=10.53.1.128/26
/ppp profile
add dns-server=8.8.8.8,8.8.4.4 local-address=pool_Local name=At remote-address=pool_remote
add change-tcp-mss=yes dns-server=8.8.8.8,8.8.4.4 name=PPPoE_20Mbps/4Mbps only-one=yes rate-limit="" remote-address=pppoe_20
add change-tcp-mss=yes dns-server=8.8.8.8,8.8.4.4 name=PPPoE_06Mbps/1Mbps only-one=yes rate-limit="" remote-address=pppoe_06
/queue type
add kind=pcq name=06M-pcq-download pcq-burst-rate=7169k pcq-burst-threshold=16 pcq-burst-time=16s pcq-classifier=dst-address pcq-rate=6144k pcq-total-limit=4200KiB
add kind=pcq name=20M-pcq-download pcq-burst-rate=21504k pcq-burst-threshold=16 pcq-burst-time=16s pcq-classifier=dst-address pcq-rate=20480k pcq-total-limit=3200KiB
/queue tree
add max-limit=60M name=Q_AT parent=bridgeAT
add name=q_06 packet-mark=Down_06 parent=Q_AT queue=06M-pcq-download
add name=q_20 packet-mark=Down_20 parent=Q_AT queue=20M-pcq-download
/interface bridge port
add bridge=bridgeAT horizon=10 hw=no interface=ether1
add bridge=bridgeAT horizon=10 hw=no interface=ether2
add bridge=bridgeAT horizon=10 hw=no interface=ether3
/interface bridge settings
set allow-fast-path=no
/ip firewall connection tracking
set enabled=yes tcp-established-timeout=1h
/ip settings
set allow-fast-path=no
/ip firewall mangle
add action=mark-connection chain=forward connection-state=new new-connection-mark=C-Down_06 passthrough=yes src-address=10.53.1.0/26
add action=mark-packet chain=forward connection-mark=C-Down_06 connection-state="" new-packet-mark=Down_06 passthrough=no
add action=mark-connection chain=forward connection-state=new new-connection-mark=C-Down_20 passthrough=yes src-address=10.53.1.128/26
add action=mark-packet chain=forward connection-mark=C-Down_20 new-packet-mark=Down_20 passthrough=no
/interface pppoe-server server
add default-profile=At disabled=no interface=bridgeAT keepalive-timeout=15 one-session-per-host=yes service-name=S-PPPoE-C
/ppp secret
add name=00011 password=00011 profile=PPPoE_06Mbps/1Mbps service=pppoe
add name=00022 password=00022 profile=PPPoE_20Mbps/4Mbps service=pppoe
