Hi Guys, this is my first post here, i checked to see if there is similar issue, but the guy from
didn't respond so no answer was provided.

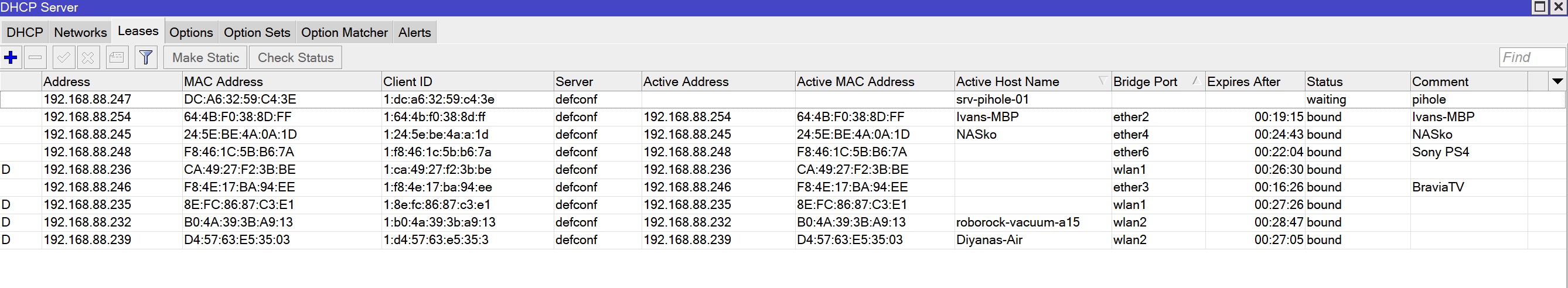

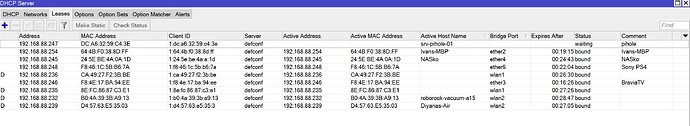

So here I am with a raspbarry pi, pihole connected on ether5 and static dhcp lease on mikrotik configured and wondering what am I doing wrong. The raspberry IS actually connected, but the MikroTik is showing dhcp lease "waiting". Here is my configuration and maybe someone can help me figure this out?
Edit: I found a solution on the raspberry pi part of the end.
relink dhcp lease!!!
sudo dhclient -r
sudo dhcclient
you can do it also automatically on reboot.
[admin@MikroTik] > /export hide-sensitive
# 2023-07-07 10:39:51 by RouterOS 7.10.1
# software id = 2WCV-9C4Y
#
# model = RB4011iGS+5HacQ2HnD
# serial number = HD808FMENW0
/interface bridge
add admin-mac=18:FD:74:C0:E0:E9 auto-mac=no comment=defconf name=bridge
/interface ethernet
set [ find default-name=sfp-sfpplus1 ] disabled=yes
/interface wireless
set [ find default-name=wlan1 ] band=5ghz-a/n/ac channel-width=20/40/80mhz-XXXX country=austria disabled=no distance=indoors frequency=auto installation=indoor mode=ap-bridge \
secondary-frequency=auto ssid="MikroTik 5" wireless-protocol=802.11
set [ find default-name=wlan2 ] band=2ghz-b/g/n channel-width=20/40mhz-XX country=austria disabled=no distance=indoors frequency=auto installation=indoor mode=ap-bridge ssid="MikroTik 2" \
wireless-protocol=802.11
/interface pppoe-client
add add-default-route=yes disabled=no interface=ether1 name=pppoe-out1 use-peer-dns=yes user=4029188000
/interface list
add comment=defconf name=WAN
add comment=defconf name=LAN
/interface wireless security-profiles
set [ find default=yes ] authentication-types=wpa2-psk mode=dynamic-keys supplicant-identity=MikroTik
/ip pool
add name=dhcp ranges=192.168.88.10-192.168.88.254
/ip dhcp-server
add address-pool=dhcp interface=bridge name=defconf
/port
set 0 name=serial0
set 1 name=serial1
/interface bridge port
add bridge=bridge comment=defconf interface=ether2
add bridge=bridge comment=defconf interface=ether3
add bridge=bridge comment=defconf interface=ether4
add bridge=bridge comment=defconf interface=ether5
add bridge=bridge comment=defconf interface=ether6
add bridge=bridge comment=defconf interface=ether7
add bridge=bridge comment=defconf interface=ether8
add bridge=bridge comment=defconf interface=ether9
add bridge=bridge comment=defconf interface=ether10
add bridge=bridge comment=defconf disabled=yes interface=sfp-sfpplus1
add bridge=bridge comment=defconf interface=wlan1
add bridge=bridge comment=defconf interface=wlan2
/ip neighbor discovery-settings
set discover-interface-list=LAN
/interface list member
add comment=defconf interface=bridge list=LAN
add interface=pppoe-out1 list=WAN
/ip address
add address=192.168.88.1/24 comment=defconf interface=bridge network=192.168.88.0
/ip dhcp-server config
set store-leases-disk=30m
/ip dhcp-server lease
add address=192.168.88.248 client-id=1:f8:46:1c:5b:b6:7a comment="Sony PS4" mac-address=F8:46:1C:5B:B6:7A server=defconf
add address=192.168.88.245 client-id=1:24:5e:be:4a:a:1d comment=NASko mac-address=24:5E:BE:4A:0A:1D server=defconf
add address=192.168.88.254 client-id=1:64:4b:f0:38:8d:ff comment=Ivans-MBP mac-address=64:4B:F0:38:8D:FF server=defconf
add address=192.168.88.247 always-broadcast=yes client-id=1:dc:a6:32:59:c4:3e comment=pihole mac-address=DC:A6:32:59:C4:3E server=defconf
add address=192.168.88.246 client-id=1:f8:4e:17:ba:94:ee comment=BraviaTV mac-address=F8:4E:17:BA:94:EE server=defconf
/ip dhcp-server network
add address=192.168.88.0/24 comment=defconf dns-server=192.168.88.247 gateway=192.168.88.1
/ip dns
set allow-remote-requests=yes servers=192.168.88.247
/ip dns static
add address=192.168.88.1 comment=defconf name=router.lan
/ip firewall filter
add action=accept chain=input comment="defconf: accept established,related,untracked" connection-state=established,related,untracked
add action=drop chain=input comment="defconf: drop invalid" connection-state=invalid
add action=accept chain=input comment="defconf: accept ICMP" protocol=icmp
add action=accept chain=input comment="defconf: accept to local loopback (for CAPsMAN)" dst-address=127.0.0.1
add action=drop chain=input comment="defconf: drop all not coming from LAN" in-interface-list=!LAN
add action=accept chain=forward comment="defconf: accept in ipsec policy" ipsec-policy=in,ipsec
add action=accept chain=forward comment="defconf: accept out ipsec policy" ipsec-policy=out,ipsec
add action=fasttrack-connection chain=forward comment="defconf: fasttrack" connection-state=established,related hw-offload=yes
add action=accept chain=forward comment="defconf: accept established,related, untracked" connection-state=established,related,untracked
add action=drop chain=forward comment="defconf: drop invalid" connection-state=invalid
add action=drop chain=forward comment="defconf: drop all from WAN not DSTNATed" connection-nat-state=!dstnat connection-state=new in-interface-list=WAN
/ip firewall nat
add action=masquerade chain=srcnat comment="defconf: masquerade" ipsec-policy=out,none out-interface=pppoe-out1 out-interface-list=WAN
add action=dst-nat chain=dstnat dst-address=!192.168.88.247 dst-port=53 protocol=udp src-address=!192.168.88.247 to-addresses=192.168.88.247
add action=dst-nat chain=dstnat dst-address=!192.168.88.247 dst-port=53 protocol=tcp src-address=!192.168.88.247 to-addresses=192.168.88.247
add action=masquerade chain=srcnat dst-address=192.168.88.247 dst-port=53 protocol=udp src-address=192.168.88.0/24
add action=masquerade chain=srcnat dst-address=192.168.88.247 dst-port=53 protocol=tcp src-address=192.168.88.0/24
/ip firewall service-port
set ftp disabled=yes
/ip service
set telnet disabled=yes
set ftp disabled=yes
/ipv6 firewall address-list
add address=::/128 comment="defconf: unspecified address" list=bad_ipv6
add address=::1/128 comment="defconf: lo" list=bad_ipv6
add address=fec0::/10 comment="defconf: site-local" list=bad_ipv6
add address=::ffff:0.0.0.0/96 comment="defconf: ipv4-mapped" list=bad_ipv6
add address=::/96 comment="defconf: ipv4 compat" list=bad_ipv6
add address=100::/64 comment="defconf: discard only " list=bad_ipv6
add address=2001:db8::/32 comment="defconf: documentation" list=bad_ipv6
add address=2001:10::/28 comment="defconf: ORCHID" list=bad_ipv6
add address=3ffe::/16 comment="defconf: 6bone" list=bad_ipv6
/ipv6 firewall filter
add action=accept chain=input comment="defconf: accept established,related,untracked" connection-state=established,related,untracked
add action=drop chain=input comment="defconf: drop invalid" connection-state=invalid
add action=accept chain=input comment="defconf: accept ICMPv6" protocol=icmpv6
add action=accept chain=input comment="defconf: accept UDP traceroute" port=33434-33534 protocol=udp
add action=accept chain=input comment="defconf: accept DHCPv6-Client prefix delegation." dst-port=546 protocol=udp src-address=fe80::/10
add action=accept chain=input comment="defconf: accept IKE" dst-port=500,4500 protocol=udp
add action=accept chain=input comment="defconf: accept ipsec AH" protocol=ipsec-ah
add action=accept chain=input comment="defconf: accept ipsec ESP" protocol=ipsec-esp
add action=accept chain=input comment="defconf: accept all that matches ipsec policy" ipsec-policy=in,ipsec
add action=drop chain=input comment="defconf: drop everything else not coming from LAN" in-interface-list=!LAN
add action=accept chain=forward comment="defconf: accept established,related,untracked" connection-state=established,related,untracked
add action=drop chain=forward comment="defconf: drop invalid" connection-state=invalid
add action=drop chain=forward comment="defconf: drop packets with bad src ipv6" src-address-list=bad_ipv6
add action=drop chain=forward comment="defconf: drop packets with bad dst ipv6" dst-address-list=bad_ipv6
add action=drop chain=forward comment="defconf: rfc4890 drop hop-limit=1" hop-limit=equal:1 protocol=icmpv6
add action=accept chain=forward comment="defconf: accept ICMPv6" protocol=icmpv6
add action=accept chain=forward comment="defconf: accept HIP" protocol=139
add action=accept chain=forward comment="defconf: accept IKE" dst-port=500,4500 protocol=udp
add action=accept chain=forward comment="defconf: accept ipsec AH" protocol=ipsec-ah
add action=accept chain=forward comment="defconf: accept ipsec ESP" protocol=ipsec-esp
add action=accept chain=forward comment="defconf: accept all that matches ipsec policy" ipsec-policy=in,ipsec
add action=drop chain=forward comment="defconf: drop everything else not coming from LAN" in-interface-list=!LAN
/system clock
set time-zone-name=Europe/Vienna
/system leds
add interface=wlan2 leds=wlan2_signal1-led,wlan2_signal2-led,wlan2_signal3-led,wlan2_signal4-led,wlan2_signal5-led type=wireless-signal-strength
add interface=wlan2 leds=wlan2_tx-led type=interface-transmit
add interface=wlan2 leds=wlan2_rx-led type=interface-receive
/system note
set show-at-login=no
/system scheduler
add disabled=yes interval=1h name=pihole on-event=":local currentDNS [/ip dns get server]\r\
\n:local piholeDNS \"192.168.88.247\"\r\
\n:local backupDNS \"1.1.1.2,1.0.0.2\"\r\
\n:local testDomain \"www.google.com\"\r\
\n\r\
\n:if (\$currentDNS = \$piholeDNS) do={\r\
\n :do {\r\
\n :resolve \$testDomain server=\$piholeDNS\r\
\n } on-error={\r\
\n /ip dns set servers=\$backupDNS\r\
\n }\r\
\n} else={\r\
\n :do {\r\
\n :resolve \$testDomain server=\$piholeDNS\r\
\n /ip dns set servers=\$piholeDNS\r\
\n } on-error={}\r\
\n}" policy=ftp,reboot,read,write,policy,test,password,sniff,sensitive,romon start-time=startup
/tool mac-server
set allowed-interface-list=LAN
/tool mac-server mac-winbox
set allowed-interface-list=LAN
[admin@MikroTik] >
