Ping times and HTTP response times on device labels

RouterOS The Dude
1

Greetings,

I am trying to add http response times and ping times devices in my “Internet” map. I want to be able to get a snapshot of ping and http response times to Internet sites like google, yahoo and a few others.

I have a ping one working by adding the following to the device label

concatenate("Ping: ", if(array_element(ping(device_property("FirstAddress")), 0) = -1, "<none>", array_element(ping(device_property("FirstAddress")), 0)), " ms ")

This seems to work pretty good.

Now I want to add http response times in ms to the label also. I know a probe can do this but I can’t seem to find any function that the probes call.
So can I

  1. Directly get http response time via a function
    or
  2. Call a probe to get the response times from a function

Thanks,
Tom

2

not working at me

concatenate("Ping: ", if(array_element(ping(device_property("FirstAddress")), 0) = -1, "<none>", array_element(ping(device_property("FirstAddress")), 0)), " ms ")
3

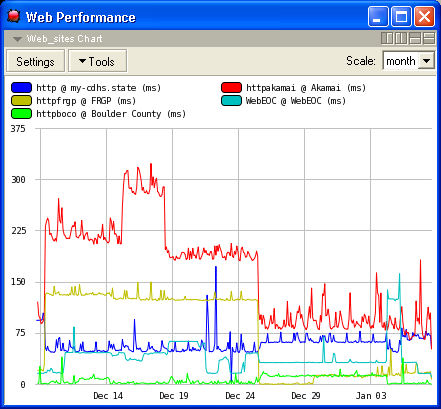

I tried to put a tcp http probe on a label and it didn’t work. Not that this works for you but I have the 5 web sites I am tracking added to a chart then I made a panel out of that chart. Note: A panel will save the legend and scale between views, a chart won’t. The downside is you have to open the panel to see how things are performing but you can see how things are working over time and have comparison.
